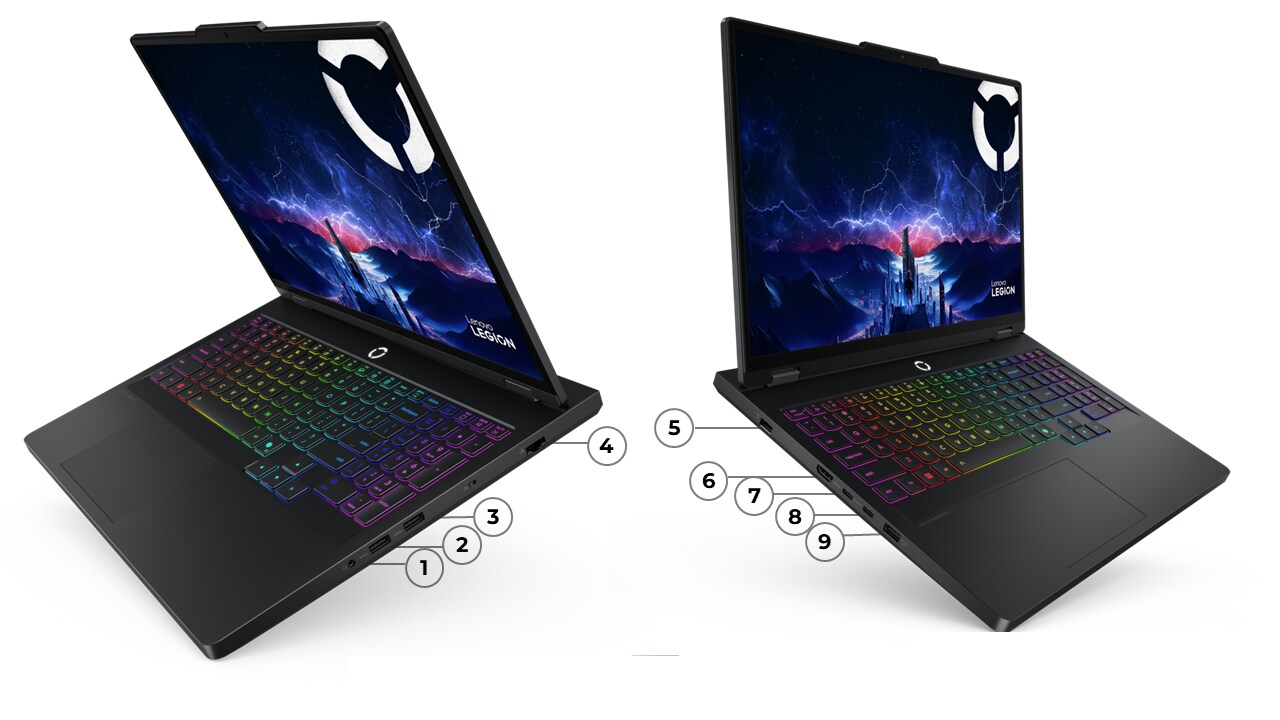

Overview
| 1. | Combo audio jack | 6. | HDMI |
| 2. | USB-A (USB 5Gbps) | 7. | USB-C (USB 10Gbps), with USB PD 65-100W & DP 2.1 |
| 3. | USB-A (USB 5Gbps) | 8. | USB-C (USB 10Gbps), with DP 1.4 |
| 4. | Ethernet (RJ-45) | 9. | USB-A (USB 10Gbps), Always On |
| 5. | Power connector |
Performance
Processor
AI (Artificial Intelligence)
Notes:
| [1] AI-Powered Gaming PCs feature Lenovo® AI Engine+ and NVIDIA® GeForce RTX™ GPUs to handle AI-driven tasks and deliver exceptional gaming performance.FeatureValue |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)
• HDMI® supports up to 8K@60Hz
• USB-C® supports up to 8K@60Hz
Notes:
| [1] For Max resolution, DSC-enabled display is required. Four external output display devices cannot be supported at the same time when displaying 8K resolution.Product |
Chipset
Memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.ProductLine Default |
Storage
Storage Support[1]
Up to two drives, 2x M.2 2280 SSD
• M.2 2280 SSD up to 1TB each
• M.2 2242 SSD up to 1TB each
Storage Type***
| Disk Type | Interface | Offering |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 512GB / 1TB |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 1TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Multi-Media
Battery
Battery
80Wh Rechargeable Li-ion Battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Special Features
Design
Display
Display
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 16" | WQXGA (2560x1600) | None | IPS[1] | 500nits | Anti-glare | 16:10 | 1200:1 | 100% DCI-P3 | 240Hz | 89° / 89° / 89° / 89° | DisplayHDR™ 400, Dolby Vision®, NVIDIA® G-SYNC®, Advanced Optimus, TÜV Low Blue Light, TÜV High Gaming Performance |
Notes:
| [1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card[2]
- Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[3]
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [2] Wi-Fi® 6 operation is subject to the regulation rules in each country.FeatureValue |
| [3] Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
| [4] Wake-on-LAN needs the power adapter plugged in.ProductLine Default |
Ports[1]
Standard Ports
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1[2]
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Power connector
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
| [2] It supports Lenovo® protocol for 140W charging but requires a unique Lenovo® adapter for operation.FeatureValue |
Docking
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit
Docking for Legion Pro 5 16IRX10
Security & Privacy
Security
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for Legion Pro 5 16IRX10.Product |
Operating Requirements
Operating Environment
Temperature[1]
At altitudes up to 2438 m (8,000 ft)
- Operating: 5°C to 35°C (41°F to 95°F)
- Storage: 5°C to 43°C (41°F to 109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] ENERGY STAR® certification is optional and only available on the models with preloaded OS. Please visit energystar.gov for more information.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
