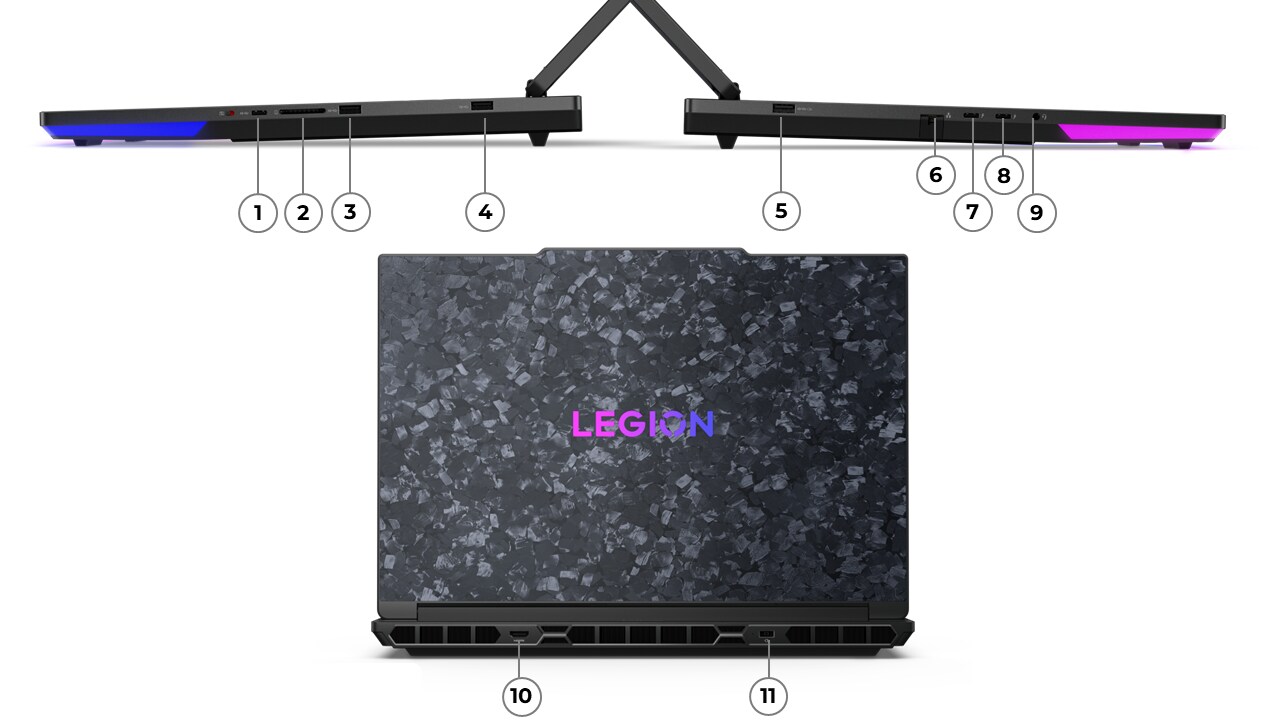

Overview
| 1. | USB-C (USB 10Gbps) | 7. | Thunderbolt 5 |
| 2. | Card reader | 8. | Thunderbolt 5 |
| 3. | USB-A (USB 10Gbps) | 9. | Headphone / microphone combo jack (3.5mm) |
| 4. | USB-A (USB 10Gbps) | 10. | HDMI |
| 5. | USB-A (USB 10Gbps), Always On | 11. | Power connector |
| 6. | Ethernet (2.5GbE RJ-45) |
Performance
Processor
AI (Artificial Intelligence)
Notes:
| [1] AI-Powered Gaming PCs feature Lenovo® AI Engine+ and NVIDIA® GeForce RTX™ GPUs to handle AI-driven tasks and deliver exceptional gaming performance.FeatureValue |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)
• HDMI® supports up to 8K@60Hz
• USB-C® supports up to 8K@60Hz
Notes:
| [1] For Max resolution, DSC-enabled display is required. Three external output display devices cannot be supported at the same time when displaying 8K resolution.Product |
Chipset
Memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.ProductLine Default |
| [2] There are more than two memory sticks installed, and the memory supports speeds of up to DDR5-4000.FeatureValue |
| [3] The memory overclock needs to be manually enabled in the BIOS, and no more than two memory sticks should be installed.FeatureValue |
Storage
Storage Type***
| Disk Type | Interface | Offering |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 2TB |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 5.0 x4 Performance | 1TB / 2TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Multi-Media
Speakers
6 stereo speakers, 2W x4 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP)
Battery
Battery
99.9Wh Rechargeable Li-ion Battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)
Max Battery Life[1]
- Models with 2D panel: MobileMark® 30@250nits: 2.5 hr Local video (1080p) playback@150nits: 4 hr
- Models with 3D panel: MobileMark® 30@250nits: 2 hr Local video (1080p) playback@150nits: 4 hr
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Special Features
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 18" | WQUXGA 2D (3840x2400) / 3D (1920x1200) | None | IPS | 500nits | Glossy | 16:10 | 1200:1 | 100% DCI-P3 | 240Hz | 89° / 89° / 89° / 89° | Dolby Vision®, DisplayHDR™ 400, NVIDIA® G-SYNC®, Advanced Optimus support, TÜV Low Blue Light, TÜV High Gaming Performance, 3D display |
| 18" | WQUXGA (3840x2400) | None | IPS | 520nits | Glossy | 16:10 | 1200:1 | 100% DCI-P3 | 240Hz | 89° / 89° / 89° / 89° | Dolby Vision®, DisplayHDR™ 400, NVIDIA® G-SYNC®, Advanced Optimus support, TÜV Low Blue Light, TÜV High Gaming Performance |
Input Device
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 95 x 150 mm (3.74 x 5.91 inches)
Mechanical
Weight[2]
| Models | Weight |
| Models with 2D display | Around 3.5 kg (7.72 lbs) |
| Models with 3D display | Around 3.75 kg (8.27 lbs) |
System Lighting
"Legion" logo with RGB lighting on top cover
RGB lighting on power button
"U" Strip RGB lighting
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®[1][2]
Intel® Killer™ Wi-Fi® 7 BE1750x, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [2] Wi-Fi® 7 operation is subject to the regulation rules in each country.Product |
| [3] Wake-on-LAN needs the power adapter plugged in.ProductLine Default |
Ports[1]
Standard Ports
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-C® (Thunderbolt™ 5 / USB4® Version 2 80Gbps), with USB PD 95-100W and DisplayPort™ 2.1[2]
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (2.5GbE RJ-45)
- 1x Card reader
- 1x Power connector
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
| [2] It supports Lenovo® protocol for 140W charging but requires a unique Lenovo® adapter for operation.FeatureValue |
Docking
Docking
Various docking solutions supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for Legion 9 18IAX10
Security & Privacy
Security
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for Legion 9 18IAX10.Product |
Operating Requirements
Operating Environment
Temperature[1]
At altitudes up to 2438 m (8,000 ft)
- Operating: 5°C to 35°C (41°F to 95°F)
- Storage: 5°C to 43°C (41°F to 109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
