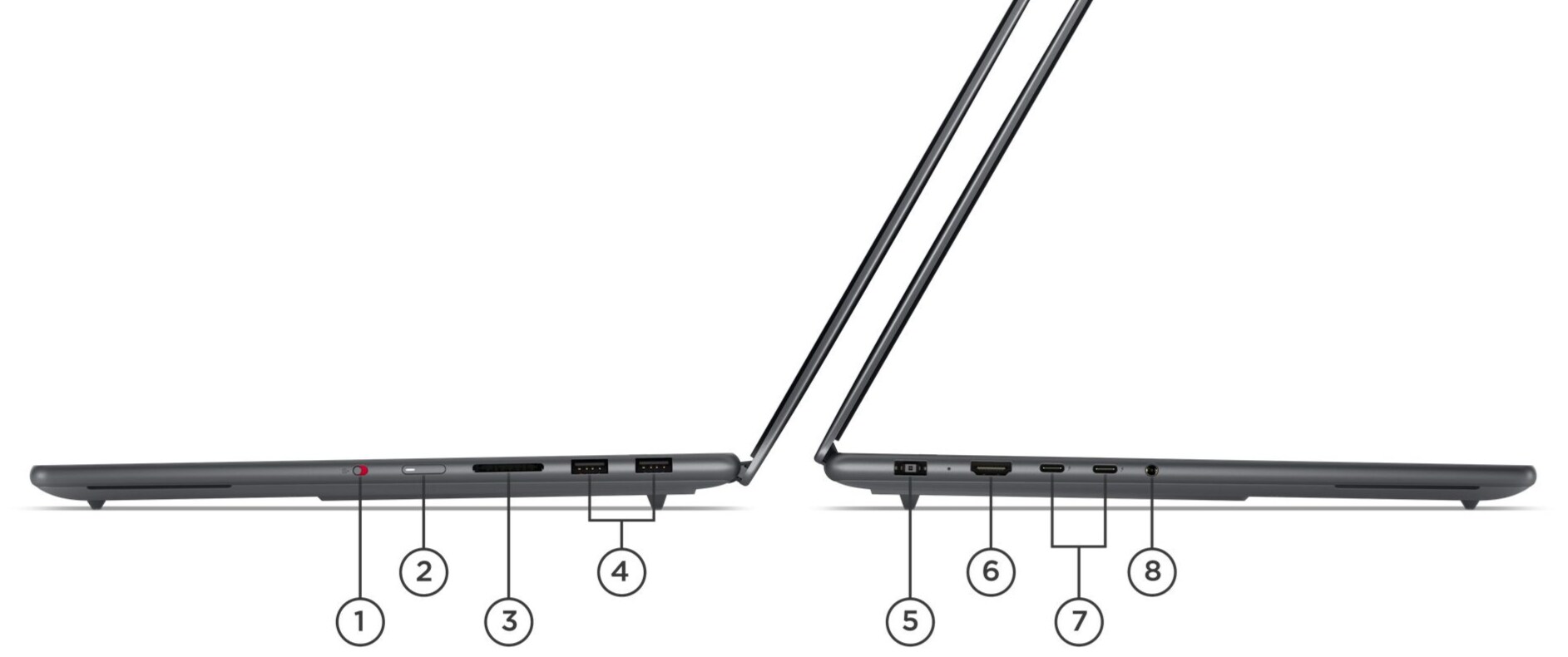

Overview
| 1. | E-shutter switch | 5. | Power connector |
| 2. | Power button | 6. | HDMI |
| 3. | SD card reader | 7. | 2x Thunderbolt 4 |
| 4. | 2x USB-A (USB 10Gbps, one Always On) | 8. | Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 7 356H | 16 (4 P-core + 8 E-core + 4 LP E-core) | 16 | P-core 1.9GHz / E-core 1.5GHz / LP E-core 1.5GHz | P-core 4.7GHz / E-core 3.5GHz / LP E-core 3.3GHz | 18MB Intel® Smart Cache | Intel® Graphics | Up to 50 TOPS |
| Core Ultra 9 386H | 16 (4 P-core + 8 E-core + 4 LP E-core) | 16 | P-core 2.1GHz / E-core 1.6GHz / LP E-core 1.6GHz | P-core 4.9GHz / E-core 3.7GHz / LP E-core 3.5GHz | 18MB Intel® Smart Cache | Intel® Graphics | Up to 50 TOPS |
AI (Artificial Intelligence)
Notes:
| [1] Copilot+ PCs have at least 16GB RAM, 256GB storage, and a NPU that runs 40+ TOPs to run the latest AI tools build-in latest Windows® 11 to accelerate productivity and creativity.FeatureValue |
Operating System
Graphics
Graphics**
| Graphics | Type | Memory | Boost Clock | TGP | AI TOPS (Peak) | Key Features |
| NVIDIA® GeForce RTX™ 5070 Laptop GPU | Discrete | 12GB GDDR7 | 2347 MHz | 100W | 798 TOPS | DLSS 4, Reflex 2, DirectX® 12 Ultimate |
| NVIDIA® GeForce RTX™ 5050 Laptop GPU | Discrete | 8GB GDDR7 | 2662 MHz | 100W | 440 TOPS | DLSS 4, Reflex 2, DirectX® 12 Ultimate |
| NVIDIA® GeForce RTX™ 5060 Laptop GPU | Discrete | 8GB GDDR7 | 2497 MHz | 100W | 572 TOPS | DLSS 4, Reflex 2, DirectX® 12 Ultimate |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, and Thunderbolt™)
• HDMI® supports up to 8K@60Hz
• Thunderbolt™ supports up to 8K@60Hz
Notes:
| [1] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.Product |
Chipset
Memory
Storage
Storage Type
| Disk Type | Interface | Offering |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 512GB / 1TB |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 5.0 x4 | 2TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
| [3] SSD Slot1 includes a M.2 2242 SSD by default, SSD Slot2 supports M.2 2242/2280.Product |
Removable Storage
Multi-Media
Speakers
6 stereo speakers, 2W x4 (dual side woofers), 2W x2 (tweeters), optimized with Dolby Atmos®, Smart Amplifier (AMP)
Sensor
Battery
Battery[1]
92.5Wh Rechargeable Li-ion Battery, supports Rapid Charge Express (get 3 hours of runtime with a 15-minute charge)
Max Battery Life[2]
- 2.8K OLED models: MobileMark® 30@250nits: 8.5 hr Local video (1080p) playback@150nits: 21 hr
- 3.2K OLED models: MobileMark® 30@250nits: 8 hr Local video (1080p) playback@150nits: 20 hr
Notes:
| [1] Rapid Charge Express is only effective in hibernates or fully shutting down the computer.Product |
| [2] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 170W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
- 245W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 16" | 2.8K WQXGA+ (2880x1800) | OGS touch | OLED | 1,100nits (HDR peak) / 500nits (SDR typical) | Glossy, anti-fingerprint | 16:10 | 1,000,000:1 | 100% P3, 99% Adobe® RGB, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, Flicker Free, DisplayHDR™ True Black 1000, Corning® Gorilla® Glass 3, ∆E<1 (Avg.) X-Rite®, TCON, Pantone® Validated, Pantone® SkinTone™ Validated |
| 16" | 3.2K (3200x2000) | OGS touch | Tandem OLED | 1,600nits (HDR peak) / 1,000nits (SDR typical) | Glossy, anti-fingerprint | 16:10 | 1,000,000:1 | 100% P3, 99% Adobe® RGB, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, Flicker Free, DisplayHDR™ True Black 1000, Corning® Gorilla® Glass 3, ∆E<1 (Avg.) X-Rite®, TCON, Pantone® Validated, Pantone® SkinTone™ Validated |
Notes:
| [1] Viewing angle over 85°Product |
Input Device
Touchpad
Buttonless glass surface multi-touch Force Pad, supports Precision TouchPad (PTP), 95 x 150 mm (3.75 x 5.91 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country. Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |
Ports[1]
Standard Ports
- 1x USB-A (USB 10Gbps), Always On
- 1x USB-A (USB 10Gbps)
- 2x Thunderbolt™ 4, with USB PD 65-100W and DisplayPort™ 2.1[2]
- 1x HDMI® 2.1, up to 8K/60Hz[3]
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD card reader (UHS-II)
- 1x Slim tip power connector
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
| [2] Supports Lenovo® protocol for 245W charging but requires a unique Lenovo® adapter for operation.FeatureValue |
| [3] HDMI® 2.1 FRL, 8K/60HzFeatureValue |
Docking
Docking
Various docking solutions supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for Yoga® Pro 9 16IPH11
Security & Privacy
Security
Service
Accessories
Bundled Accessories
Bundled Accessories***[1]
- Lenovo® Go Wireless Numeric Keypad
- Lenovo® TWS YOGA PC Edition (cosmic blue)
- Lenovo® Yoga® Tote Sleeve 16" (grey)
- Yoga® Mouse (grey)
- None
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for Yoga® Pro 9 16IPH11.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- Carbon Neutral Certified
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION "AS IS", WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
