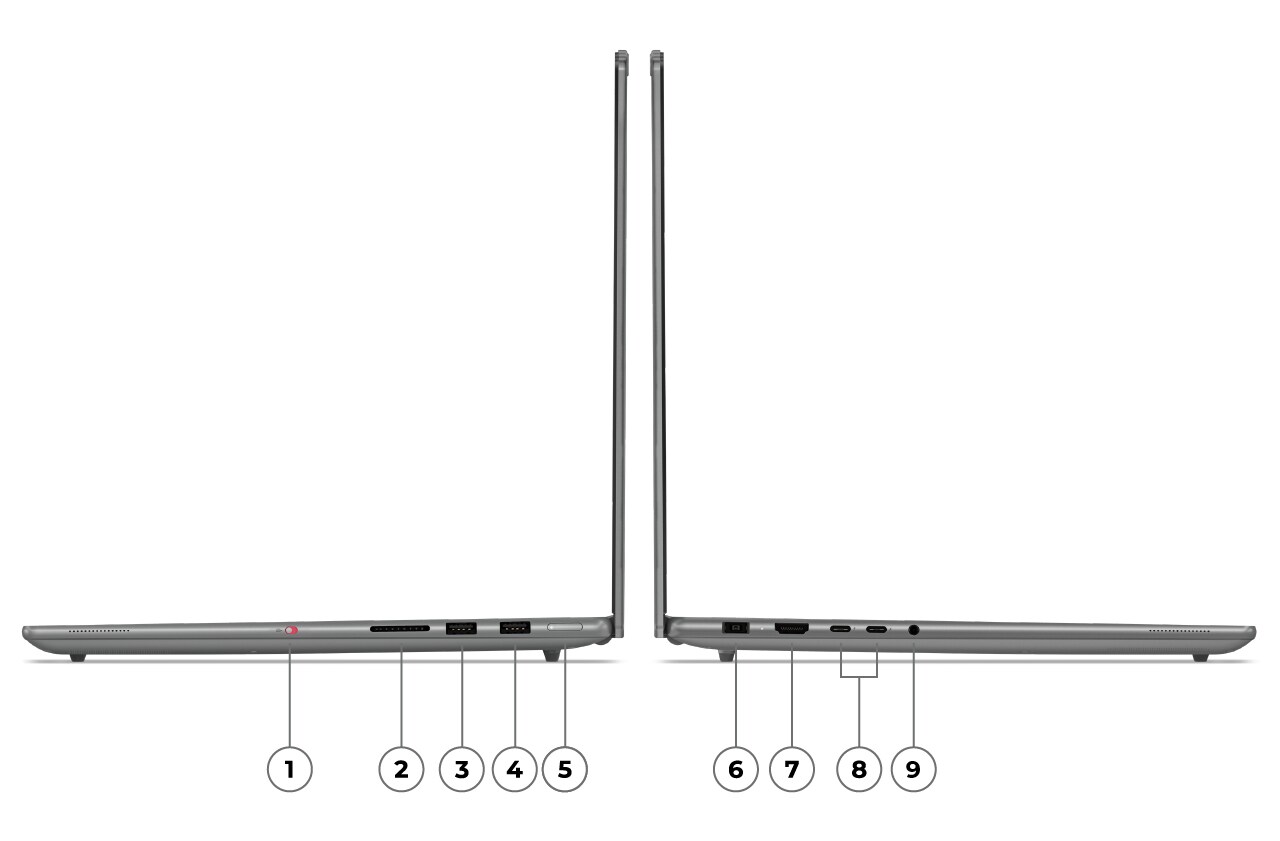

Overview
| 1. | E-shutter switch | 6. | Power connector |
| 2. | SD card reader | 7. | HDMI |
| 3. | USB-A (USB 5Gbps) | 8. | 2x Thunderbolt 4 |
| 4. | USB-A (USB 5Gbps), Always On | 9. | Headphone / microphone combo jack (3.5mm) |
| 5. | Power button |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 7 255H | 16 (6 P-core + 8 E-core + 2 LPE-core) | 16 | P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz | P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz | 24MB | Intel® Arc™ 140T GPU, up to 74 TOPS | Intel® AI Boost |
| Core Ultra 9 285H | 16 (6 P-core + 8 E-core + 2 LPE-core) | 16 | P-core 2.9GHz / E-core 2.7GHz / LPE-core 1GHz | P-core 5.4GHz / E-core 4.5GHz / LPE-core 2.5GHz | 24MB | Intel® Arc™ 140T GPU, up to 77 TOPS | Intel® AI Boost |
AI (Artificial Intelligence)
Notes:
| [1] AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft® Copilot key or using Win + C.FeatureValue |
Operating System
Graphics
Graphics**
| Graphics | Type | Memory | Boost Clock | TGP | AI TOPS (Peak) | Key Features |
| NVIDIA® GeForce RTX™ 5060 Laptop GPU | Discrete | 8GB GDDR7 | 2497 MHz | 100W | 572 TOPS | DLSS 4, Reflex 2, DirectX® 12 Ultimate |
| NVIDIA® GeForce RTX™ 5070 Laptop GPU | Discrete | 8GB GDDR7 | 2347 MHz | 100W | 798 TOPS | DLSS 4, Reflex 2, DirectX® 12 Ultimate |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, and Thunderbolt™)
• HDMI® supports up to 8K@60Hz
• Thunderbolt™ supports up to 8K@60Hz
Notes:
| [1] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.Product |
Chipset
Memory
Storage
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] The system supports dual SSD via two M.2 slots. But in some configurations, Lenovo® offers one SSD with a second slot for user expansion.Product |
| [3] SSD Slot1 includes a M.2 2242 SSD by default, SSD Slot2 optionally supports M.2 2242. If SSD Slot2 is not factory-configured with 2242, only M.2 2280 SSD is supported for user upgrades.Product |
Removable Storage
Multi-Media
Speakers
6 stereo speakers, 2W x4 (dual side woofers), 2W x2 (tweeters), optimized with Dolby Atmos®, Smart Amplifier (AMP)
Sensor
Battery
Battery
84Wh Rechargeable Li-ion Battery, supports Rapid Charge Express (get 3 hours of runtime with a 15-minute charge)
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 16" | 2.8K WQXGA+ (2880x1800) | None | OLED | 1,100nits (HDR peak) / 500nits (SDR typical) | Glossy | 16:10 | 1,000,000:1 | 100% DCI-P3, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, DisplayHDR™ True Black 1000, ∆E<1 (Avg.) X-Rite® |
| 16" | 2.8K WQXGA+ (2880x1800) | Multi-touch | OLED | 1,100nits (HDR peak) / 500nits (SDR typical) | Glossy, anti-fingerprint | 16:10 | 1,000,000:1 | 100% DCI-P3, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, DisplayHDR™ True Black 1000, AGC Dragontrail™ Glass, ∆E<1 (Avg.) X-Rite® |
| 16" | 3.2K (3200x2000) | None | OLED[2] | 1,600nits (HDR peak) / 1,000nits (SDR typical) | Glossy | 16:10 | 1,000,000:1 | 100% DCI-P3, 100% Adobe® RGB, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, DisplayHDR™ True Black 1000, ∆E<1 (Avg.) X-Rite® |
| 16" | 3.2K (3200x2000) | Multi-touch | OLED[3] | 1,600nits (HDR peak) / 1,000nits (SDR typical) | Glossy, anti-fingerprint | 16:10 | 1,000,000:1 | 100% DCI-P3, 100% Adobe® RGB, 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | PureSight Pro, Eyesafe® Certified 2.0, Dolby Vision®, DisplayHDR™ True Black 1000, AGC Dragontrail™ Glass, ∆E<1 (Avg.) X-Rite® |
Notes:
| [1] Viewing angle over 85°Product |
| [2], [3] Tandem OLEDFeatureValue |
Input Device
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 95 x 150 mm (3.75 x 5.91 inches)
Mechanical
Weight[2]
| Models | Weight |
| Models with non-touch panel | Starting at 1.92 kg (4.23 lbs) |
| Models with touch panel | Starting at 2.07 kg (4.56 lbs) |
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
Notes:
| [1] Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
Ports[1]
Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 65-100W and DisplayPort™ 2.1[2]
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD card reader
- 1x Power connector
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
| [2] It supports Lenovo® protocol for 135W charging but requires a unique Lenovo® adapter for operation.FeatureValue |
Docking
Docking
Various docking solutions are supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for Yoga® Pro 9 16IAH10
Security & Privacy
Security
Service
Accessories
Bundled Accessories
Bundled Accessories***[1]
- Lenovo® USB-C® 4-in-1 Hub Gen 2
- Lenovo® YOGA True Wireless Stereo Earbuds
- Yoga® Pro Mouse
- None
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for Yoga® Pro 9 16IAH10.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
Plastic-Free package
100% FSC-certificated Paper used in Box, and Manual
Recycled Material
50% Recycled Aluminum alloy on D cover
30% PCC Recycled Plastic used in 170W Adapter Case
30% PCC Recycled Plastic used in Speaker Enclosure
50% PCC Recycled Plastic used in Keyboard Keycap
30% PCC Recycled Plastic used in Battery Pack
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- Carbon Neutral Certified
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
