Processor
Processor Family
Intel® Core™ Ultra 5 / X7 Processor (Series 3)
Processor**
| Core Ultra 5 325 | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 1.6GHz | P-core 4.5GHz / LP E-core 3.4GHz | 12MB Intel® Smart Cache | Intel® Graphics, up to 40 TOPS | Up to 47 TOPS |
| Core Ultra 5 338H | 12 (4 P-core + 4 E-core + 4 LP E-core) | 12 | P-core 1.9GHz / E-core 1.5GHz / LP E-core 1.5GHz | P-core 4.7GHz / E-core 3.4GHz / LP E-core 3.3GHz | 18MB Intel® Smart Cache | Intel® Arc™ B370 GPU, up to 98 TOPS | Up to 47 TOPS |
| Core Ultra X7 358H | 16 (4 P-core + 8 E-core + 4 LP E-core) | 16 | P-core 1.9GHz / E-core 1.5GHz / LP E-core 1.5GHz | P-core 4.8GHz / E-core 3.5GHz / LP E-core 3.3GHz | 18MB Intel® Smart Cache | Intel® Arc™ B390 GPU, up to 122 TOPS | Up to 50 TOPS |
AI (Artificial Intelligence)
AI PC Category
Copilot+ PC
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Intel® Graphics | Integrated | Shared | 40 | 3840x2160@60Hz(HDMI®), 3840x2160@60Hz(Thunderbolt™), 3840x2160@60Hz(USB-C® with DP function) | 1x HDMI® 2.1 TMDS, 2x Thunderbolt™ 4, 2x USB-C® with DP function | DirectX® 12 Ultimate |
| Intel® Arc™ B370 GPU | Integrated | Shared | 98 | 3840x2160@60Hz(HDMI®), 3840x2160@60Hz(Thunderbolt™), 3840x2160@60Hz(USB-C® with DP function) | 1x HDMI® 2.1 TMDS, 2x Thunderbolt™ 4, 2x USB-C® with DP function | DirectX® 12 Ultimate |
| Intel® Arc™ B390 GPU | Integrated | Shared | 122 | 3840x2160@60Hz(HDMI®), 3840x2160@60Hz(Thunderbolt™), 3840x2160@60Hz(USB-C® with DP function) | 1x HDMI® 2.1 TMDS, 2x Thunderbolt™ 4, 2x USB-C® with DP function | DirectX® 12 Ultimate |
Monitor Support
Monitor Support
Supports up to 4 independent displays via onboard ports (HDMI®, USB-C® and Thunderbolt4)
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory[1]
32GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Max Storage Support[1]
One drive, up to 2TB M.2 SSD
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC3341S codec
Speakers
Single speaker, 2W x1
Microphone
Dual Microphone
Power Supply
Power Supply
| 100W | Adapter | 90% | Autosensing |
Input Device
Keyboard
- Lenovo® 800 Wireless Multi-Mode Premium Rechargeable Keyboard
- No keyboard
Mouse
- No mouse
- Lenovo® 800 Wireless Multi-Mode Premium Rechargeable Mouse
Mechanical
Dimensions (WxDxH)[1]
130 x 130 x 48.6 mm (5.12 x 5.12 x 1.913 inches)
Packaging Dimensions (WxDxH)**
- Without keyboard and mouse: 283 x 202 x 123 mm (11.4 x 7.95 x 4.84 inches)
- With keyboard and mouse: 554 x 197 x 156 mm (21.8 x 7.76 x 6.14 inches)
Weight[2]
Around 0.6 kg (1.3 lbs)
Packaging Weight**
- With keyboard and mouse: Around 2.95 kg (6.5 lbs)
- Without keyboard and mouse: Around 1.6 kg (3.53 lbs)
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
System Lighting
Lighting LED
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®[1]
Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 6.0
Onboard Ethernet
2.5GbE, 1x RJ-45
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country.
Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |

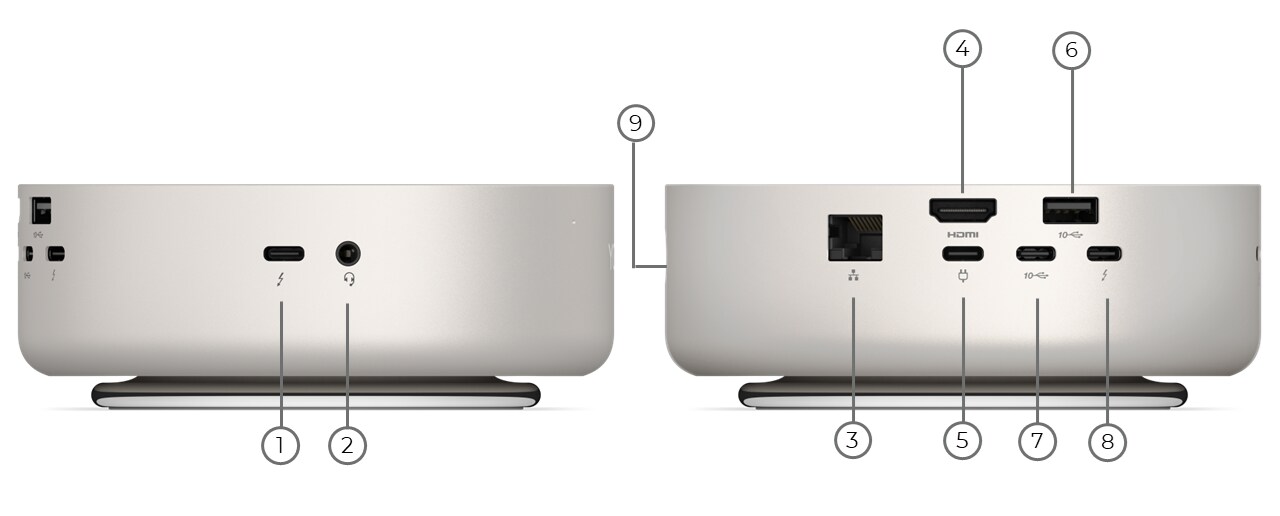

Ports[1]
Rear Ports
- 1x Thunderbolt™ 4
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x 2.5GbE Ethernet (RJ-45)
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2) with USB PD-in
Left Ports
- 1x headphone / microphone combo jack (3.5mm)
- 1x Thunderbolt™ 4
Right Ports
1x Power button with fingerprint module
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
Thunderbolt™ 5: 80 Gbit/s (bidirectional), up to 120 Gbit/s in bandwidth boost mode for video-intensive applications.StructureLevel2 |
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
Other Security
Wi-Fi® Sensing Human Presence Detection
BIOS Security
- Administrator password
- Boot sequence control
- Hard disk password
