Processor
Processor Family
Intel® Core™ Ultra 5 / 7 Processor (Series 3)
Processor**
| Core Ultra 5 325 | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 1.6GHz | P-core 4.5GHz / LP E-core 3.4GHz | 12MB Intel® Smart Cache | Intel® Graphics | Up to 47 TOPS |
| Core Ultra 7 356H | 16 (4 P-core + 8 E-core + 4 LP E-core) | 16 | P-core 1.9GHz / E-core 1.5GHz / LP E-core 1.5GHz | P-core 4.7GHz / E-core 3.5GHz / LP E-core 3.3GHz | 18MB Intel® Smart Cache | Intel® Graphics | Up to 50 TOPS |
AI (Artificial Intelligence)
AI PC Category
Copilot+ PC
NPU**
- Up to 47 TOPS
- Up to 50 TOPS
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- No preload operating system
Graphics
Graphics***
| NVIDIA® GeForce RTX™ 5060 | Discrete | 8GB GDDR7 | 3840x2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 |
| Intel® Graphics | Integrated | Shared | 3840×2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 Ultimate |
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI®
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory[1]
32GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Max Storage Support[1]
One drive, up to 1TB M.2 SSD
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC274 codec
Speakers
Stereo speakers, 5W x2 (woofers), 3W x2 (tweeters), JBL® brand
Microphone
Dual Microphone
Camera**
- 5.0-megapixel
- 5.0-megapixel IR camera
Power Supply
Power Supply**
| 135W | Adapter | 90% | 100V - 240V |
| 170W | Adapter | 90% | 100V - 240V |
| 245W | Adapter | 90% | Autosensing |
Display
Display**[1]
| 27" | QHD (2560x1440) | Multi-touch | IPS | 300nits | Anti-glare | 16:9 | 1500:1 | 99% sRGB | 120HZ | horizontal: +/- 89°, vertical: +/- 89° | 4 side like |
| 27" | QHD (2560x1440) | Non-touch | IPS | 350nits | Anti-glare | 16:9 | 1500:1 | 99% sRGB | 120HZ | horizontal: +/- 89°, vertical: +/- 89° | 4 side like |
Touchscreen
- OGM (One Glass Metal mesh) multi-touch, supports 10-point touch
- Non-touch
Notes:
| [1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.Classification Default |
Input Device
Keyboard
Euterpe Wireless Keyboard, luna grey
Mouse
Euterpe Wireless Mouse, Luna Grey
Mechanical
Form Factor
AIO (27 inches)
Dimensions (WxDxH)[1]
| Lowest Position | 613 x 235 x 495 mm (24.13 x 9.25 x 19.48 inches) |
| Highest Position | 613 x 235 x 565 mm (24.13 x 9.25 x 22.24 inches) |
Packaging Dimensions (WxDxH)
738 x 284 x 668 mm (29.05 x 11.18 x 26.29 inches)
Weight[2]
| Non-touch models | Around 7.53 kg (16.6 lbs) |
| Touch models | Around 7.9 kg (17.61 lbs) |
Packaging Weight**
- Discrete graphics models: Around 12.9 kg (28.43 lbs)
- Integrated graphics models: Around 12.56 kg (27.69 lbs)
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)
Stand
Supports -5° to +10° tilt, left & right 45° swivel, -90° to +90° pivot, up to 70mm lift
Others
- (Optional) Wireless charger 15W
- None
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®[1]
Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[2]
Onboard Ethernet
Gigabit Ethernet, 1x RJ-45
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country.
Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |
| [2] The bandwidth of WiFi 7 adapter is 160 MHz.FeatureValue |

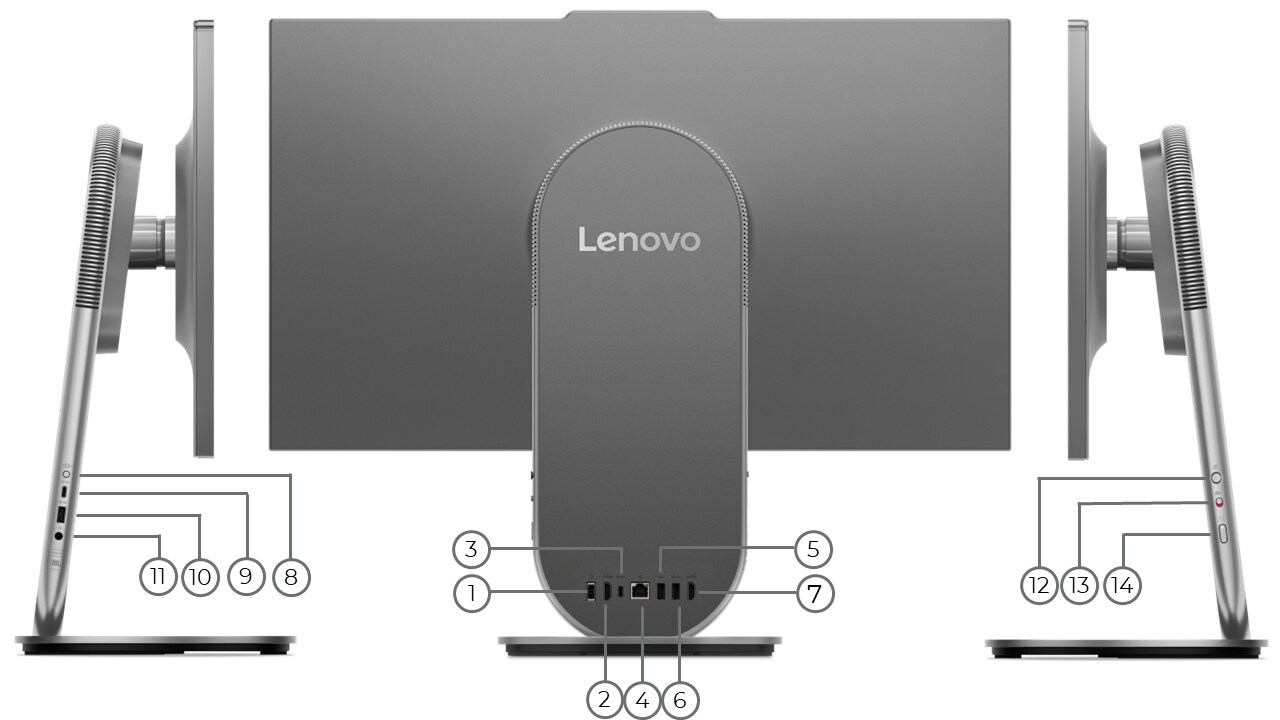

Ports[1]
Rear Ports
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (Hi-Speed USB / USB 2.0)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x HDMI®-in
- 1x Ethernet (RJ-45)
- 1x Power connector
Left Ports
- 1x Camera switch
- 1x Power button
- 1x On-Screen-Display (OSD) adjustment joystick
Right Ports
- 1x headphone / microphone combo jack (3.5mm)
- 1x Switch button
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
Thunderbolt™ 5: 80 Gbit/s (bidirectional), up to 120 Gbit/s in bandwidth boost mode for video-intensive applications.StructureLevel2 |
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
BIOS Security
- Administrator password
- Hard disk password
