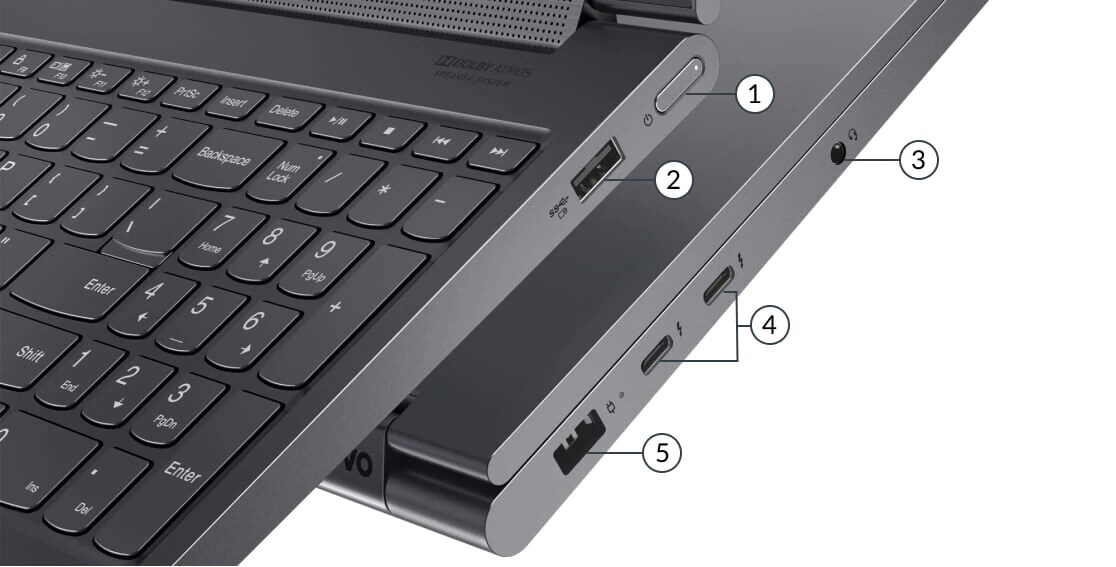

Overview
1. Power button | 4. Thunderbolt 3 |
2. USB 3.2 Gen 1 (Always On) | 5. Power connector |
3. Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i7-10750H | 6 | 12 | 2.6GHz | 5.0GHz | 12MB | DDR4-2933 | Intel UHD Graphics |
| Core i9-10980HK | 8 | 16 | 2.4GHz | 5.3GHz | 16MB | DDR4-3200 | Intel UHD Graphics |
Operating System
Operating System**
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
Graphics
Graphics
| Graphics | Type | Memory | Key Features |
| NVIDIA® GeForce GTX 1650 Ti Laptop GPU | Discrete | 4GB GDDR6 | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via Thunderbolt™)
• Thunderbolt supports up to 5120x3200@60Hz
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
One drive, up to 2TB M.2 2280 SSD, optional Intel Optane™ Memory integrated with SSD, M.2
Storage Type***
| Disk Type | Interface | RPM | Offering | Security |
| M.2 2280 SSD | PCIe NVMe®, PCIe 3.0 x4 | - | 256GB / 512GB / 1TB / 2TB | - |
| Intel Optane Memory with Solid State Storage, M.2 2280 | PCIe NVMe, PCIe 3.0 x4 | - | 32GB | - |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Sensor
Battery
Battery
Integrated Li-Polymer 69Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
Max Battery Life[1]
- FHD model: MobileMark® 2014: 13 hr Local video (1080p) playback@150nits: 14 hr
- UHD model: MobileMark 2014: 9 hr Local video (1080p) playback@150nits: 11 hr
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 15.6" | FHD (1920x1080) | Multi-touch | IPS | 500 nits | Glossy | 16:9 | - | 72% NTSC | - | VESA DisplayHDR™ 400, Dolby Vision™ |
| 15.6" | UHD (3840x2160) | Multi-touch | IPS | 500 nits | Glossy | 16:9 | - | 72% NTSC | - | VESA DisplayHDR 400, Dolby Vision |
Touchscreen
OGS (One Glass Solution) Direct Bonding, capacitive-type multi-touch, supports 10-point touch
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Multi-mode
Input Device
Pen
Lenovo Integrated Pen with built-in rechargeable battery, 4096 levels of pressure sensitivity, on-board garaged and rechargeable
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 70 x 105 mm (2.76 x 4.13 inches)
Mechanical
Notes:
- The system dimensions vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1 (Always On)
- 2x Thunderbolt 3 (support data transfer, Power Delivery, and DisplayPort™ 1.4)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
Monitor Cable
Security & Privacy
Service
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
