Panel
Panel
4-side Ultra Thin, Vertical Alignment (VA)
Max View Area
WxH: 797.2 x 333.7 mm
Pixel Pitch
0.2318 x 0.2318 mm
Dot / Pixel Per Inch
110 dpi
Contrast Ratio
- Contrast Ratio (Typical): 3000:1
- Dynamic Contrast Ratio (Typical): 3000000:1
View Angle (H / V)
Horizontal: 178°, Vertical: 178°
Response Time
- Extreme Mode: 4 ms
- Normal Mode: 6 ms
Color Gamut
- Coverage Ratio: 99% sRGB (CIE 1931)
- Coverage Ratio: 99% BT.709 (CIE 1931)
Color Support
16.7 Million
Screen Surface Treatment
Anti-glare
Operating System
Operating System
- Windows® 11 Support
- Windows® 10 Support
Multi-Media
Camera
- ThinkVision® VoIP Stack MC60 monitor webcam (For models 64AEGAR1 and 64AEGAT1)
- No bundled webcam (Support ThinkVision® VoIP Stack MC60 Monitor Webcam, sold separately)
Speakers
No Sperakers (Support MS30 Monitor Soundbar, sold separately)
Power Supply
Power Consumption
- Typical / Max: 30W / 200W
- Sleep / Off mode: <0.5W
- Switch-off Mode: <0.3W
- Energy Star Power On: 25.6W
- Energy Star TEC: 82kWh
- Internal Power Supply
Voltage Required
AC 100 to 240 V (50-60Hz)
Special Features
Special Features
- HDR10 Compliance
- Lenovo® Accessories and Display Manager
Lenovo® Accessories and Display Manager supports Windows® 10 & 11, Mac OS, and Windows® On Arm (functions vary across systems).
Lenovo® Accessories and Display Manager is formerly Lenovo® Display Control Center.
- LDFM (Lenovo® Display Fleet Manager )
- Natural Low Blue Light
- Smart Power
Mechanical
ThinkCentre® M Series Support
To support Tiny devices, an additional ThinkCentre® Tiny Mounting Kit (PN:4XF1R07369) is required (sold separately).
Bezel Width
- Side: 2.0mm
- Top: 2.0mm
- Bottom: 12.2mm
Dimensions (WxDxH)[1]
| Highest Position | 806.1 x 220.0 x 545.4 mm (31.74 x 8.66 x 21.47 inches) |
| Head Only | 806.1 x 114.7 x 356.5 mm (31.74 x 4.52 x 14.04 inches) |
| Lowest Position | 806.1 x 220.0 x 390.4 mm (31.74 x 8.66 x 15.37 inches) |
Packaging Dimensions (WxDxH)
980.0 x 186.0 x 495.0 mm (38.58 x 7.32 x 19.49 inches)
Weight[2]
| Monitor With Stand | 9.2 kg (20.3 lbs) |
| Monitor Head Only | 6.4 kg (14.1 lbs) |
Packaging Weight
13.7 kg (30.3 lbs)
Mounting
Supports VESA mount 100 x 100 mm
Stand
Supports -5° to +23.5° tilt, left & right 45 swivel, up to 155mm lift
In the Box
- Monitor with stand
- 1x DP cable (1.8m)
- 1x USB-C® to USB-C® cable (1.8m)
- 1x Power cable (1.8m)
- ThinkVision® VoIP Stack MC60 monitor webcam (For models 64AEGAR1 and 64AEGAT1)
- 1x Quick setup guide
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet
Support 10M / 100M / 1000M

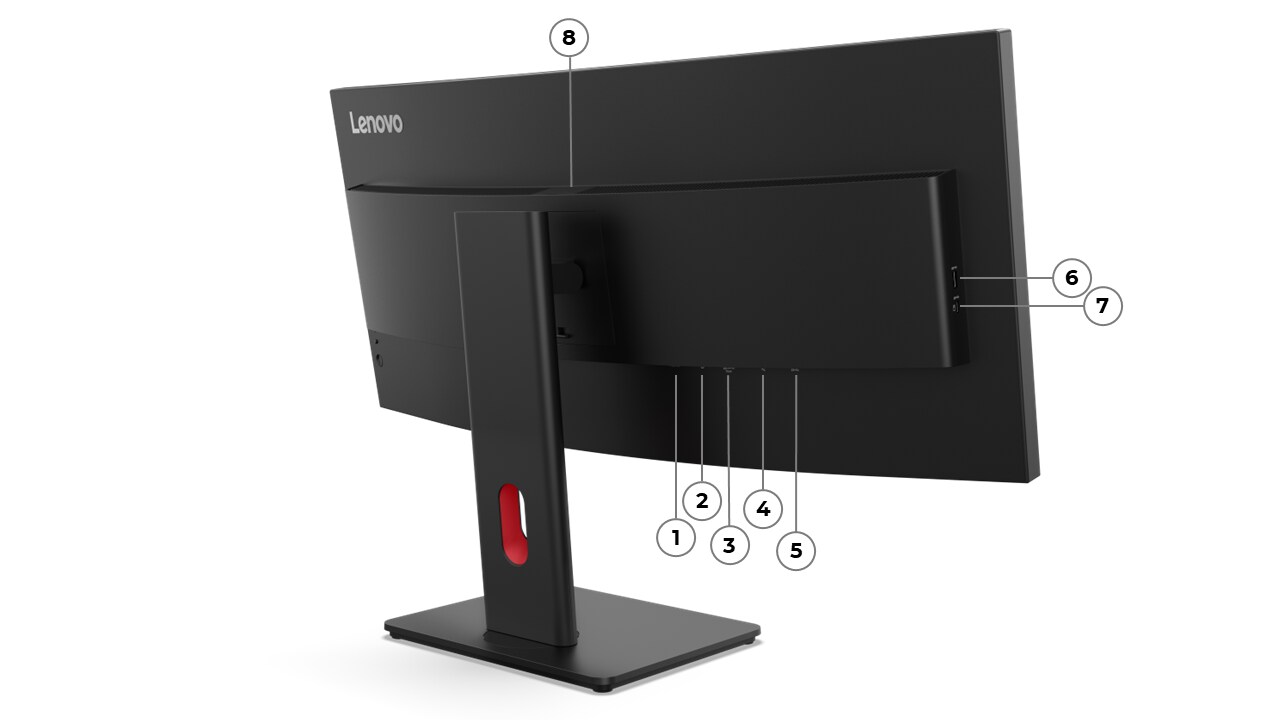

Ports[1]
Rear Ports
- 1x USB-C® (USB 5Gbps / 3.2 Gen 1) with USB PD 3.0 100W and DisplayPort™ 1.4 Alt Mode HBR2, USB upstream
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with 15W PD, data transfer only, USB downstream
- 3x USB-A (USB 5Gbps / USB 3.2 Gen 1), USB downstream
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4 (HBR2)
- 1x Ethernet (RJ-45)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security
Physical Locks
Kensington® Security Slot™ (2.5 mm x 6 mm)
