Panel
Panel
4-side Ultra Thin, In-Plane Switching
Max View Area
- Scree Dimension: 608.8 x 352.4 mm
- Active Area: 596.7 x 335.7 mm
Pixel Pitch
0.1554 x 0.1554 mm
Dot / Pixel Per Inch
163 dpi
Contrast Ratio
- Contrast Ratio (Typical): 1500:1
- Dynamic Contrast Ratio (Typical): 3000000:1
View Angle (H / V)
Horizontal: 178°, Vertical: 178°
Response Time
- Extreme Mode: 4 ms
- Normal Mode: 6 ms
Color Gamut
- Coverage Ratio: 99% sRGB (CIE 1931)
- Coverage Ratio: 99% BT.709 (CIE 1931)
Color Support
1.07 Billion
Color Depth
10-bit (8-bit+FRC)
Screen Surface Treatment
Anti-glare
Operating System
Operating System
- Windows® 11 Support
- Windows® 10 Support
Multi-Media
Camera
- ThinkVision® VoIP Stack MC60 monitor webcam (For models 64ADZAR1 and 64ADZAT1)
- No bundled webcam (Support ThinkVision® VoIP Stack MC60 Monitor Webcam, sold separately)
Speakers
Optional Modular Soundbar support (MS30 Monitor Soundbar)
Power Supply
Power Consumption
- Typical / Max: 18W / 175W
- Sleep / Off mode: <0.5W
- Switch-off Mode: <0.3W
- Energy Star Power On: 17.9W
- Energy Star TEC: 60.4kWh
- Internal Power Supply
Voltage Required
AC 100 to 240 V (50-60Hz)
Special Features
Special Features
- HDR10 Compliance
- Lenovo® ThinkColour (Lenovo® Accessories and Display Manager) Support
Lenovo® ThinkColour supports Windows® 10 & 11, Mac OS (functions vary across systems).
Lenovo® Accessories and Display Manager is formerly Lenovo® Display Control Center.
- LDFM (Lenovo® Display Fleet Manager )
- Natural Low Blue Light
- Smart Power
Mechanical
ThinkCentre® M Series Support
To support Tiny devices, an additional ThinkCentre® Tiny Mounting Kit (PN:4XF1R07369) is required (sold separately).
Bezel Width
- Side: 2.0mm
- Top: 2.0mm
- Bottom: 11.5mm
Dimensions (WxDxH)[1]
| Lowest Position | 613.4 x 195.0 x 384.1 mm (24.15 x 7.68 x 15.12 inches) |
| Highest Position | 613.4 x 195.0 x 539.1mm (24.15 x 7.68 x 21.22 inches) |
| Head Only | 613.4 x 46.0 x 357.0 mm (24.15 x 1.81 x 14.06 inches) |
Packaging Dimensions (WxDxH)
693.0 x 150.0 x 422.0 mm (27.28 x 5.91 x 16.61 inches)
Weight[2]
| Monitor With Stand | 6.7 kg (14.8 lbs) |
| Monitor Head Only | 4.5 kg (9.9 lbs) |
Packaging Weight
9.3 kg (20.5 lbs)
Mounting
Supports VESA mount 100 x 100 mm
Stand
Supports -5° to +23.5° tilt, left & right 45 swivel, -90° to +90° pivot, up to 155mm lift
In the Box
- Monitor with stand
- 1x DP 1.4 cable (1.8m)
- 1x USB-C® to USB-C® cable (1.5m, 10Gbps)
- 1x Power cable (1.8m)
- Quick setup guide
- Warranty booklet
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet
Support 10M / 100M / 1000M

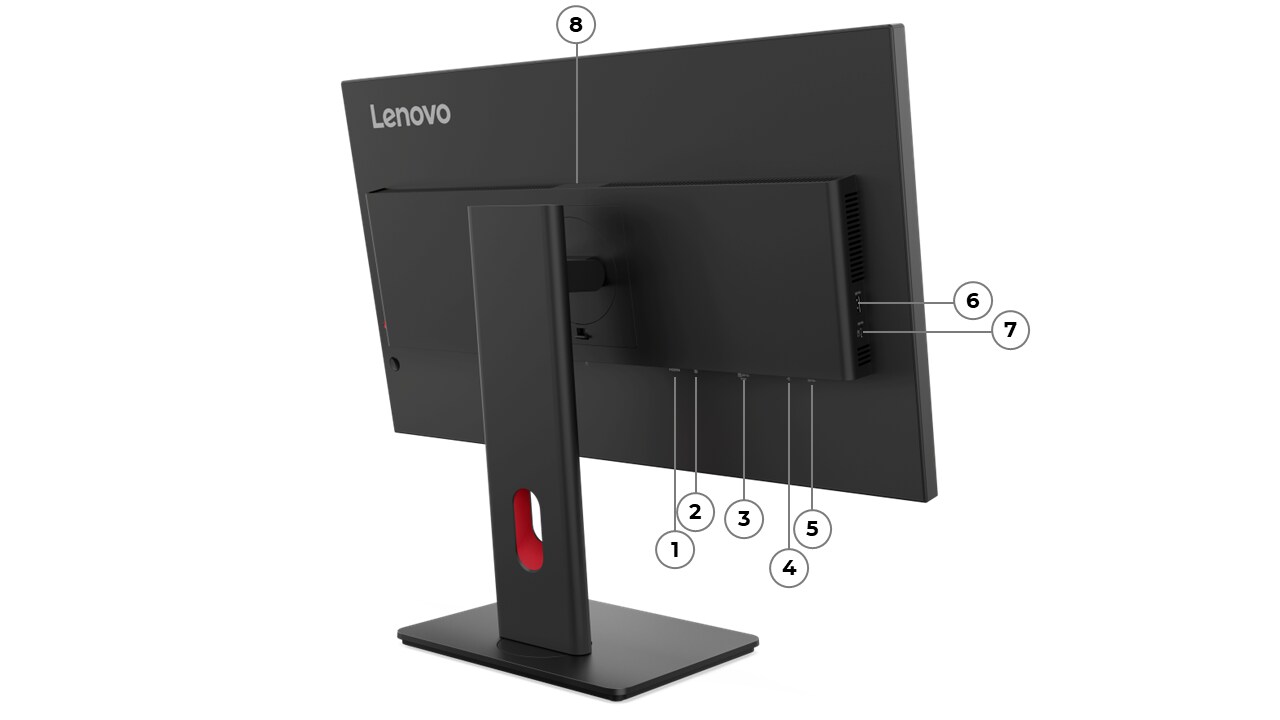

Ports[1]
Rear Ports[2]
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2) with USB PD 3.0 100W and DisplayPort™ 1.4 Alt Mode HBR3, USB upstream[3]
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with 15W PD, data transfer only, USB downstream
- 3x USB-A (USB 5Gbps / USB 3.2 Gen 1, 1x BC 1.2), USB downstream
- 1x HDMI® 2.1 TMDS, supports 3840x2160@60Hz
- 1x DisplayPort™ 1.4 (HBR3), supports max.bandwidth 32.4Gbps
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
| [2] Listed are maximum capacity of power delivery. Actual capacity of power delivery may vary depending upon devices connected or monitor configuration, and may decline with downstream USB ports connected or higher brightness setting.Product |
| [3] The output rating (100W, 20V/5A) is designed based on the Lenovo® VDM developed by Lenovo®. This product can achieve the output rating (100W, 20V/5A) when it connects products that support Lenovo® VDM developed by Lenovo®FeatureValue |
Security
Physical Locks
Kensington® Security Slot™ (2.5 mm x 6 mm)
