Panel
Panel
3-side NearEdgeless, In-Plane Switching
Max View Area
- Active Area: 597.7 x 335.7 mm
- Screen Dimension: 608.8 x 352.4 mm
Pixel Pitch
0.0777 x 0.2331 mm
Dot / Pixel Per Inch
109 dpi
Contrast Ratio
- Contrast Ratio (Typical): 1500:1
- Dynamic Contrast Ratio (Typical): 3000000:1
View Angle (H / V)
Horizontal: 178°, Vertical: 178°
Response Time
- Extreme Mode: 4 ms
- Normal Mode: 6 ms
Color Gamut
- Coverage Ratio: 99% sRGB (CIE 1931)
- Coverage Ratio: 99% BT.709 (CIE 1931)
Color Support
16.7 Million
Screen Surface Treatment
Anti-glare
Operating System
Operating System
- Windows® 11 Support
- Windows® 10 Support
Multi-Media
Camera
Integrated webcam, 5.0-megapixel, IR + RGB
Microphone
Integrated microphone
Speakers
Integrated Speakers, 5W x2
Power Supply
Power Consumption
- Typical / Max: 23.4W / 173W
- Sleep / Off mode: <0.5W
- Switch-off Mode: <0.3W
- Energy Star Power On: 20.4W
- Energy Star TEC: 67.1kWh
- Internal Power Supply
Voltage Required
AC 100 to 240 V (50-60Hz)
Special Features
Special Features
- AI Feature (Smart Face Framing, Multi-person Detection, Smart Volume Control)
- Conference Indicator
- LADM (Lenovo® Accessories and Display Manager)
Lenovo® Accessories and Display Manager supports Windows® 10 & 11, Mac OS (functions vary across systems).
Lenovo® Accessories and Display Manager is formerly Lenovo® Display Control Center.
- LDFM (Lenovo® Display Fleet Manager)
- Mirrored Power Button
- Natural Low Blue Light
- Smart Power
- Smart Sensor (Auto Ambient Brightness Sensor, Human Detection Sensor)
- Windows® Hello
Mechanical
ThinkCentre® M Series Support
To support Tiny devices, an additional ThinkCentre® Tiny Mounting Kit (PN:4XF1R07369) is required (sold separately).
Bezel Width
- Side: 2.0mm
- Top: 2.0mm
- Bottom: 41.6mm
Dimensions (WxDxH)[1]
| Highest Position | 613.6 x 200 x 584.2 mm (24.16 x 7.87 x 23.00 inches) |
| Lowest Position | 613.6 x 200.0 x 429.2 mm (24.16 x 7.87 x 16.90 inches) |
| Head Only | 613.6 x 50.0 x 404.8 mm (24.16 x 1.97 x 15.94 inches) |
Packaging Dimensions (WxDxH)
782.0 x 132.0 x 480.0 mm (30.79 x 5.20 x 18.90 inches)
Weight[2]
| Monitor With Stand | 7.2 kg (15.9 lbs) |
| Monitor Head Only | 5.0 kg (11.0 lbs) |
Packaging Weight
10.5 kg (23.1 lbs)
Mounting
Supports VESA mount 100 x 100 mm
Stand
Supports -5° to +23.5° tilt, left & right 45° swivel, -90° to +90° pivot, up to 155mm lift
In the Box
- Monitor with stand
- 1x DP 1.4 cable (1.8m)
- 1x USB-C® to USB-C® Gen 1 cable (1.8m)
- 1x Power cable (1.8m)
- Quick setup guide
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet
Gigabit Ethernet, 1x RJ-45
Ports[1]

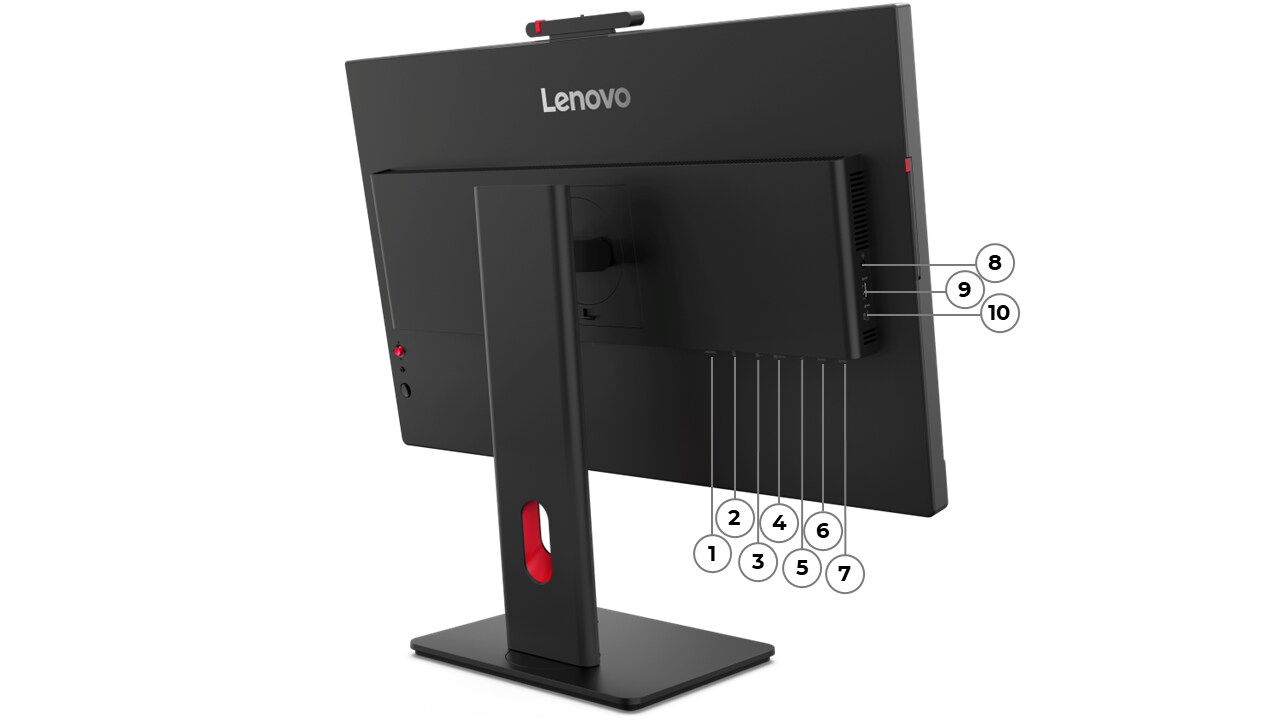

Rear Ports
- 1x USB-C® (USB 5Gbps / 3.2 Gen 1) with USB PD 3.0 up to 100W and DisplayPort™ 1.4 Alt Mode HBR2, USB upstream
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1) with up to 15W PD, data transfer only, USB downstream
- 3x USB-A (USB 5Gbps / USB 3.2 Gen 1, 1x BC 1.2), USB downstream
- 1x HDMI® 2.1 TMDS, supports 2560x1440@120Hz
- 1x DisplayPort™ 1.4 (HBR2), supports max.bandwidth 21.6Gbps
- 1x DisplayPort™ 1.4 (Out)
- 1x Ethernet (RJ-45)
- 1x audio-combo (3.5mm, In/Out)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security
Physical Locks
Kensington® Nano Security Slot™ (2.5 mm x 6 mm)
