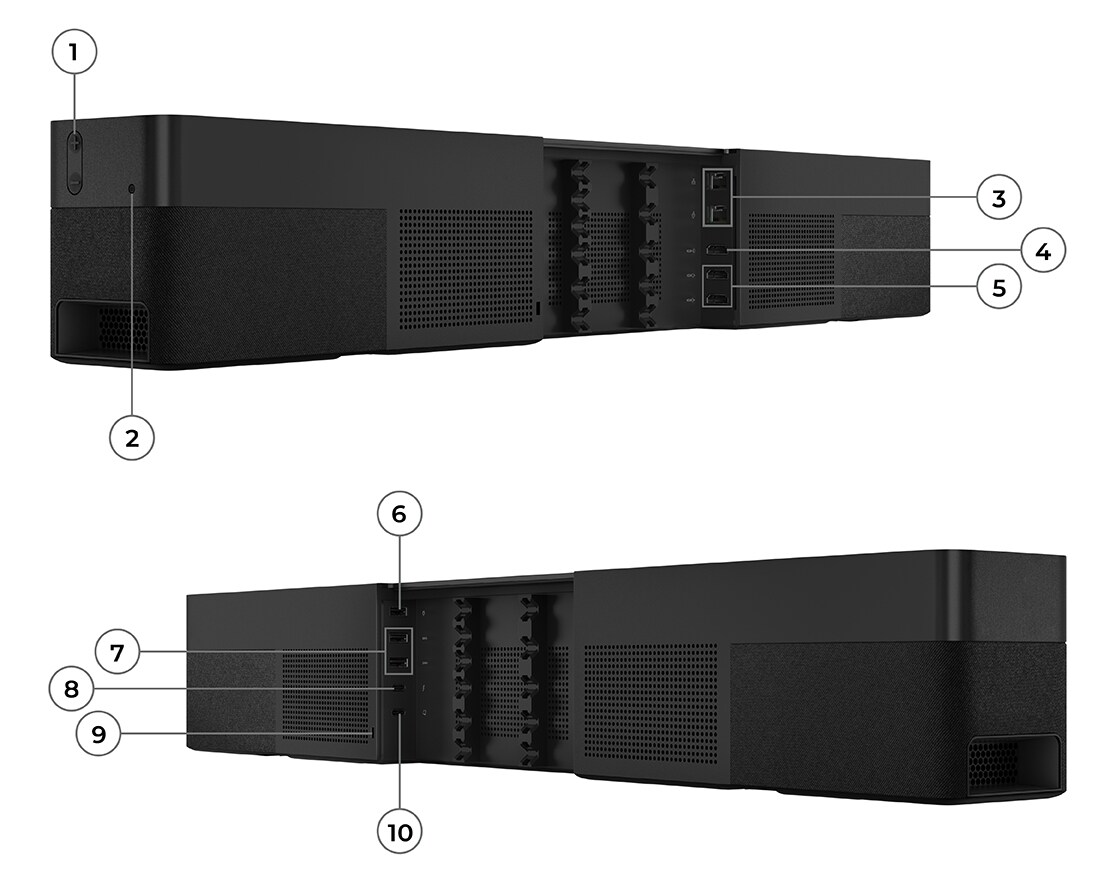

Overview
1. Volume control toggle | 6. DC-in |
2. Headphone / microphone combo jack (3.5mm) | 7. 2x USB 3.2 Gen 1 |
3. 2x Ethernet (RJ-45) | 8. USB-C 3.2 Gen 1 |
4. HDMI-in | 9. Kensington MiniSaver lock slot |
5. 2x HDMI-out | 10. USB-C 2.0 (for ThinkSmart Controller) |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i5-1145G7E | 4 | 8 | 1.5GHz | 4.1GHz | 8MB | DDR4-3200 | Intel Iris® Xe Graphics |
Operating System
Graphics
Graphics
| Graphics | Type | Memory | Connector | Max Resolution |
| Intel Iris Xe Graphics | Integrated | Shared | 2x HDMI® | 4096x2304@30Hz(HDMI) |
Monitor Support
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Multi-Media
Camera
Field of View:
- 103 degree (D) / 90 degree (H) / 59 degree (V)
- 78 degree (D) / 68 degree (H) / 42 degree (V)
- 65 degree (D) / 56 degree (H) / 33 degree (V)
Power Supply
Design
Mechanical
ThinkSmart™ Kit**
| Component Name | Ports | Dimensions | Weight | Key Features |
| Lenovo IP Controller | • 1x Gigabit Ethernet (RJ-45) • 1x Kensington® Security Slot™ • 1x HDMI-in • 1x Power Connector (on Link Box) • 1x Gigabit Ethernet (RJ-45, on Link Box) • 1x HDMI out (on Link Box) • 1x USB-B (on Link Box) | Width: 248 mm (9.76 inches) Height: 100 mm (3.94 inches) Depth: 151 mm (5.94 inches) Width: 210 mm (8.27 inches) (Link Box) Height: 27 mm (1.06 inches) (Link Box) Depth: 96 mm (3.78 inches) (Link Box) | Around 0.97 kg (2.16 lb) Around 212g (0.46 lb) (Link Box) | • 10.1" Display • HD (1280x800) • 360 nits brightness • 16:10 aspect ratio • Anti-Fingerprint • 10-point touch • IR sensors for motion detection, up to 3 meters distance and 90° angle • Wall mountable (For wall mounting, mount kits are needed. The kits are sold separately and coming soon) |
| ThinkSmart Controller | • 1x USB-C® (connect to compute unit, 10m USB-C cable incluided) • 1x 3.5mm headphone / mic combo jack • 1x Kensington Security Slot | Width: 265.5 mm (10.5 inches) Height: 168.1 mm (6.6 inches) Depth: 13 mm (0.5 inches), 83.3 mm (3.3 inches) with the stand | Around 753.8 g (1.67 lb) | • 10.1" Display • HD (1280x800) • Up to 340 nits brightness • 16:10 aspect ratio • Anti-Fingerprint, Anti-Glare • 30° or 60° rotatable • 10-point touch • IR sensors for motion detection, up to 3 meters distance and 90° angle |
LED indicators**
- LED Clock on right bottom
- LED RGB Light bar, indicates power and communication states
Dimensions (WxDxH)[1]
| Models | Dimensions |
| ThinkSmart One (Bar Only) | 700 x 89 x 110 mm (27.56 x 3.5 x 4.33 inches) |
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Rear Ports
- 1x HDMI-in
- 1x USB-C 2.0 (display only)
- 1x USB-C 3.2 Gen 1
- 2x USB 3.2 Gen 1
- 2x Ethernet (one supports POE, one with vPro®)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Manageability
Service
Warranty[1]
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Software
- This is a telepresence technology product.
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
