Processor
Processor Family
Intel® V Series Core Ultra 5 / 7 Processor (Series 2)
Processor**
| Core Ultra 5 226V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.5GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 5 228V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.5GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 5 238V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.7GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 7 258V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.2GHz / LPE-core 2.2GHz | P-core 4.8GHz / LPE-core 3.7GHz | 12MB | Intel® Arc™ Graphics 140V, up to 64 TOPS | Intel® AI Boost |
| Core Ultra 7 268V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.2GHz / LPE-core 2.2GHz | P-core 5GHz / LPE-core 3.7GHz | 12MB | Intel® Arc™ Graphics 140V, up to 66 TOPS | Intel® AI Boost |
AI (Artificial Intelligence)
AI PC Category
Copilot+ PC[1]
AI Performance
Up to 118 overall TOPS
NPU
Integrated Intel® AI Boost, up to 48 TOPS
Notes:
| [1] Copilot+ PCs have at least 16GB RAM, 256GB storage, and a NPU that runs 40+ TOPs to run the latest AI tools build-in latest Windows® 11 to accelerate productivity and creativity.FeatureValue |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Ubuntu Linux[1]
- Linux[2]
- No preload operating system
Notes:
| [1], [2] Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.FeatureValue |
Graphics
Graphics**
| Intel® Arc™ Graphics 130V | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Arc™ Graphics 140V | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
Monitor Support
Monitor Support[1]
Supports up to 3 independent displays (native display and 2 external monitors via HDMI® and Thunderbolt™)
• HDMI® supports up to 4K@60Hz
• Thunderbolt™ supports up to 8K@60Hz[2]
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
| [2] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.FeatureValue |
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory
- 16GB soldered memory, not upgradable
- 32GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Memory Type
LPDDR5x-8533, MoP (Memory on Package) memory
Storage
Max Storage Support[1]
One drive, up to 2TB M.2 2242 SSD
Storage Slot
One M.2 2242 PCIe® 4.0 x4 slot
Storage Type
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 256GB / 512GB / 1TB / 2TB | Opal 2.0 |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Cirrus Logic® CS42L43
Speakers
Stereo speakers, 2W x2 woofers and 2W x2 tweeters, Dolby Atmos®
Microphone
Dual-microphone array with smart noise-cancelling
Camera
UHD 8.0MP with large sensor + IR discrete, with E-shutter, ToF sensor, MIPI, fixed focus
Sensor
Battery
Battery
80Wh Rechargeable Li-ion Battery
Battery Life[1]
Configuration 1
MobileMark® 30: up to 21.18 hr @250nits
JEITA-BAT 3.0 (Video/Idle): up to 26.85 hr / 26.88 hr @200nits
Local video playback: up to 29.55 hr @150nits
Configuration 2
MobileMark® 30: up to 21 hr @250nits
JEITA-BAT 3.0 (Video/Idle): up to 24.58 hr / 27.42 hr @200nits
Local video playback: up to 29.72 hr @150nits
Configuration 3
MobileMark® 30: up to 20.11 hr @250nits
JEITA-BAT 3.0 (Video/Idle): up to 22.01 hr / 23.81 hr @200nits
Local video playback: up to 28.42 hr @150nits
Notes:
| [1] Configuration 1: WQXGA+ (non-touch), Intel® Ultra 5 226V, 16GB LPDDR5x, Win 11, 80Wh battery, best power efficiency power mode
Configuration 2: WQXGA+ (touch), Intel® Ultra 7 258V, 32GB LPDDR5x, Win 11, 80Wh battery, best power efficiency power mode
Configuration 3: WQXGA+ (touch), Intel® Ultra 7 268V, 32GB LPDDR5x, Win 11, 80Wh battery, best power efficiency power mode
All battery life claims are approximate maximum and based on results using MobileMark® 30, JEITA 3.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests.
Actual battery life will vary and depends on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness.
The maximum capacity of the battery will decrease with time, ambient temperature and use.
Refer to Microsoft® link for more information about the Windows® Performance power slider.Product |
Power Adapter
Power Adapter**[1]
- 65W USB-C® nano GaN (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® nano GaN (3-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim GaN (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim GaN (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter[2]
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
| [2] No power adapter is for special bid only.FeatureValue |
Display
Display**
| 15.3" | 2.8K WQXGA+ (2880x1800) | Multi-touch | OLED | 500nits | Anti-reflection, anti-fingerprint | 16:10 | 100,000:1 | 100% DCI-P3 | 30-120Hz VRR | 85° / 85° / 85° / 85° | Eye Comfort Certification (5-star), Dolby Vision®, DisplayHDR™ True Black 600, X-Rite® |
| 15.3" | 2.8K WQXGA+ (2880x1800) | None | OLED | 500nits | Anti-reflection, anti-fingerprint | 16:10 | 100,000:1 | 100% DCI-P3 | 30-120Hz VRR | 85° / 85° / 85° / 85° | Eye Comfort Certification (5-star), Dolby Vision®, DisplayHDR™ True Black 600, X-Rite® |
Color Calibration
X-Rite® factory color calibration
Touchscreen
- Add-on Film Touch, supports 10-point touch
- Non-touch
Input Device
Keyboard
6-row, spill-resistant, multimedia Fn keys, Copilot key
Keyboard Backlight
LED backlight
Touchpad**
- Buttonless glass surface multi-touch TrackPad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches)
- Buttonless glass surface multi-touch Haptic Touchpad, supports Precision TouchPad (PTP), 80 x 135 mm (3.15 x 5.31 inches)
Mechanical
Dimensions (WxDxH)[1]
339.55 x 228.5 x 12.9 mm (13.37 x 9.0 x 0.51 inches)
Weight[2]
Starting at 1.4 kg (3.08 lbs)
Case Material
Aluminium (top), aluminium (bottom)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®[1]
Intel® Wi-Fi® 7 BE201, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4[2]
SIM Card
No physical SIM card inbox
Ethernet
No onboard Ethernet[3]
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [2] Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
| [3] Ethernet support via optional Lenovo® USB-C® to Ethernet Adapter.FeatureValue |

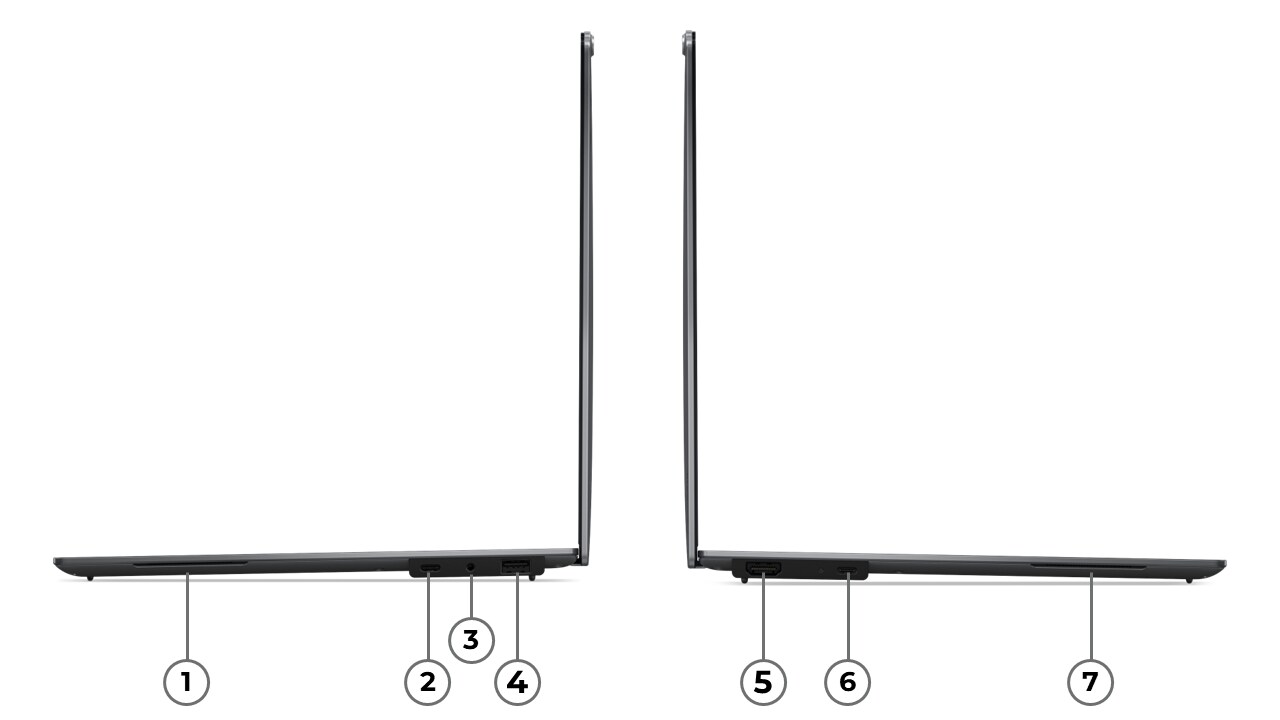

Ports[1]
Standard Ports
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Smart Card Reader
No smart card reader
Fingerprint Reader
Touch style fingerprint reader integrated in power button, match-on-chip
BIOS Security
- NVMe® password
- Power-on password
- Supervisor password
- System management password
- Certificate-based BIOS authentication
- FIDO (Fast Identity Online) authentication
- Self-healing BIOS
- More BIOS security features, please visit BIOS Simulator[1]
Other Security
- ToF Human Presence Detection
- E-shutter
- IR camera for Windows® Hello (facial recognition)
Notes:
| [1] The BIOS simulator is just for reference. Default settings and some options may vary depending on the hardware, operating system and BIOS version.FeatureValue |
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Altitude
Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Sustainability
Material[1]
50% recycled aluminium on top cover
50% recycled aluminium on keyboard frame
50% recycled aluminium on bottom cover
90% PCC recycled plastic used in the battery pack enclosure
100% recycled cobalt used in the 80Wh battery
85% PCC recycled plastic used in key caps
90% PCC recycled plastic used in speaker enclosure
30% recycled REE (Rare Earth) in speaker magnet
90% PCC recycled plastic used in standard 65W adapter
FSC certified plastic-free packaging
Bamboo + sugarcane fiber standard / retail packaging
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
Mil-Spec Test
MIL-STD-810H military test passed
Other Certifications
- Eyesafe® Certified 2.0
- (Optional) Intel® Evo™ Platform
- TÜV Rheinland® Eye Comfort Certification (5-star)
