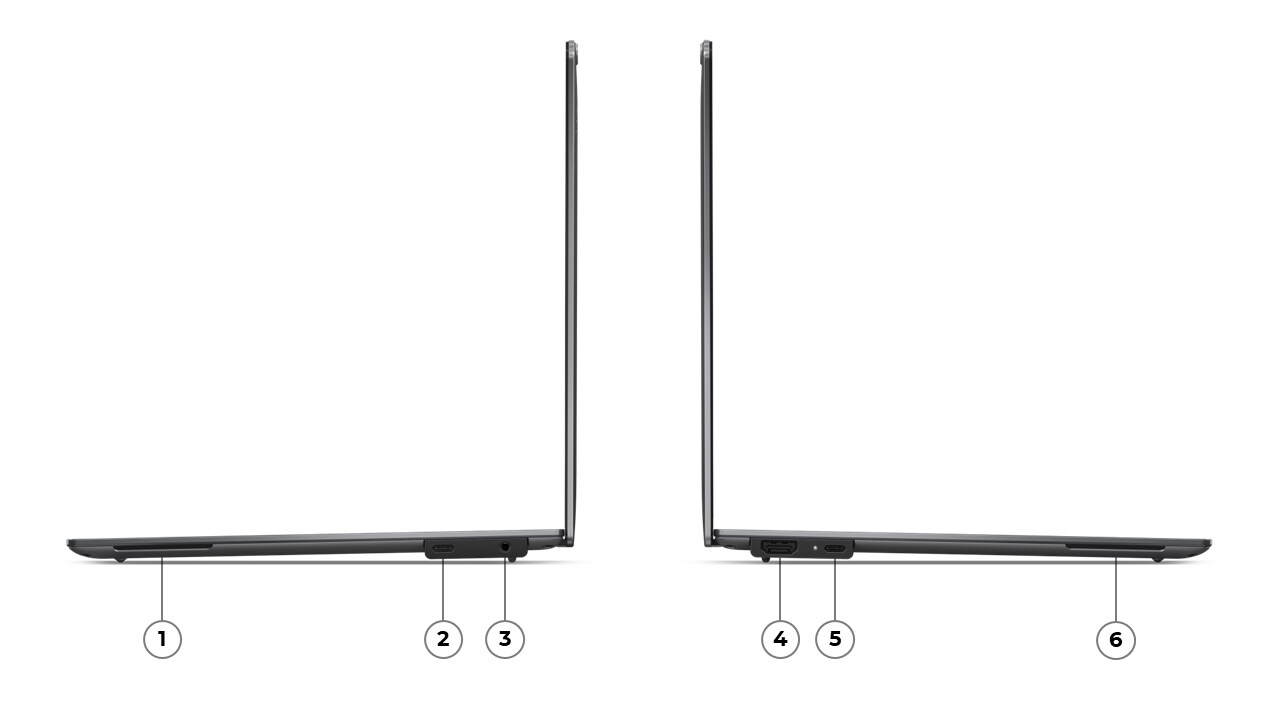

Overview
| 1. | Speaker | 4. | HDMI |
| 2. | Thunderbolt 4 | 5. | Thunderbolt 4 |
| 3. | Headphone / microphone combo jack (3.5mm) | 6. | Speaker |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 5 226V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.5GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 5 228V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.5GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 5 238V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.1GHz / LPE-core 2.1GHz | P-core 4.7GHz / LPE-core 3.5GHz | 8MB | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost |
| Core Ultra 7 258V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.2GHz / LPE-core 2.2GHz | P-core 4.8GHz / LPE-core 3.7GHz | 12MB | Intel® Arc™ Graphics 140V, up to 64 TOPS | Intel® AI Boost |
| Core Ultra 7 268V | 8 (4 P-core + 4 LPE-core) | 8 | P-core 2.2GHz / LPE-core 2.2GHz | P-core 5GHz / LPE-core 3.7GHz | 12MB | Intel® Arc™ Graphics 140V, up to 66 TOPS | Intel® AI Boost |
AI (Artificial Intelligence)
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Ubuntu Linux[1]
- Linux[2]
- No preload operating system
Notes:
| [1], [2] Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.FeatureValue |
Graphics
Graphics**
| Graphics | Type | Memory | TGP | Key Features |
| Intel® Arc™ Graphics 130V | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Arc™ Graphics 140V | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
Monitor Support
Monitor Support[1]
Supports up to 3 independent displays (native display and 2 external monitors via HDMI® and Thunderbolt™)
• HDMI® supports up to 4K@60Hz
• Thunderbolt™ supports up to 8K@60Hz[2]
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
| [2] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.FeatureValue |
Chipset
Memory
Storage
Storage Type
| Disk Type | Interface | Offering | Security |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 256GB / 512GB / 1TB / 2TB | Opal 2.0 |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Multi-Media
Camera**
- FHD 1080p + IR discrete, with E-shutter, fixed focus, temporal noise reduction
- UHD 8.0MP with large sensor + IR discrete, with E-shutter, ToF sensor, MIPI, fixed focus, temporal noise reduction
Battery
Battery Life[2]
MobileMark® 25: up to 15.63 hr with 776 performance score @250nits
JEITA-BAT 3.0 (Video/Idle): up to 13.54 hr / 19.66 hr @200nits
Local video playback: up to 25.26 hr @150nits
Notes:
| [1] Rapid charge is only guaranteed when the computer is turned off or in standby mode or in hibernation mode. When the computer is powered on, the Charge Time will vary depending on system power consumption and AC adapter power.FeatureValue |
| [2] Configuration: WUXGA 400nits (non-touch), Intel® Core™ Ultra 5 226V, 16GB LPDDR5x, Win 11, 55Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using MobileMark® 25, JEITA 3.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to Microsoft® link for more information about the Windows® Performance power slider.Product |
Power Adapter
Power Adapter**[1]
- 65W USB-C® nano GaN (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® nano GaN (3-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim GaN (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim GaN (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter[2]
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
| [2] No power adapter is for special bid only.FeatureValue |
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 14" | WUXGA (1920x1200) | None | OLED | 400nits | Anti-glare | 16:10 | 100,000:1 | 100% DCI-P3 | 60Hz | 85° / 85° / 85° / 85° | DisplayHDR™ True Black 500, Dolby Vision®, Eyesafe® Certified 2.0, 90.9% screen to body ratio |
| 14" | 2.8K (2880x1800) | Multi-touch | OLED | 500nits | Anti-reflection, anti-smudge | 16:10 | 100,000:1 | 100% DCI-P3 | 30-120Hz VRR | 85° / 85° / 85° / 85° | DisplayHDR™ True Black 600, Dolby Vision®, Eyesafe® Certified 2.0, 90.9% screen to body ratio |
Input Device
Touchpad
Buttonless glass surface multi-touch Haptic Touchpad, supports Precision TouchPad (PTP), 80 x 130 mm (3.15 x 5.12 inches)
Mechanical
Weight[2]
| Models | Weight |
| Models with multi-touch display | Starting at 1.27 kg (2.80 lbs) |
| Models with non-touch display | Starting at 1.21 kg (2.66 lbs) |
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
Notes:
| [1] Ethernet support via optional Lenovo® USB-C® to Ethernet Adapter.FeatureValue |
| [2] 6GHz Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
Ports[1]
Standard Ports
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Docking
Various docking solutions supported via Thunderbolt™ / USB-C®.
For more compatible docking solutions, please visit Docking for ThinkPad® X9-14 Gen 1
Security & Privacy
Security
Manageability
System Management
Notes:
| [1] Intel® vPro® offers a superset of DASH’s defined capabilities.FeatureValue |
Service
Accessories
Bundled Accessories
Bundled Accessories***[1]
- Lenovo® USB-C® to Ethernet Adapter (1Gbps)
- Lenovo® USB-C® to USB-A Adapter
- None
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for ThinkPad® X9-14 Gen 1.Product |
Operating Requirements
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
50% recycled aluminium on top cover
50% recycled aluminium on keyboard frame
50% recycled aluminium on bottom cover
85% PCC recycled plastic used in keycaps
90% PCC recycled plastic used in speaker enclosure
100% recycled cobalt used in the 55Wh battery
90% PCC recycled plastic used in the battery frame
90% PCC recycled plastic used in standard 65W adapters
Bamboo + sugarcane fiber standard / retail packaging
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
