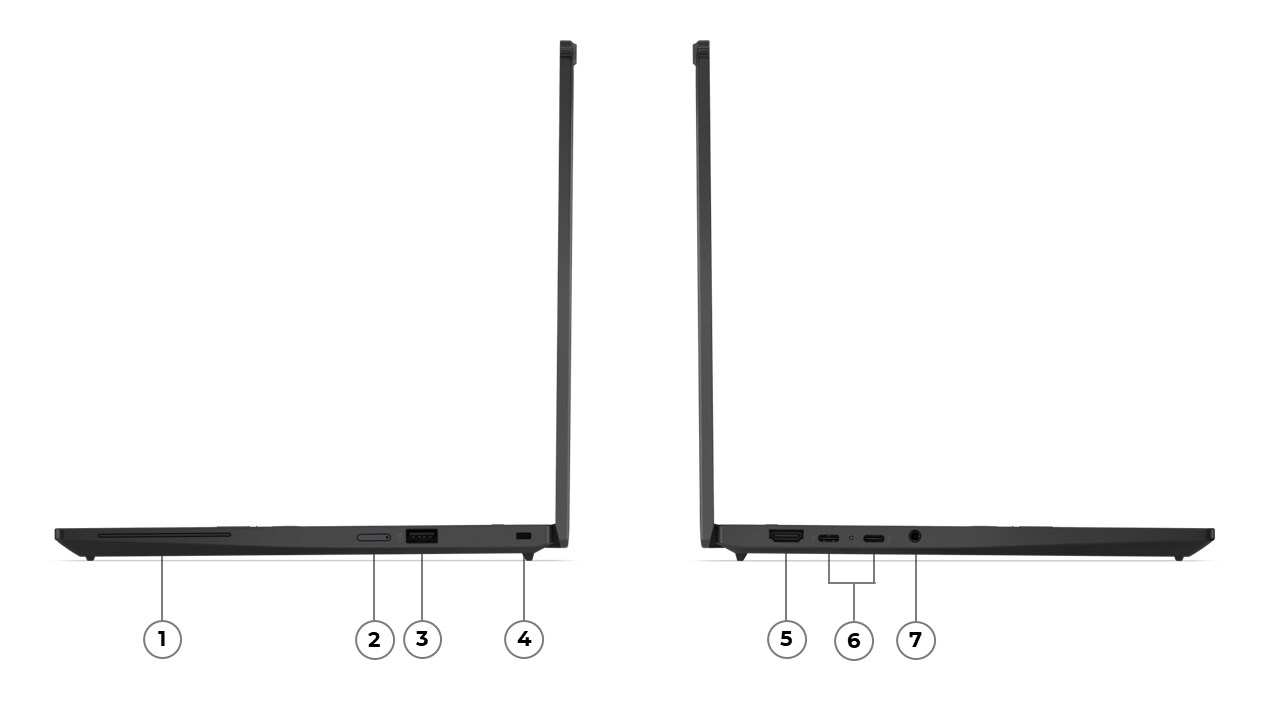

Overview

1.	Smart card reader *	5.	HDMI
2.	Nano-SIM card slot *	6.	2x Thunderbolt 4
3.	USB-A (USB 5Gbps), Always On	7.	Headphone / microphone combo jack (3.5mm)
4.	Kensington Nano Security Slot

Notes:

Items with * are only available on selected models

Performance

Processor

Processor Family

Intel® U or H Series Core Ultra 5 / 7 Processor (Series 2)

Processor**

Processor Name	Cores	Threads	Base Frequency	Max Frequency	Cache	Processor Graphics	NPU
Core Ultra 5 225H	14 (4 P-core + 8 E-core + 2 LPE-core)	14	P-core 1.7GHz / E-core 1.3GHz / LPE-core 700MHz	P-core 4.9GHz / E-core 4.3GHz / LPE-core 2.5GHz	18MB	Intel® Arc™ 130T GPU, up to 63 TOPS	Intel® AI Boost
Core Ultra 5 225U	12 (2 P-core + 8 E-core + 2 LPE-core)	14	P-core 1.5GHz / E-core 1.3GHz / LPE-core 700MHz	P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.4GHz	12MB	Intel® Graphics	Intel® AI Boost
Core Ultra 5 235U	12 (2 P-core + 8 E-core + 2 LPE-core)	14	P-core 2.0GHz / E-core 1.6GHz / LPE-core 700MHz	P-core 4.9GHz / E-core 4.1GHz / LPE-core 2.4GHz	12MB	Intel® Graphics	Intel® AI Boost
Core Ultra 7 255H	16 (6 P-core + 8 E-core + 2 LPE-core)	16	P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz	P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz	24MB	Intel® Arc™ 140T GPU, up to 74 TOPS	Intel® AI Boost
Core Ultra 7 255U	12 (2 P-core + 8 E-core + 2 LPE-core)	14	P-core 2GHz / E-core 1.7GHz / LPE-core 700MHz	P-core 5.2GHz / E-core 4.2GHz / LPE-core 2.4GHz	12MB	Intel® Graphics	Intel® AI Boost
Core Ultra 7 265U	12 (2 P-core + 8 E-core + 2 LPE-core)	14	P-core 2.1GHz / E-core 1.7GHz / LPE-core 700MHz	P-core 5.3GHz / E-core 4.2GHz / LPE-core 2.4GHz	12MB	Intel® Graphics	Intel® AI Boost

AI (Artificial Intelligence)

AI PC Category

AI PC

AI Performance

Up to 96 overall TOPS

NPU

Integrated Intel® AI Boost, up to 13 TOPS

Operating System

Operating System**

Windows® 11 Pro
Windows® 11 Home
Windows® 11 Home Single Language
Ubuntu Linux^[1]
Linux^[2]
No preload operating system

Notes:

[1], [2] Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.

Graphics

Graphics**

Graphics	Type	Memory	TGP	Key Features
Intel® Arc™ 130T GPU	Integrated	Shared	Share CPU TDP	DirectX® 12.2
Intel® Arc™ 140T GPU	Integrated	Shared	Share CPU TDP	DirectX® 12.2
Intel® Graphics	Integrated	Shared	Share CPU TDP	DirectX® 12.2

Monitor Support

Monitor Support^[1]

Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™) • HDMI® supports up to 4K@60Hz • Thunderbolt™ supports up to 8K@60Hz^[2]

Notes:

[1] Refresh rates >60hz also supported, however max resolution will be limited.

[2] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.

Chipset

Intel® SoC (System on Chip) platform

Memory

Max Memory

16GB soldered memory, not upgradable
32GB soldered memory, not upgradable

Memory Slots

Memory soldered to systemboard, no slots, dual-channel

Memory Type

LPDDR5x-8400^[1]

Notes:

[1] Installed memory is actually LPDDR5x-8533 but run as LPDDR5x-8400 due to platform limitation.

Storage

Storage Support^[1]

One drive, up to 2TB M.2 2280 SSD

Storage Slot

Models with U series processor: one M.2 2280 PCIe® 4.0 x4 slot
Models with H series processor: one M.2 2280 PCIe® 5.0 x4 slot

Storage Type**

Disk Type	Interface	Offering	Security
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4	256GB / 512GB / 1TB	Opal 2.0
M.2 2280 SSD	PCIe® NVMe®, PCIe® 5.0 x4 Performance	512GB / 1TB	Opal 2.0

Notes:

[1] The max storage capacity is only technical readiness and may be different from current Lenovo® storage offerings.

Removable Storage

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos®

Microphone

Dual-microphone array, 360° far-field, Dolby Voice®

Camera**

5.0MP + IR discrete, with privacy shutter, fixed focus, Computer Vision on Image Signal Processor (ISP), temporal noise reduction
5.0MP, with privacy shutter, fixed focus, temporal noise reduction
No camera

Battery

Battery**^[1]

41Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr)
54.7Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr)

Battery Life^[2]

Configuration 1 (max battery life) MobileMark® 25: up to 14.41 hr with 570 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 12.85 hr / 27.73 hr @200nits Local video playback: up to 24.56 hr @150nits Alternate configuration 2 MobileMark® 25: up to 14 hr with 750 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 12.83 hr / 25.85 hr @200nits Local video playback: up to 25.35 hr @150nits Alternate configuration 3 MobileMark® 25: up to 13.13 hr with 583 performance score @250nits JEITA-BAT 3.0 (Video/Idle): up to 13.12 hr / 26.1 hr @200nits Local video playback: up to 23.63 hr @150nits

Notes:

[1] Rapid charge is only guaranteed when the computer is turned off or in standby mode or in hibernation mode. When the computer is powered on, the Charge Time will vary depending on system power consumption and AC adapter power.

[2] Configuration 1 (max battery life): WUXGA low power (non-touch), Intel® Core™ Ultra 5 225U, 16GB LPDDR5x, Win 11, 54.7Wh battery, best power efficiency power mode Alternate configuration 2: WUXGA (non-touch), Intel® Core™ Ultra 5 225H, 16GB LPDDR5x, Win 11, 54.7Wh battery, best power efficiency power mode Alternate configuration 3: WUXGA (touch), Intel® Core™ Ultra 5 235U, 16GB LPDDR5x, Win 11, 54.7Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using MobileMark® 25, JEITA 3.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to Microsoft® link for more information about the Windows® Performance power slider.

Power Adapter

Power Adapter**^[1]

65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® nano GaN (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® nano GaN (3-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim GaN (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim GaN (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
No power adapter^[2]

Notes:

[1] AC adapter offerings depend on the country.

[2] No power adapter is for special bid only.

Design

Display

Display**^[1]

Size	Resolution	Touch	Type	Brightness	Surface	Aspect Ratio	Contrast Ratio	Color Gamut	Refresh Rate	Viewing Angle (L/R/U/D)	Key Features
13.3"	WUXGA (1920x1200)	None	IPS^[2]	400nits	Anti-glare	16:10	1500:1	100% sRGB	60Hz	85° / 85° / 85° / 85°	Eyesafe® Certified 2.0, 87.8% screen to body ratio
13.3"	WUXGA (1920x1200)	Multi-touch	IPS^[3]	400nits	Anti-glare	16:10	1500:1	100% sRGB	60Hz	85° / 85° / 85° / 85°	Eyesafe® Certified 2.0, 87.8% screen to body ratio

Touchscreen

On-cell multi-touch, supports 10-point touch
Non-touch

Notes:

[1] 3M™ DBEF5 (Dual Brightness Enhancement Film) improves the experience with higher brightness and lower energy.

[2], [3] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Pen

No support

Keyboard

6-row, spill-resistant, multimedia Fn keys, Copilot key

Keyboard Backlight

LED backlight
Non-backlight

UltraNav™

TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu Glass-like Mylar® surface multi-touch 3-button Trackpad, 74.3 x 115 mm (2.93 x 4.53 inches)

Mechanical

Dimensions (WxDxH)^[1]

Models	Dimensions
Models with CFRP top cover	299.3 x 207 x 9.85/12.95 (front/rear), 17.75 (maximum) mm; 11.78 x 8.15 x 0.39/0.51 (front/rear), 0.70 (maximum) inches
Models with carbon fiber hybrid top cover	299.3 x 207 x 10.25/13.35 (front/rear), 18.15 (maximum) mm; 11.78 x 8.15 x 0.40/0.53 (front/rear), 0.71 (maximum) inches

Weight^[2]

Models	Weight
Models with 54.7Wh battery	Starting at 962 g (2.12 lbs)
Models with 41Wh battery	Starting at 927 g (2.04 lbs)

Case Color

Black

Case Material**

CFRP (top), magnesium (bottom)
Carbon fiber hybrid (top), magnesium (bottom)
Carbon fiber hybrid (top), aluminium (bottom)
CFRP (top), aluminium (bottom)

Notes:

[1] The system dimensions may vary depending on configurations.

[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®**^[1]

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3^[2]
Intel® Wi-Fi® 7 BE201, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4^[3]
No WLAN and Bluetooth®

WWAN**

Wireless WAN upgradable to 5G (with antenna ready)^[4]
Quectel EM061K-GL, 4G LTE CAT6, M.2 card, with embedded eSIM functionality
Rolling Wireless RW350R-GL, 5G Sub-6 GHz, M.2 card, with embedded eSIM functionality
No support

SIM Card

KDDI eSIM Program (Japan)
No physical SIM card inbox

Ethernet

No onboard Ethernet^[5]

NFC

Near Field Communication
No support

Notes:

[1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.

[2] Wi-Fi® 6E operation is subject to the regulation rules in each country.

[3] Wi-Fi® 7 operation is subject to the regulation rules in each country.

[4] Wireless WAN upgradable to 5G is only available in EMEA.

[5] Ethernet support via optional Lenovo® USB-C® to Ethernet Adapter.

Ports^[1]

Standard Ports

1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)

Optional Ports***

1x Smart card reader
1x Nano-SIM card slot (WWAN support models)

Notes:

[1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.

Docking

Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® X13 Gen 6 (Intel®)

Security & Privacy

Security

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-3 certified

Physical Locks

Kensington® Nano Security Slot™, 2.5 x 6 mm

Smart Card Reader

Smart card reader, supports ISO 7816 and EMV
No smart card reader

Fingerprint Reader

Touch style fingerprint reader integrated in power button, match-on-chip
No fingerprint reader

BIOS Security

NVMe® password
Power-on password
Supervisor password
System management password
Certificate-based BIOS authentication
FIDO (Fast Identity Online) authentication
Self-healing BIOS

Other Security

Camera privacy shutter (camera models)
(Optional) Computer Vision-based User Presence Sensing on Image Signal Processor (ISP)
(Optional) IR camera for Windows® Hello (facial recognition)

Manageability

System Management

Intel® vPro® Enterprise^[1]
Non-vPro®

Notes:

[1] Intel® vPro® offers a superset of DASH’s defined capabilities.

Service

Warranty

Base Warranty**

1-year courier or carry-in service
1-year courier or carry-in with 2-year system board service (Korea only)
1-year limited onsite service
3-year (1-yr battery) courier or carry-in service
3-year (1-yr battery) limited onsite service
No base warranty

Accessories

Bundled Accessories

Bundled Accessories***^[1]

Lenovo® HDMI® to VGA Monitor Adapter
Lenovo® USB-C® to DisplayPort™ Adapter
Lenovo® USB-C® to Ethernet Adapter (1Gbps)
Lenovo® USB-C® to VGA Adapter
None

Notes:

[1] For more compatible accessory solutions, please visit Accessories for ThinkPad® X13 Gen 6 (Intel®).

Operating Requirements

Operating Environment

Temperature^[1]

Operating: 5°C (41°F) to 35°C (95°F)
Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
Storage without package: 5°C (41°F) to 43°C (109°F)

Relative Humidity

Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)

Notes:

[1] When you charge the battery, its temperature must be no lower than 10°C (50°F).

Environmental

Sustainability

Material^[1]

30% PCC recycled plastic on CFRP top cover 48% PCC recycled plastic used in display panel frame 90% recycled magnesium on keyboard frame 55% recycled aluminium on bottom cover 85% PCC recycled plastic used in keycaps 90% PCC recycled plastic used in speaker enclosure 95% PCC recycled plastic used in cable holders 90% PCC recycled plastic used in the battery pack enclosure 90% PCC recycled plastic used in 65W standard and 65W slim GaN adapters Plastic free packaging

Notes:

[1] PCC: Post Consumer Content, recycled materials from customers.

Certifications

Green Certifications^[1]

Green Certifications^[2]

ENERGY STAR® 9.0
EPEAT™ Gold Registered^[3]
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0

Notes:

[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.

[2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.

[3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.

Other Certifications

Mil-Spec Test

MIL-STD-810H military test passed

Other Certifications

Eyesafe® Certified 2.0
(Optional) Intel® Evo™ Platform

Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
The specifications on this page may not be available in all regions, and may be changed or updated without notice.
