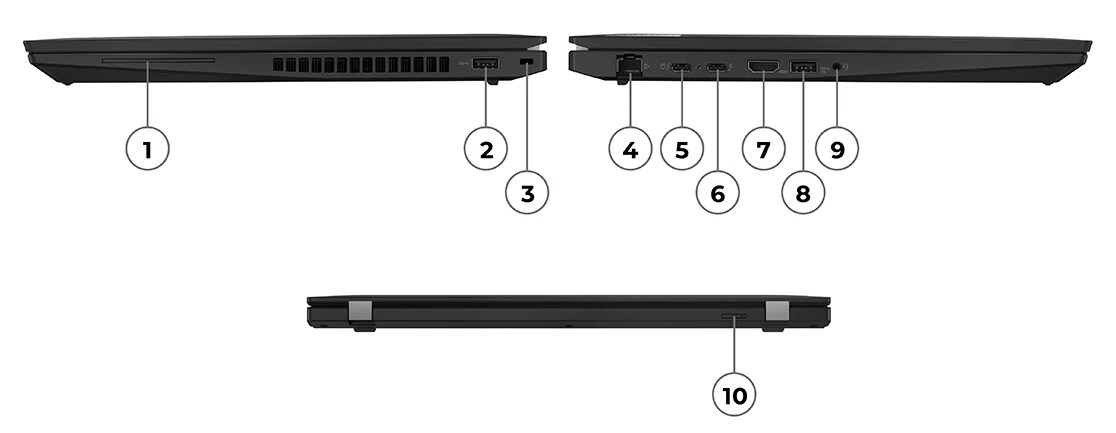

Overview
1. Smart card reader * | 6. Thunderbolt 4 |
2. USB 3.2 Gen 1 | 7. HDMI |
3. Kensington Nano Security Slot | 8. USB 3.2 Gen 1 (Always On) |
4. Ethernet (RJ-45) | 9. Headphone / microphone combo jack (3.5mm) |
5. Thunderbolt 4 | 10. Nano-SIM card slot * |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Max Frequency | Cache | Processor Graphics |
| Core i5-1335U | 10 (2 P-core + 8 E-core) | 12 | P-core 4.6GHz / E-core 3.4GHz | 12MB | Intel Iris® Xe Graphics |
| Core i5-1345U | 10 (2 P-core + 8 E-core) | 12 | P-core 4.7GHz / E-core 3.5GHz | 12MB | Intel Iris Xe Graphics |
| Core i5-1340P | 12 (4 P-core + 8 E-core) | 16 | P-core 4.6GHz / E-core 3.4GHz | 12MB | Intel Iris Xe Graphics |
| Core i5-1350P | 12 (4 P-core + 8 E-core) | 16 | P-core 4.7GHz / E-core 3.5GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1355U | 10 (2 P-core + 8 E-core) | 12 | P-core 5.0GHz / E-core 3.7GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1365U | 10 (2 P-core + 8 E-core) | 12 | P-core 5.2GHz / E-core 3.9GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1360P | 12 (4 P-core + 8 E-core) | 16 | P-core 5.0GHz / E-core 3.7GHz | 18MB | Intel Iris Xe Graphics |
| Core i7-1370P | 14 (6 P-core + 8 E-core) | 20 | P-core 5.2GHz / E-core 3.9GHz | 24MB | Intel Iris Xe Graphics |
Notes:
- Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics. Intel P series processors are for special bid only.
Operating System
Operating System**[1]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- Windows 11 DG Windows 10 Pro 64
- Linux
- Ubuntu Linux
- No operating system
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Notes:
- Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics.
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®)
• Thunderbolt supports up to 5K@60Hz
• HDMI supports up to 4K@60Hz
Notes:
- Refresh rates >60hz also supported, however max resolution will be limited.
Chipset
Memory
Max Memory[1]
- Models with 16GB LPDDR5x: 16GB soldered memory, not upgradable
- Models with 32GB LPDDR5x: 32GB soldered memory, not upgradable
- Models with DDR4 memory: up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
- Models with DDR5 memory: up to 32GB (16GB soldered + 16GB SO-DIMM) DDR5-4800
Memory Slots**
- Models with DDR4 memory: one memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
- Models with DDR5 memory: one memory soldered to systemboard, one DDR5 SO-DIMM slot, dual-channel capable
- Models with LPDDR5x memory: memory soldered to systemboard, no slots, dual-channel
Memory Type**
- Models with integrated graphics: DDR4-3200 or DDR5-4800[2]
- Models with discrete graphics: LPDDR5x-6400[3]
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
- Installed DDR5 memory is actually 5600MHz but run at 4800MHz due to platform limitation.
- Installed LPDDR5x memory is actually 7500MHz but run at 6400MHz due to platform limitation.
Storage
Storage Type**
| Disk Type | Interface | Offering | Security |
| M.2 2280 SSD | PCIe NVMe®, PCIe 4.0 x4 | 256GB / 512GB / 1TB | Opal 2.0 |
| M.2 2280 SSD | PCIe NVMe, PCIe 4.0 x4 Performance | 512GB / 1TB / 2TB | Opal 2.0 |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Camera**
- 5.0MP + IR discrete, with privacy shutter, fixed focus
- HD 720p, with privacy shutter, fixed focus
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus
- No camera[2]
Notes:
- No microphone is for special bid only.
- No camera is for special bid only.
Battery
Battery**
- Integrated Li-Polymer 52.5Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W or 135W AC adapter
- Integrated Li-Polymer 86Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 135W AC adapter
Battery Life[1]
Configuration 1 (max battery life)
MobileMark® 25: up to 10.0 hr @250nits
JEITA 2.0: up to 18.5 hr @150nits
Local video playback: up to 16.9 hr @150nits
Alternate configuration 2
MobileMark 25: up to 9.2 hr @250nits
JEITA 2.0: up to 19.5 hr @150nits
Local video playback: up to 17.1 hr @150nits
Alternate configuration 3
MobileMark 25: up to 7.0 hr @250nits
JEITA 2.0: up to 13.0 hr @150nits
Local video playback: up to 12.3 hr @150nits
Notes:
- Configuration 1 (max battery life): WUXGA (non-touch), Intel i5-1340P, 16GB soldered DDR5, Win 11, 52.5Wh battery, best power efficiency power mode Alternate configuration 2: WUXGA low power (non-touch), Intel i5-1335U, 16GB soldered DDR5, Win 11, 52.5Wh battery, best power efficiency power mode Alternate configuration 3: WUXGA (touch), Intel i5-1350P, 16GB soldered DDR5, Win 11, 52.5Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using MobileMark 2018, MobileMark 25, JEITA 2.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to Microsoft® link for more information about the Windows Performance power slider.
Power Adapter
Power Adapter**[1]
- 45W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 135W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) | Key Features |
| 16" | WUXGA (1920x1200) | None | IPS | 300 nits | Anti-glare | 16:10 | 800:1 | 45% NTSC | 85°/85°/85°/85° | - |
| 16" | WUXGA (1920x1200) | None | IPS | 400 nits | Anti-glare | 16:10 | 1000:1 | 100% sRGB | 85°/85°/85°/85° | Low power, Eyesafe® Certified 2.0, ICC Template color calibration |
| 16" | WUXGA (1920x1200) | Multi-Touch | IPS | 300 nits | Anti-glare | 16:10 | 800:1 | 45% NTSC | 85°/85°/85°/85° | - |
| 16" | WQUXGA (3840x2400) | Multi-touch | OLED | 400 nits | Anti-reflection, Anti-smudge | 16:10 | 100000:1 | 100% DCI-P3 | 87.5°/87.5°/87.5°/87.5° | DisplayHDR™ 400, Dolby Vision™, Eyesafe Certified 2.0, ICC Template color calibration |
Notes:
- California Electronic Waste Recycling Fee In California USA, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, please go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Keyboard
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls, numeric keypad
UltraNav™
TrackPoint® pointing device and glass-like Mylar® surface multi-touch touchpad, 67.7 x 115 mm (2.67 x 4.53 inches)
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Integrated graphics models | 361.9 x 255.5 x 20.5 mm (14.25 x 10.06 x 0.81 inches) |
Weight[2]
| Models | Weight |
| Models with storm grey cover and integrated graphics | Starting at 1.70 kg (3.75 lbs) |
| Models with thunder black cover and integrated graphics | Starting at 1.67 kg (3.7 lbs) |
| Models with discrete graphics | Starting at 1.74 kg (3.84 lbs) |
Case Material**
- Models with storm grey cover: aluminium (top), aluminium (bottom)
- Models with thunder black cover: carbon fiber hybrid (top), PPS (bottom)
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Ethernet**
- Gigabit Ethernet, Intel Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel Ethernet Connection I219-V (non-vPro models), 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth®**[1][2]
- Qualcomm® Wi-Fi® 6E NFA725A, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
- Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1
WWAN**
- Wireless WAN upgradable to 4G (with antenna ready)
- Fibocom L860-GL-16, 4G LTE CAT16, M.2 card, with embedded eSIM functionality
- Quectel EM05-G, 4G LTE CAT4, M.2 card, with embedded eSIM functionality
- No support
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
- Wi-Fi 6E full features might be limited by country level restrictions. Wi-Fi 6E only enabled on Windows 11 and operates as Wi-Fi 6 with Windows 10. 6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation.
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI, up to 4K/60Hz
- 1x Ethernet (RJ-45)
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
Docking
Docking
Various docking solutions supported via Thunderbolt / USB-C.
For more compatible docking solutions, please visit Docking for ThinkPad® T16 Gen 2 (Intel)
Monitor Cable
Security & Privacy
Security
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
Manageability
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- 3-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) limited onsite service
- No base warranty
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Sustainability
Material
55% recycled aluminium on storm grey top cover
90% recycled magnesium on keyboard cover
98% PCC recycled plastic used in speaker enclosure
Up to 30% PCC recycled plastic used in the 39.3Wh and 97% in 52.5Wh battery enclosure
90% PCC recycled plastic used in standard 45W and 65W adapters
Low-temperature solder
Retail or standard packaging: plastic free packaging with 100% bamboo sugarcane fiber
Bulk packaging: 90% recycled and FSC certified content
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Accessories
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- EPEAT is registered where applicable, please see https://www.epeat.net for registration status by country.
Other Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
