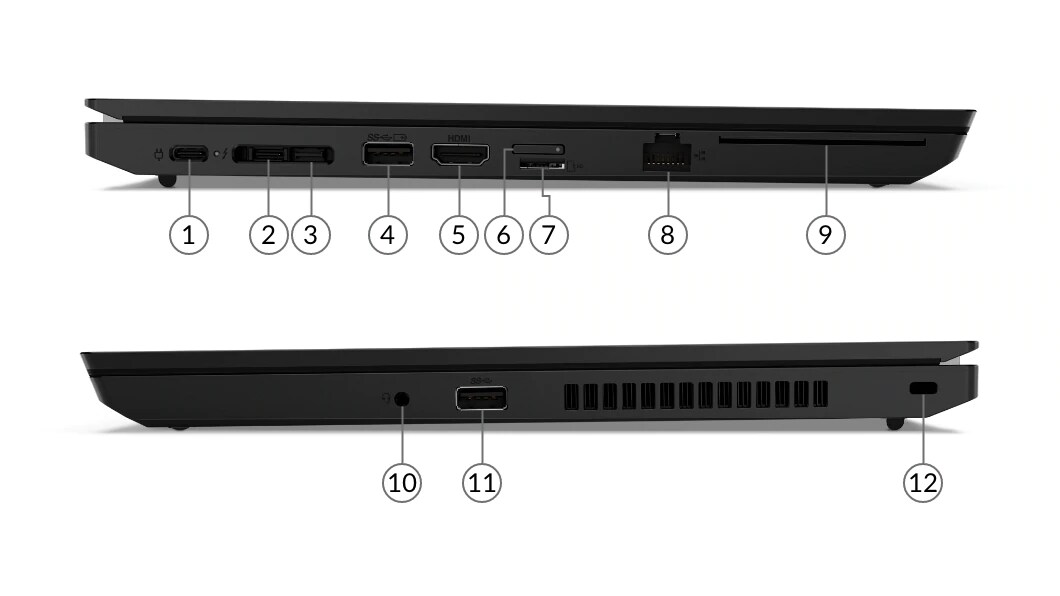

Overview
1. USB-C 3.2 Gen 1 | 7. microSD card reader |
2. Thunderbolt 4 | 8. Ethernet (RJ-45) * |
3. Side docking connector * | 9. Smart card reader * |
4. USB 3.2 Gen 1 (Always On) | 10. Headphone / microphone combo jack (3.5mm) |
5. HDMI 2.0 | 11. USB 3.2 Gen 1 |
6. Nano-SIM card slot * | 12. Kensington Security Slot |
Notes:
- Items with * are only available on selected models
- The combination of 2 and 3 is side docking connector
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| Pentium Gold 7505 | 2 | 4 | 2.0GHz | 3.5GHz | 4MB | Intel UHD Graphics |
| Core i3-1115G4 | 2 | 4 | 3.0GHz | 4.1GHz | 6MB | Intel UHD Graphics |
| Core i5-1135G7 | 4 | 8 | 2.4GHz | 4.2GHz | 8MB | Intel Iris® Xe Graphics |
| Core i5-1145G7 | 4 | 8 | 2.6GHz | 4.4GHz | 8MB | Intel Iris Xe Graphics |
| Core i7-1165G7 | 4 | 8 | 2.8GHz | 4.7GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1185G7 | 4 | 8 | 3.0GHz | 4.8GHz | 12MB | Intel Iris Xe Graphics |
Notes:
1 . | Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics. |
Operating System
Operating System**[1][2]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home Single Language
- Windows 11 DG Windows 10 Pro 64
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
- Windows 10 IoT Enterprise LTSC
- Linux
- Ubuntu Linux
- No operating system
Notes:
1 . | Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc. |
2 . | Windows 10 IoT Enterprise LTSC is for special bid only |
Graphics
Graphics**[1]
| Graphics | Type | Memory | Key Features |
| Intel UHD Graphics | Integrated | Shared | DirectX® 12.1 |
| Intel Iris Xe Graphics | Integrated | Shared | DirectX 12.1 |
| NVIDIA® GeForce MX450 | Discrete | 2GB GDDR6 | DirectX 12 |
Notes:
1 . | Intel Iris Xe Graphics capability requires system to be configured with dual-channel memory. On the system with single-channel memory, Intel Iris Xe Graphics will function as Intel UHD Graphics. NVIDIA GeForce MX450 is NOT available in EMEA. |
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via HDMI®, USB-C® and Thunderbolt™)
• HDMI supports up to 4096x2160@60Hz
• USB-C supports up to 5120x3200@60Hz
• Thunderbolt supports up to 5120x3200@60Hz
Chipset
Memory
Notes:
1 . | The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops. |
Storage
Storage Support[1][2]
- HDD/SSD mode: up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 2TB • M.2 2242 SSD up to 512GB
- One SSD mode: one drive, 1x M.2 SSD • M.2 2280 SSD up to 1TB • M.2 2242 SSD up to 512GB
Storage Slot[3]
- One SSD mode: one M.2 slot • One M.2 2280 PCIe® 3.0 x4 slot
- HDD/SSD mode: one 2.5" drive slot + one M.2 slot • One 2.5" SATA HDD slot • One M.2 2242 PCIe 3.0 x4 slot
Storage Type
| Disk Type | Interface | RPM | Security |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | APS (Active Protection System™) |
| 2.5" SATA HDD | SATA 6Gb/s | 7.2K | APS (Active Protection System) |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x4 | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | Opal 2.0 |
Notes:
1 . | The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops. |
2 . | HDD/SSD mode is NOT available in EMEA |
3 . | System has one HDD slot or one M.2 2280 slot exclusively for storage |
Removable Storage
Multi-Media
Camera**[2]
- HD 720p, with privacy shutter, fixed focus
- HD 720p + IR hybrid, with privacy shutter, fixed focus
- No camera
Notes:
1 . | No microphone is for special bid only. |
2 . | No camera is for special bid only. |
Battery
Battery
Integrated Li-Polymer 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Notes:
1 . | All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, MobileMark 25, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use. |
Power Adapter
Power Adapter**[1][2]
- 45W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
1 . | AC adapter offerings depend on the country. |
2 . | No power adapter is for special bid only 45W USB-C AC adapter and 65W USB-C slim AC adapter are NOT available in EMEA |
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) | Key Features |
| 14" | HD (1366x768) | None | TN | 220 nits | Anti-glare | 16:9 | 400:1 | 45% NTSC | 45°/45°/-/- | - |
| 14" | FHD (1920x1080) | None | IPS | 250 nits | Anti-glare | 16:9 | 700:1 | 45% NTSC | 85°/85°/-/- | - |
| 14" | FHD (1920x1080) | None | IPS | 400 nits | Anti-glare | 16:9 | 800:1 | 72% NTSC | 85°/85°/-/- | Low power |
| 14" | FHD (1920x1080) | Multi-touch | IPS | 300 nits | Anti-glare | 16:9 | 700:1 | 45% NTSC | 85°/85°/-/- | - |
Notes:
1 . | California Electronic Waste Recycling Fee In California USA, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, please go to https://www.calrecycle.ca.gov/Electronics/Consumer |
Input Device
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| PC-ABS models | 331 x 235 x 20.4 mm (13.03 x 9.25 x 0.80 inches) |
| Aluminium models | 331 x 235 x 19.1 mm (13.03 x 9.25 x 0.75 inches) |
Weight[2]
| Models | Weight |
| Aluminium models | Starting at 1.74 kg (3.84 lbs) |
| PC-ABS models | Starting at 1.59 kg (3.49 lbs) |
Notes:
1 . | The system dimensions may vary depending on configurations. |
2 . | The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. |
3 . | Aluminium top cover is NOT available in EMEA. |
Connectivity
Network
Ethernet**
- Gigabit Ethernet, Intel Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel Ethernet Connection I219-V (non-vPro models), 1x RJ-45, supports Wake-on-LAN
- No onboard Ethernet
WLAN + Bluetooth®**[1][2]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Mediatek Wi-Fi 6 MT7921, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card
- Realtek Wi-Fi 6 RTL8852AE, 802.11ax Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Intel Wi-Fi 6 AX200, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Intel Wi-Fi 6E AX210, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 Card
- No WLAN and Bluetooth
WWAN**
- Wireless WAN upgradable to 4G (with antenna ready)
- Quectel EM120R-GL, 4G LTE CAT12, M.2 card
- Quectel EM120R-GL, 4G LTE CAT12, M.2 card, with embedded eSIM functionality
- No support
Notes:
1 . | Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations. |
2 . | Wi-Fi 6 and Wi-Fi 6E full features might be limited by country level restrictions. 6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation. |
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 1x USB-C 3.2 Gen 1 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4)
- 1x HDMI 2.0
- 1x microSD card reader
- 1x Headphone / microphone combo jack (3.5mm)
Optional Ports***[2]
- 1x Ethernet (RJ-45)
- 1x Side docking connector
- 1x Smart card reader
- 1x Nano-SIM card slot (WWAN support models)
Notes:
1 . | The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt 3/4: 40 Gbit/s |
2 . | For the models without Ethernet connector, it is recommended to use the Lenovo USB-C to Ethernet Adapter for Ethernet connection. |
Docking
Docking
Various docking solutions supported via Thunderbolt or USB-C.
For more compatible docking solutions, please visit Docking for ThinkPad® L14 Gen 2 (Intel)
Monitor Cable
Security & Privacy
Security
Manageability
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- 3-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) limited onsite service
- No base warranty
Notes:
1 . | The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty. |
Environmental
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
1 . | When you charge the battery, its temperature must be no lower than 10°C (50°F). |
Certifications
Green Certifications[1]
Notes:
1 . | The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. |
2 . | EPEAT is registered where applicable, please see https://www.epeat.net for registration status by country. |
Other Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
