Processor
Processor Family
Intel® U or H Series Core Ultra 5 / 7 Processor (Series 2)
Processor**
| Core Ultra 5 225H | 14 (4 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 1.7GHz / E-core 1.3GHz / LPE-core 700MHz | P-core 4.9GHz / E-core 4.3GHz / LPE-core 2.5GHz | 18MB | Intel® Arc™ 130T GPU, up to 63 TOPS[1] | Intel® AI Boost |
| Core Ultra 5 225U | 12 (2 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 1.5GHz / E-core 1.3GHz / LPE-core 700MHz | P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.4GHz | 12MB | Intel® Graphics | Intel® AI Boost |
| Core Ultra 5 235U | 12 (2 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 2.0GHz / E-core 1.6GHz / LPE-core 700MHz | P-core 4.9GHz / E-core 4.1GHz / LPE-core 2.4GHz | 12MB | Intel® Graphics | Intel® AI Boost |
| Core Ultra 7 255H | 16 (6 P-core + 8 E-core + 2 LPE-core) | 16 | P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz | P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz | 24MB | Intel® Arc™ 140T GPU, up to 74 TOPS[2] | Intel® AI Boost |
| Core Ultra 7 265U | 12 (2 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 2.1GHz / E-core 1.7GHz / LPE-core 700MHz | P-core 5.3GHz / E-core 4.2GHz / LPE-core 2.4GHz | 12MB | Intel® Graphics | Intel® AI Boost |
Notes:
| [1], [2] Intel® Arc™ Graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.FeatureValue |
AI (Artificial Intelligence)
AI Performance
Up to 96 overall TOPS
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Intel® Arc™ 130T GPU[1] | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Arc™ 140T GPU[2] | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Graphics | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
Notes:
| [1], [2] Intel® Arc™ graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.FeatureValue |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, USB-C® and Thunderbolt™)
• HDMI® supports up to 4096x2160@60Hz
• USB-C® supports up to 5120x3200@60Hz
• Thunderbolt™ supports up to 7680x4320@60Hz[2]
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
| [2] 8K resolution support needs 2 display pipes. That is, simultaneous display number will “-1” when 8K resolution displayed.FeatureValue |
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory
Up to 64GB DDR5-5600[1]
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Notes:
| [1] The 64GB memory is exclusively available for special bid only.FeatureValue |
Storage
Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB[1]
Storage Slot
Two M.2 slots
• One M.2 2242 PCIe® 4.0 x4 slot
• One M.2 2280 PCIe® 4.0 x4 slot
Storage Type
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 256GB / 512GB / 1TB | Opal 2.0 |
Notes:
| [1] The system supports dual SSD via two M.2 slots, but Lenovo® only offers one M.2 2242 SSD configuration and M.2 2280 slot for user self-extension.FeatureValue |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Senary SN6147 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN
Microphone
Dual-microphone array with smart noise-cancelling
Camera**
- 5.0MP, with privacy shutter, fixed focus, temporal noise reduction
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus, temporal noise reduction
- HD 720p, with privacy shutter, fixed focus
Battery
Battery**
- 48Wh Rechargeable Li-ion Battery, supports Rapid Charge Pro (charge up to 50% in 30min)[1]
- 64Wh Rechargeable Li-ion Battery
Battery Life
Configuration 1 (max battery life)
MobileMark® 30: up to 11.08 hr with 699 performance score @250nits
JEITA-BAT 3.0 (Video/Idle): up to 11.36 hr / 24.08 hr @200nits
Local video playback: up to 20.4 hr @150nits
Configuration 2
MobileMark® 30: up to 8.6 hr with 868 performance score @250nits
JEITA-BAT 3.0 (Video/Idle): up to 7.43 hr / 17.2 hr @200nits
Local video playback: up to 15.11 hr @150nits
Configuration 3
MobileMark® 30: up to 8.45 hr with 716 performance score @250nits
JEITA-BAT 3.0 (Video/Idle): up to 8.28 hr / 17.11 hr @200nits
Local video playback: up to 15.68 hr @150nits[2]
Notes:
| [1] Rapid charge is only guaranteed when the computer is turned off or in standby mode or in hibernation mode. When the computer is powered on, the Charge Time will vary depending on system power consumption and AC adapter power.FeatureValue |
| [2] Configuration 1: WUXGA (non-touch), Intel® Core™ Ultra 5 225U, 16GB DDR5, Win 11, 64Wh battery, best power efficiency power mode
Configuration 2: WQXGA (non-touch), Intel® Core™ Ultra 7 255H, 64GB DDR5, Win 11, 64Wh battery, best power efficiency power mode
Configuration 3: WUXGA (non-touch), Intel® Core™ Ultra 5 225U, 16GB DDR5, Win 11, 48Wh battery, best power efficiency power mode
All battery life claims are approximate maximum and based on results using MobileMark® 30, JEITA 3.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests.
Actual battery life will vary and depends on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness.
The maximum capacity of the battery will decrease with time, ambient temperature and use.
Refer to Microsoft® link for more information about the Windows® Performance power slider.FeatureValue |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter[2]
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
| [2] No power adapter is for special bid only.FeatureValue |
Display
Display**
| 16" | WUXGA (1920x1200) | None | IPS | 300nits | Anti-glare | 16:10 | 800:1 | 45% NTSC | 60Hz | 85° / 85° / 85° / 85° | TÜV Low Blue Light (Software) |
| 16" | WUXGA (1920x1200) | Multi-touch | IPS | 300nits | Anti-glare | 16:10 | 800:1 | 45% NTSC | 60Hz | 85° / 85° / 85° / 85° | TÜV Low Blue Light (Software) |
| 16" | WQXGA (2560x1600) | None | IPS | 400nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 120Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0 |
Touchscreen
- In-cell multi-touch, supports 10-point touch
- Non-touch
Input Device
Keyboard
6-row, spill-resistant, multimedia Fn keys, numeric keypad, Copilot key
Keyboard Backlight
- LED backlight
- Non-backlight
UltraNav™
TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
Mylar® surface multi-touch 3-button Trackpad, 67 x 115 mm (2.64 x 4.53 inches)
Mechanical
Dimensions (WxDxH)[1]
| Models with aluminium (top) and PC-ABS (bottom) | 356 x 249 x 10.1/17.05 (front/rear), 21.95 (maximum) mm; 14.01 x 9.8 x 0.40/0.67 (front/rear), 0.86 (maximum) inches |
| Models with aluminium (top) and aluminium (bottom) | 356 x 249 x 10.1/17.05 (front/rear), 21.15 (maximum) mm; 14.01 x 9.80 x 0.40/0.67 (front/rear), 0.83 (maximum) inches |
Weight[2]
Starting at 1.63 kg (3.59 lbs)
Case Material**
- Aluminium (top), PC-ABS (bottom)
- Aluminium (top), aluminium (bottom)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®**[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
- Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card[2]
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 Card[3]
SIM Card
No physical SIM card inbox
Ethernet**
- Gigabit Ethernet, Intel® Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel® Ethernet Connection I219-V (non-vPro® models), 1x RJ-45, supports Wake-on-LAN
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [2], [3] Wi-Fi® 6E full features might be limited by country-level restrictions.
6GHz Wi-Fi® 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi® 6E, and the regional regulatory certifications & spectrum allocation.FeatureValue |

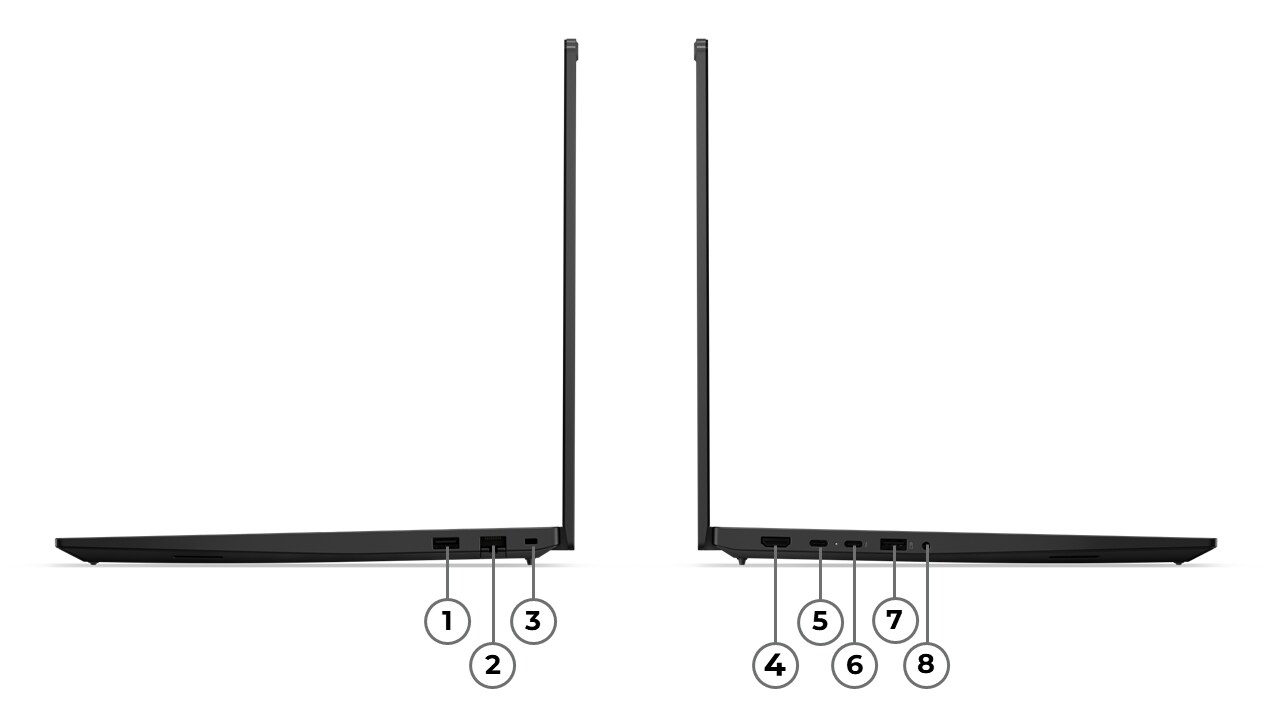

Ports[1]
Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.1 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader
No smart card reader
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
BIOS Security
- NVMe® password
- Power-on password
- Supervisor password
- System management password
- Certificate-based BIOS athentication
- FIDO (Fast Identity Online) authentication
- Self-healing BIOS
Other Security
- Camera privacy shutter
- (Optional) IR camera for Windows® Hello (facial recognition)
Operating Environment
Temperature[1]
- Operating: 5°C (41°F) to 35°C (95°F)
- Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
- Storage without package: 5°C (41°F) to 43°C (109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Altitude
Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Sustainability
Material[1]
50% recycled aluminium on top cover
50% PCC recycled plastic used in display panel frame
50% recycled aluminium on metal bottom cover
50% PCC recycled plastic used in PC-ABS bottom cover
90% PCC recycled plastic used in battery pack enclosure
85% PCC recycled plastic used in key caps (backlight)
70% PCC recycled plastic used in key caps (non-backlight)
90% PCC recycled plastic used in speaker enclosure
90% PCC recycled plastic used in standard 65W adapter
FSC certified plastic-free packaging: screen film, accessory box, carton
Bamboo + sugarcane fiber standard / retail packaging
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
