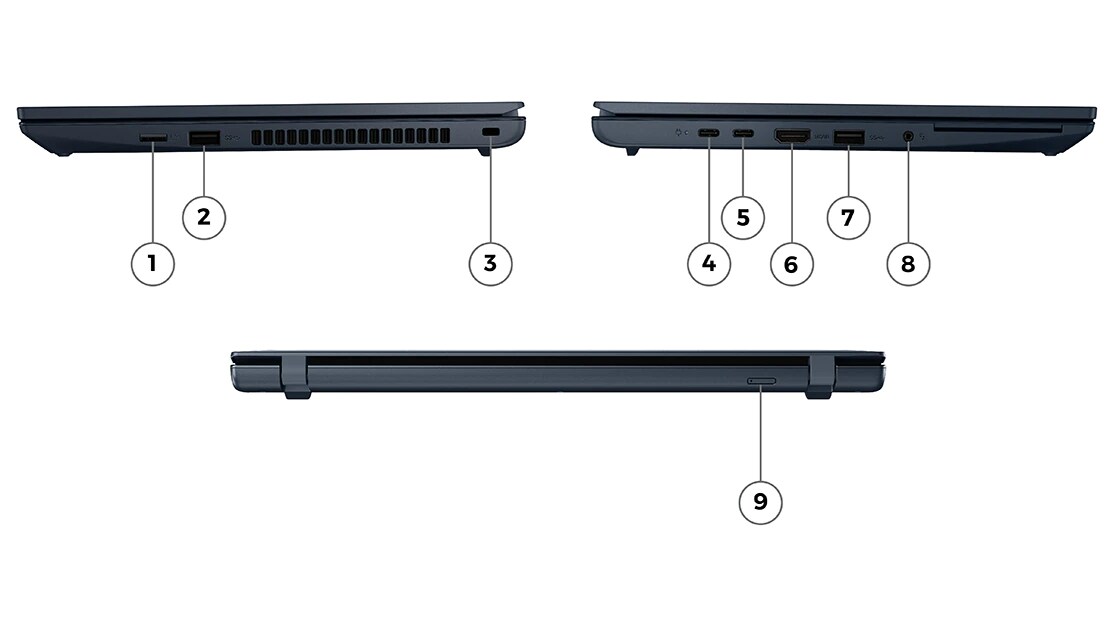

Overview
1. microSD card reader | 6. HDMI |
2. USB 3.2 Gen 2 | 7. USB 3.2 Gen 2 |
3. Kensington Nano Security Slot | 8. Headphone / microphone combo jack (3.5mm) |
4. Thunderbolt 4 (vPro) / USB4 (non-vPro) | 9. Nano-SIM card slot * |
5. Thunderbolt 4 (vPro) / USB4 (non-vPro) |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| Core i5-1235U | 10 (2 P-core + 8 E-core) | 12 | P-core 1.3GHz / E-core 0.9GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | Intel Iris® Xe Graphics |
| Core i3-1215U | 6 (2 P-core + 4 E-core) | 8 | P-core 1.2GHz / E-core 0.9GHz | P-core 4.4GHz / E-core 3.3GHz | 10MB | Intel UHD Graphics |
| Core i5-1245U | 10 (2 P-core + 8 E-core) | 12 | P-core 1.6GHz / E-core 1.2GHz | P-core 4.4GHz / E-core 3.3GHz | 12MB | Intel Iris Xe Graphics |
| Core i7-1265U | 10 (2 P-core + 8 E-core) | 12 | P-core 1.8GHz / E-core 1.3GHz | P-core 4.8GHz / E-core 3.6GHz | 12MB | Intel Iris Xe Graphics |
Operating System
Operating System**[1]
- ChromeOS
- ChromeOS (with Chrome Education Upgrade)
- ChromeOS (with Chrome Enterprise Upgrade)
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Graphics**
| Graphics | Type | Memory | TGP | Key Features |
| Intel UHD Graphics | Integrated | Shared | Share CPU TDP | DirectX® 12.1 |
| Intel Iris Xe Graphics | Integrated | Shared | Share CPU TDP | DirectX 12.1 |
Monitor Support
Monitor Support
- Models with non-vPro®: supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB4®) • HDMI supports up to 3840x2160@60Hz • USB4 supports up to 5120x3200@60Hz
- Models with Intel vPro: supports up to 4 independent displays (native display and 3 external monitors via HDMI and Thunderbolt™) • HDMI supports up to 3840x2160@60H • Thunderbolt supports up to 5120x3200@60Hz
Chipset
Memory
Max Memory[1]
- 4GB soldered memory, not upgradable
- 8GB soldered memory, not upgradable
- 16GB soldered memory, not upgradable
Memory Slots**
- Memory soldered to systemboard, no slots, single-channel (4GB models)
- Memory soldered to systemboard, no slots, dual-channel (8GB or 16GB models)
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1][2]
- One drive, up to 256GB M.2 2242 SSD
- 64GB eMMC 5.1 on systemboard
- 128GB eMMC 5.1 on systemboard
Storage Type**
| Disk Type | Interface | Offering | Security |
| Flash Memory | eMMC 5.1 | 64GB / 128GB | - |
| M.2 2242 SSD | PCIe NVMe®, PCIe 4.0 x4 | 256GB | Opal 2.0 |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
- System has one eMMC on systemboard or one M.2 2242 SSD exclusively
Removable Storage
Multi-Media
Battery
Battery
Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Battery Life[1]
Configuration 1 (max battery life)
Google Power Load Test: 11.4 hr @80nits
Alternate configuration 2
Google Power Load Test: 11.0 hr @80nits
Alternate configuration 3
Google Power Load Test: 10.8 hr @80nits
Notes:
- Configuration 1 (max battery life): FHD (non-touch), Intel Pentium® 8505U, 4GB LPDDR4x, Google Chrome OS, 57Wh battery Alternate configuration 2: FHD (non-touch), Intel i5-1235U, 8GB LPDDR4x, Google Chrome OS, 57Wh battery Alternate configuration 3: FHD (touch), Intel i7-1265U, 16GB LPDDR4x, Google Chrome OS, 57Wh battery All battery life claims are approximate maximum and based on results usingGoogle Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use.
Power Adapter
Power Adapter**[1]
- 45W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 45W USB-C (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle (L/R/U/D) |
| 14" | FHD (1920x1080) | None | IPS | 250 nits | Anti-glare | 16:9 | 800:1 | 45% NTSC | 85°/85°/85°/85° |
| 14" | FHD (1920x1080) | Multi-touch | IPS | 300 nits | Anti-glare | 16:9 | 800:1 | 45% NTSC | 85°/85°/85°/85° |
Notes:
- California Electronic Waste Recycling Fee In California USA, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, please go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
UltraNav™
TrackPoint® pointing device and Mylar® surface multi-touch touchpad, 56 x 115 mm (2.24 x 4.53 inches)
Mechanical
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
- 6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation.
Ports[1]
Standard Ports
- 2x USB 3.2 Gen 2
- 1x HDMI, up to 4K/60Hz
- 1x microSD card reader
- 1x Headphone / microphone combo jack (3.5mm)
Optional Ports***
- 1x Nano-SIM card slot (WWAN support models)
- 2x Thunderbolt 4 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4) (vPro models)
- 2x USB4 20Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4) (non-vPro models)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
Docking
Docking
Various docking solutions supported via Thunderbolt or USB-C.
For more compatible docking solutions, please visit Docking for ThinkPad® C14 Gen 1 Chromebook
Security & Privacy
Security
Manageability
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Operating Environment
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- EPEAT is registered where applicable, please see https://www.epeat.net for registration status by country.
Other Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
