Processor
Processor Family
Intel® Core™ 3 / 5 / 7 Processor (Series 1)
Processor**
| Core 3 100U | 6 (2 P-core + 4 E-core) | 8 | P-core 1.2GHz / E-core 900MHz | P-core 4.7GHz / E-core 3.3GHz | 10MB Intel® Smart Cache | Intel® Graphics | - |
| Core 5 120U | 10 (2 P-core + 8 E-core) | 12 | P-core 1.4GHz / E-core 900MHz | P-core 5.0GHz / E-core 3.8GHz | 12MB Intel® Smart Cache | Intel® Graphics | Intel® vPro® Essentials |
| Core 7 150U | 10 (2 P-core + 8 E-core) | 12 | P-core 1.8GHz / E-core 1.2GHz | P-core 5.4GHz / E-core 4.0GHz | 12MB Intel® Smart Cache | Intel® Graphics | Intel® vPro® Essentials |
Operating System
Operating System**
- Windows® 11 IoT Enterprise LTSC 2024
- Ubuntu Core
- Ubuntu Server
- No preload operating system
Graphics
Graphics
| Intel® UHD graphics | Integrated | 4096x2304@60Hz(HDMI®) | 4x HDMI® | DirectX® 12.1 |
Monitor Support
Monitor Support
Supports up to 4independent displays via onboard ports (HDMI®)
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory
Up to 48GB DDR5-5200
Memory Slots
One DDR5 SODIMM slot
Notes:
| [1] Installed memory is actually DDR5-5600 but may run as DDR5-5200 depending on the memory support capability of Intel®.Product |
Storage
Max Storage Support[1]
Up to two drives, 1x M.2 SATA SSD + 1x M.2 SSD
• M.2 2280 SSD up to 2TB each
• M.2 2242 SATA SSD up to 1TB each
Storage Type***
| M.2 2242 SSD | SATA 6Gb/s | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | Opal 2.0 |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 5.0 x4 | Opal 2.0 |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC888S-VD2-GR codec
Power Supply
Power Supply
| No power adapter | - | - | - |
| 90W | Adapter | 88% | 90W, for operating temperature 0~40°C
72W, for operating temperature 0~50°C |
Mechanical
Dimensions (WxDxH)[1]
179 x 125 x 38.7 mm (7.05 x 4.92 x 1.52 inches)
Packaging Dimensions (WxDxH)
321 x 283 x 101 mm (12.64 x 11.14 x 3.98 inches)
Weight[2]
Around 1.1 kg (2.43 lbs)
Packaging Weight
2 kg (4.41 lbs)
Expansion Slots
Three M.2 slots (Key E for WLAN, Key M for SSD, Key B for SATA SSD)
Mounting**
- VESA mount bracket kit, supports VESA mount 75mm and 100mm
- DIN rail mount bracket kit
- None
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet***
- 2.5GbE, Intel® Ethernet Controller I226-V, 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN, vPro®
WLAN + Bluetooth®**[1]
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- No WLAN and Bluetooth®
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country.
Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |

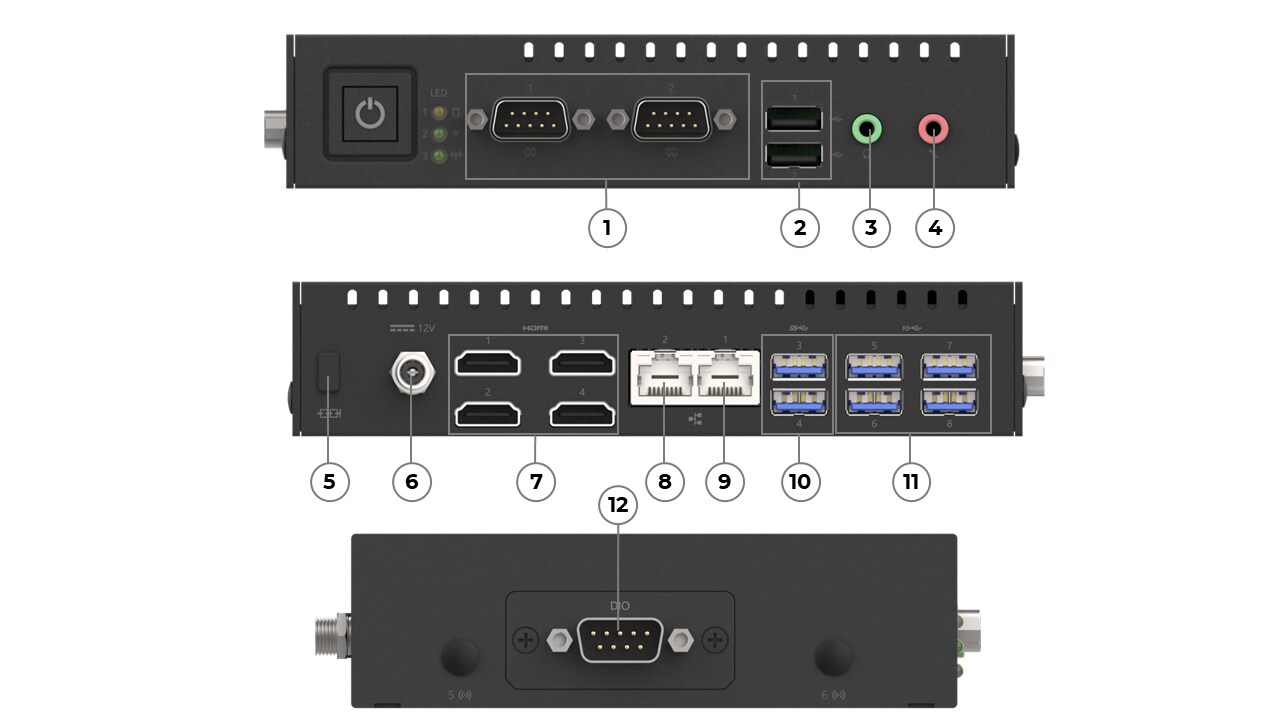

Ports[1]
Front Ports
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x headphone / microphone combo jack (3.5mm)
- 2x serial (RS232 / RS422 / RS485, BIOS selectable)
- 1x microphone-in (3.5mm)
Rear Ports
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 4x HDMI® 2.1 TMDS
- 1x 12V DC-in with lockable DC jack
- 1x 2.5GbE Ethernet (RJ-45)
- 1x Ethernet (RJ-45)
Optional Left Ports
Flexible I/O support one of DIO (4DI / 4DO) or CAN (OPEN)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
Thunderbolt™ 5: 80 Gbit/s (bidirectional), up to 120 Gbit/s in bandwidth boost mode for video-intensive applications.StructureLevel2 |
Security
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Other Security
Hardware Watch Dog Timer
BIOS Security
- Administrator password
- Hard disk password
- Secure boot
Operating Environment
Temperature
- Operating: IEC60068-2-2 Test Ab: Cold, IEC 60068-2-2 Test Bb: Dry heat, 0~50°C
- Storage: IEC60068-2-3 Test Ca: Damp heat, steady state, -30°C (-22°F) to 70°C (158°F)
Relative Humidity
Relative humidity operating: IEC 60068-2-56 Test:Cb Damp heat, steady state 95%@40°C non-condensing
Shock Protection
IEC 60068-2-27, shock, operating, 30G / 11ms, half sine
Vibration Protection
IEC 60068-2-64, Vibration, Operating, 2Grms, random, 5 ~ 500Hz, 1hr/axis
MTBF Prediction
MTBF @50°C
Ingress Protection
IP50 standard[1]
Notes:
| [1] To support IP50, IP50 dust cover kits are needed.FeatureValue |
Green Certifications
Green Certifications
- GREENGUARD®
- RoHS compliant
Other Certifications
Other Certifications
Red Hat Enterprise Linux Certified
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude] 500.6, High Temperature 501.7, Low Temperature 502.7, Temperature Shock 503.7, Humidity 507.6, Sand and Dust 510.7, Vibration 514.8, Shock 516.8, Fungus 508.8, Solar Radiation 505.7)
