Processor
Processor Family
Snapdragon® X
Processor
| Snapdragon® X X1-26-100 | 8 | 3.0GHz | 30MB Total | Qualcomm® Adreno™ GPU | Qualcomm® Hexagon™ NPU |
AI (Artificial Intelligence)
AI PC Category
Copilot+ PC[1]
NPU
Integrated Qualcomm® Hexagon™ NPU, up to 45 TOPS
Notes:
| [1] The AI features of Copilot+ PC require Windows® 11 to be installed.FeatureValue |
Operating System
Operating System**
- Windows® 11 Pro (on ARM)
- Windows® 11 Home (on ARM)
- Windows® 11 Home Single Language (on ARM)
- No preload operating system
Graphics
Graphics
| Qualcomm® Adreno™ GPU | Integrated | Shared | 4096x2160@60Hz(HDMI®),
4096x2160@60Hz(DP),
1920x1080@60Hz(VGA) | HDMI® 2.1 TMDS, DP 1.4a HBR2, 1x optional port (2nd DP 1.4a HBR2 / VGA) | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 3 independent displays via (onboard DP, onboard HDMI®, and one optional port [VGA / 2nd DP])
Chipset
Chipset
Qualcomm® SoC (System on Chip) platform
Memory
Max Memory[1]
- 16GB soldered memory, not upgradable
- 32GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Storage Support[1]
Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 1TB
Storage Type
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | Opal 2.0 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Qualcomm® WCD9385 codec and WSA8845 amplifier
Speakers
Single speaker, 2W x1
Power Supply
Power Supply**
| 65W | Adapter | 89% | Autosensing |
| 90W | Adapter | 89% | Autosensing |
| No power supply | - | - | - |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), black
- Wireless EOS Keyboard, black
- No keyboard
Mouse**
- Wireless EOS Mouse, black
- Lenovo® Calliope Mouse (USB connector), black
- Lenovo® Fingerprint Mouse (USB connector), black
- No mouse
Mechanical
Dimensions (WxDxH)[1]
| Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches) |
| Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
Packaging Dimensions (WxDxH)**
- Tiny with Calliope keyboard: 488 x 246 x 125 mm (19.21 x 9.68 x 4.92 inches)
- Tiny only: 240 x 250 x 186 mm (9.45 x 9.84 x 7.32 inches)
- Tiny with EOS keyboard: 528 x 246 x 125 mm (20.79 x 9.68 x 4.92 inches)
Weight[2]
Around 1.13 kg (2.49 lbs)
Packaging Weight**
- Tiny only: 2.03 kg (4.48 lbs)
- Tiny with EOS keyboard: 2.93 kg (6.46 lbs)
- Tiny with Calliope keyboard: 2.39 kg (5.27 lbs)
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)
EOU
(Optional) toolless chassis open (toolless chassis screw required)
Mounting
- Supports VESA mount 100mm
- None
Others
(Optional) Power adapter cage
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Onboard Ethernet
Gigabit Ethernet, Realtek® RTL8111K, 1x RJ-45
WLAN + Bluetooth®
- Qualcomm® Wi-Fi® 6E NFA765A, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3
- No WLAN and Bluetooth®

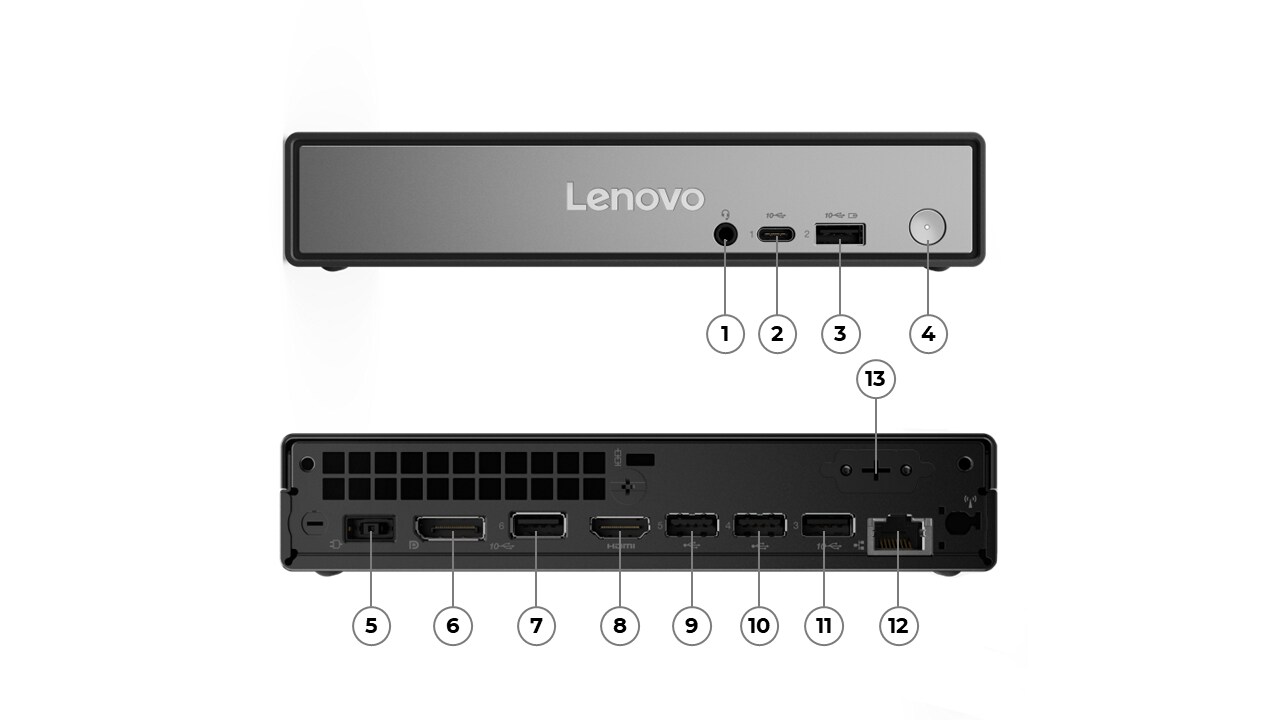

Ports[1]
Front Ports
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x headphone / microphone combo jack (3.5mm)
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@0.9A charging
Rear Ports[2]
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4a (HBR2)
- 1x Ethernet (GbE RJ-45)
- 1x Power connector
Optional Rear Ports
Punch out port (one of VGA / DisplayPort™ 1.4a HBR2)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
| [2] For video ports on discrete graphics, please see graphics section.Classification Default |
Security
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
No chassis intrusion switch
Fingerprint Reader
- Touch style fingerprint reader on mouse
- No fingerprint reader
BIOS Security
- Hard disk password
- Supervisor password
- Absolute persistence module
- Boot sequence control
- Boot without keyboard and mouse
- Configuration change detection
- Secure wipe
- Secure boot
- Self-healing BIOS
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Sustainability
Material[1]
90% PIC recycled plastic EPE cushion or 90% PCC recycled plastic thermal shell with 30% OBP material
30% OBP used in bag
FSC certified paper in packaging
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.
PIC: Post Industry Content, recycled materials from internal factories.
EPE: Expanded Polyethylene.
OBP: Ocean Bound Plastic, reducing plastic spill into the sea.
FSC: Forest Stewardship Council.ProductLine Default |
Green Certifications[1]
Green Certifications
- (Optional) ENERGY STAR® 9.0
- (Optional) EPEAT™ Gold Registered
- GREENGUARD®
- RoHS compliant
- TCO Certified 10.0
- VOC Report
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
Other Certifications
Other Certifications
(Optional) TÜV Rheinland® Ultra Low Noise
