Processor
Processor Family
Intel® Core™ Ultra 5 / 7 Processor (Series 2)
Processor**
| Core Ultra 5 226V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 2.1GHz | P-core 4.5GHz / LP E-core 3.5GHz | 8MB Intel® Smart Cache | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost, up to 40 TOPS | Up to 97 TOPS |
| Core Ultra 7 256V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.2GHz / LP E-core 2.2GHz | P-core 4.8GHz / LP E-core 3.7GHz | 12MB Intel® Smart Cache | Intel® Arc™ Graphics 140V, up to 64 TOPS | Intel® AI Boost, up to 47 TOPS | Up to 115 TOPS |
AI (Artificial Intelligence)
AI PC Category
Copilot+ PC
AI Performance**
- Up to 115 overall TOPS
- Up to 97 overall TOPS
NPU**
- Integrated Intel® AI Boost, up to 47 TOPS
- Integrated Intel® AI Boost, up to 40 TOPS
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Intel® Arc™ Graphics 130V | Integrated | Shared | 53 TOPS | 4096x2304@60Hz(HDMI®),
4096x2304@60Hz(DP),
1920x1200@60Hz(VGA) | 1x DP 1.4b, 1x HDMI® 2.1 TMDS, 1x optional punch out port (1x VGA / 1x HDMI® 2.1 TMDS / 1x DP 1.4b) | DirectX® 12 |
| Intel® Arc™ Graphics 140V | Integrated | Shared | 64 TOPS | 4096x2304@60Hz(HDMI®),
4096x2304@60Hz(DP),
1920x1200@60Hz(VGA) | 1x DP 1.4b, 1x HDMI® 2.1 TMDS, 1x optional punch out port (1x VGA / 1x HDMI® 2.1 TMDS / 1x DP 1.4b | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 3 independent displays via (onboard DP, onboard HDMI®, and one optional port [VGA / 2nd DP / 2nd HDMI®])
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory[1]
16GB soldered LPDDR5x-8533 MoP, not upgradable
Memory Slots
Memory soldered to systemboard, no slots
Memory Type
LPDDR5x-8533, MoP (Memory on Package) memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Max Storage Support[1]
One drive, up to 1TB M.2 2280 SSD
Storage Type**
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | Opal 2.0 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio
Speakers
Single speaker, 2W x1
Power Supply
Power Supply**[1]
| 65W | Adapter | 89% | Autosensing |
| 90W | Adapter | 89% | Autosensing |
| 135W | Adapter | 89% | Autosensing |
Notes:
| [1] When work with TIO monitor, an appropriate power adapter is needed. Customer may need to:
• Order a Tiny for TIO MT (13HT, 13HU) models
• Or order an additional 135W power adapter, if original power adapter is 90W or 65W
For detailed information, please refer to ThinkCentre® neo 50q Gen 6 Adapter MatrixProduct |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), black
- Wireless EOS Keyboard, black
- No keyboard
Mouse**
- Lenovo® Calliope Mouse (USB connector), black
- Lenovo® Fingerprint Mouse (USB connector), black
- Wireless EOS Mouse, black
- No mouse
Mechanical
Dimensions (WxDxH)[1]
| Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches) |
| Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
Packaging Dimensions (WxDxH)**
- Tiny only: 242 x 250 x 187 (9.52 x 9.84 x 7.36)
- Tiny with EOS keyboard: 532 x 250 x 128 mm (20.94 x 9.84 x 5.04 inches)
- Tiny with Calliope keyboard: 492 x 250 x 128 mm (19.37 x 9.84 x 5.04 inches)
Weight[2]
Around 1.1 kg (2.43 lbs)
Packaging Weight**
- Tiny only: 2.6 kg (5.7 lbs)
- Tiny with EOS keyboard: 3.4 kg (7.5 lbs)
- Tiny with Calliope keyboard: 3.6 kg (7.9 lbs)
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
EOU
- (Optional) toolless chassis open (toolless chassis screw required) and toolless M.2 SSD assembly / removal
- No support
Mounting
- Supports VESA mount 100mm
- None
Others
(Optional) Power adapter cage
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®**[1]
- MediaTek Wi-Fi® 6 MT7920, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- MediaTek Wi-Fi® 7 MT7925, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
- Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
- No WLAN and Bluetooth®
Onboard Ethernet
Gigabit Ethernet, Realtek® RTL8111K-CG, 1x RJ-45
Optional Ethernet
- 2.5 Gigabit Ethernet, Realtek® RTL8125BGS, 1x RJ-45
- No optional Ethernet
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country.
Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |

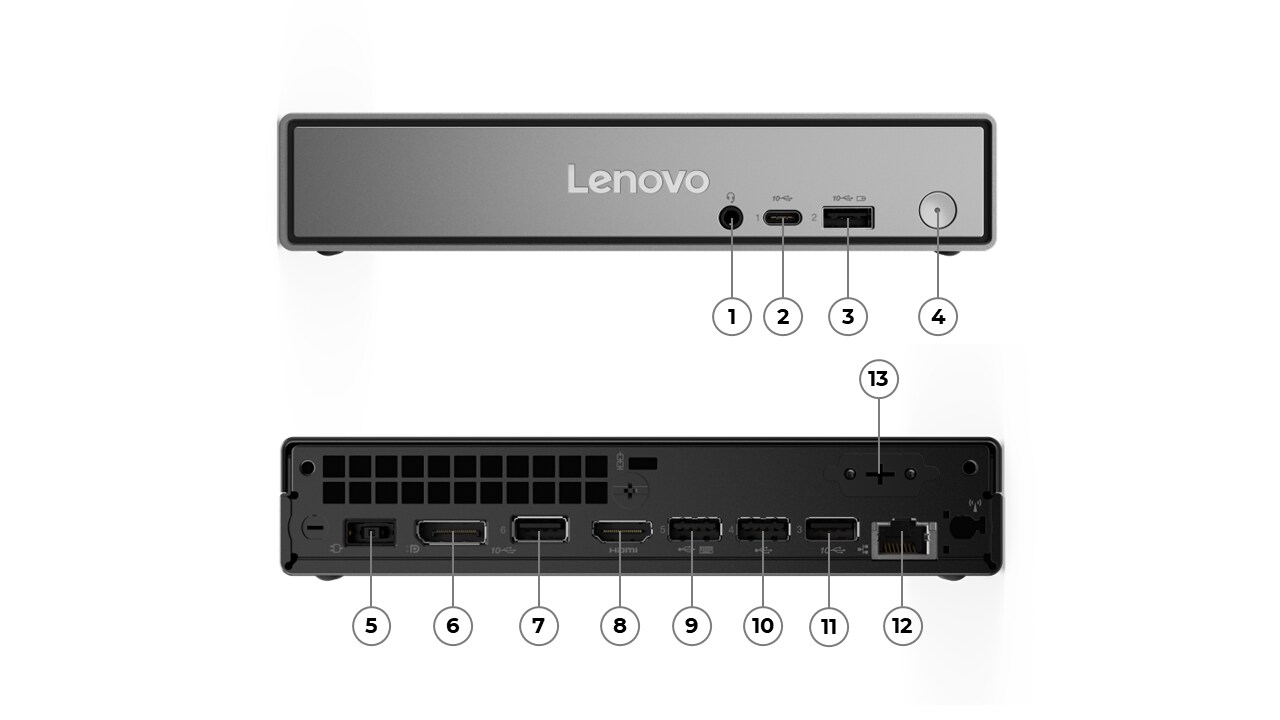

Ports[1]
Front Ports
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports
- 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4b
- 1x Ethernet (GbE RJ-45)
- 1x Power connector
Optional Rear Ports
Punch out port (one of VGA / HDMI® 2.1 TMDS / DisplayPort™ 1.4b / serial / 2.5GbE RJ-45)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
Thunderbolt™ 5: 80 Gbit/s (bidirectional), up to 120 Gbit/s in bandwidth boost mode for video-intensive applications.StructureLevel2 |
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch
BIOS Security
- Administrator password
- Hard disk password
- Absolute persistence module
- Boot sequence control
- Boot without keyboard and mouse
- Cover tamper detected
- Configuration change detection
- Individual USB port disablement
- Intel® BIOS guard
- Never crash Self-healing
- Secure wipe
- Secure boot
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Green Certifications[1]
Green Certifications
- (Optional) ENERGY STAR® 9.0
- RoHS compliant
- TCO Certified, generation 10
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
Other Certifications
Other Certifications
(Optional) TÜV Rheinland® Ultra Low Noise
