Processor
Processor Family
Intel® Core™ Ultra 5 / 7 Processor (Series 2)
Processor
| Core Ultra 5 225T | 10 (6 P-core + 4 E-core) | 10 | P-core 2.5GHz / E-core 1.9GHz | P-core 4.9GHz / E-core 4.4GHz | 22MB L2 Cache / 20MB Intel® Smart Cache | Intel® Graphics | Intel® AI Boost |
| Core Ultra 5 235T | 14 (6 P-core + 8 E-core) | 14 | P-core 2.2GHz / E-core 1.6GHz | P-core 5.0GHz / E-core 4.4GHz | 26MB L2 Cache / 24MB Intel® Smart Cache | Intel® Graphics | Intel® AI Boost |
| Core Ultra 5 245T | 14 (6 P-core + 8 E-core) | 14 | P-core 2.2GHz / E-core 1.7GHz | P-core 5.1GHz / E-core 4.5GHz | 26MB L2 Cache / 24MB Intel® Smart Cache | Intel® Graphics | Intel® AI Boost |
| Core Ultra 7 265T | 20 (8 P-core + 12 E-core) | 20 | P-core 1.5GHz / E-core 1.2GHz | Max Turbo up to 5.3GHz / P-core 5.2GHz / E-core 4.6GHz | 36MB L2 Cache / 30MB Intel® Smart Cache | Intel® Graphics | Intel® AI Boost |
AI (Artificial Intelligence)
NPU**
- Integrated Intel® AI Boost, up to 13 TOPS
- (Optional) Discrete NPU card, up to 30 TOPS
Notes:
| [1] AI PCs have a NPU capable of 10+ TOPs to run the Copilot assistant by pressing the optional Microsoft® Copilot key or using Win + C.FeatureValue |
Operating System
Operating System
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- Windows® 11 IoT Enterprise LTSC 2024
- Ubuntu Linux
- No preload operating system
Graphics
Graphics
| Integrated Intel® Graphics | Integrated | Shared | 1920x1080@60Hz(VGA),
4096x2160@60Hz(DP 1.4a HBR2),
4096x2160@60Hz(HDMI® TMDS),
7680x4320@60Hz(HDMI® FRL),
4096x2160@60Hz(USB-C® with DP function) | 1x HDMI® 2.1 TMDS, 1x DP 1.4a HBR2,
optional port 1 (VGA / HDMI® 2.1 TMDS / HDMI® 2.1 FRL / DP 1.4a HBR2 / USB-C® with DP 1.4a HBR2 function), optional port 2 (VGA / HDMI® 2.1 TMDS / HDMI® 2.1 FRL / DP 1.4a HBR2) | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 4 independent displays via (onboard DP, onboard HDMI®, optional punch out port 1 [VGA / HDMI® 2.1 TMDS / HDMI® 2.1 FRL / DP 1.4a HBR2 / USB-C® with DP 1.4a HBR2 function], and optional punch out port 2 [VGA / HDMI® 2.1 TMDS / HDMI® 2.1 FRL / DP 1.4a HBR2])
Chipset
Chipset
Intel® Q870 chipset
Memory
Max Memory[1]
Up to 64GB (2x 32GB DDR5 SO-DIMM)
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Storage Support[1]
Up to two drives, 2x M.2 2280 SSD
• M.2 2280 SSD up to 2TB
Storage Type***
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | Opal |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 Performance | Opal |
RAID
RAID 0/1 support (RAID preset only available via special bid models)
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
Speakers**
- Premium single speaker, 2W x1
- Single speaker, 2W x1
Power Supply
Power Supply**
| 65W | Adapter | 89% | Autosensing |
| 90W | Adapter | 89% | Autosensing |
| 135W | Adapter | 90% | Autosensing |
| No power adapter | - | - | - |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), black
- Lenovo® Traditional Keyboard (USB connector), black
- Wireless EOS Keyboard, black
- No keyboard
Mouse**
- Wireless EOS Mouse, black
- Lenovo® Calliope Mouse (USB connector), black
- No mouse
Mechanical
Dimensions (WxDxH)[1]
| Tiny only | 179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet) |
Packaging Dimensions (WxDxH)
250 x 490 x 128mm (9.84 x 19.29 x 5.04 inches)
Weight[2]
| Tiny only | Around 1.18 kg (2.6 lbs) |
Packaging Weight
Around 3.2 kg (7.05 lbs)
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD / discrete NPU)
EOU
(Optional) toolless chassis open (toolless chassis screw required)
Mounting
- Supports VESA mount 100mm
- None
Others
- (Optional) Dust filter
- (Optional) Power adapter cage
- Supports Smart Power On
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®**
- Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
- Realtek® Wi-Fi® 6E RTL8852CE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
- Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4
- No WLAN and Bluetooth®
Onboard Ethernet
Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ45, supports Wake-on-LAN
Optional Ethernet
- 2.5 Gigabit Ethernet, Realtek® RTL8125BGS, 1x RJ-45, supports Wake-on-LAN
- No optional Ethernet

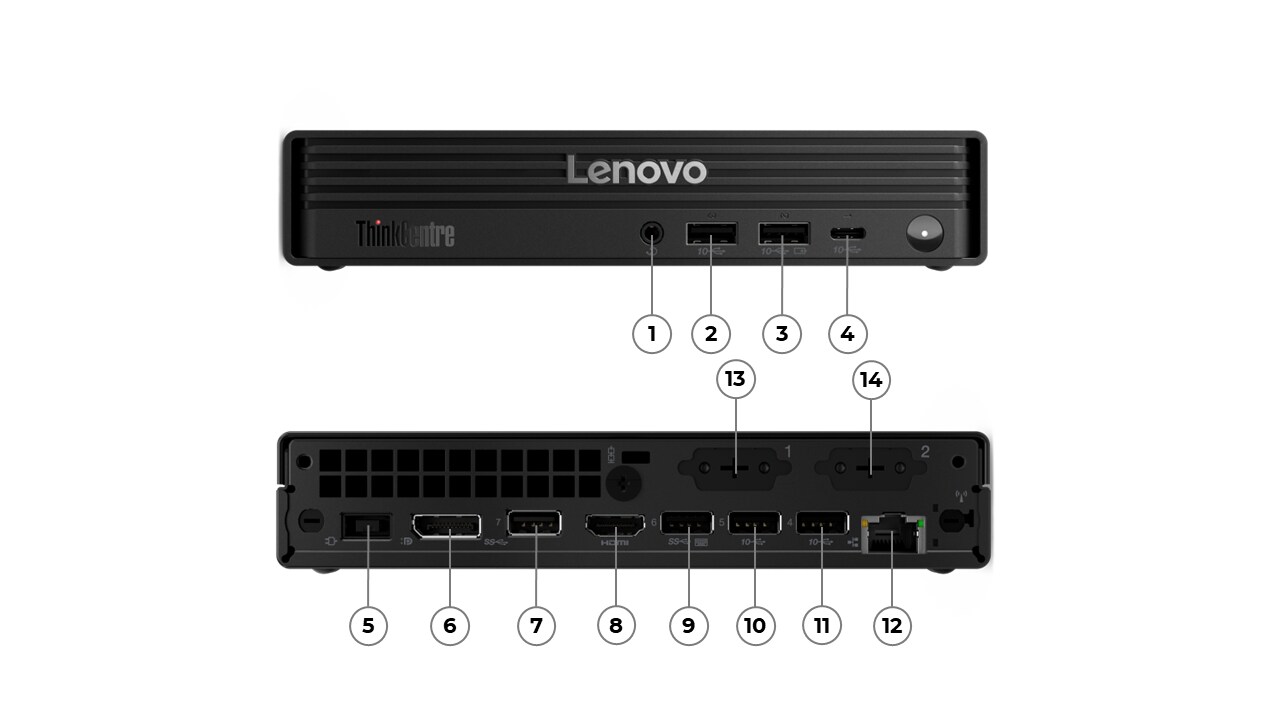

Ports[1]
Front Ports
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Always On and 5V@2.1A charging
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4a (HBR2)
- 1x Ethernet (GbE RJ-45)
Optional Rear Ports
- Punch out port 1 (one of VGA / DisplayPort™ 1.4a HBR2 / HDMI® 2.1 TMDS/ HDMI® 2.1 FRL / serial / 2.5GbE RJ-45 / USB-C® (USB 10Gbps / USB 3.2 Gen 2) with DisplayPort™ 1.4a HBR2 function and 100W PD in)
- Punch out port 2 (one of VGA / DisplayPort™ 1.4a HBR2 / HDMI® 2.1 TMDS/ HDMI® 2.1 FRL / serial / 2.5GbE RJ-45 / Thunderbolt™ 4 (USB4® 40Gbps))
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), occupies port 1 and 2
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security
Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch[1]
Fingerprint Reader
No fingerprint reader
BIOS Security
- Administrator password
- Hard disk password
- Power-on password
- Absolute persistence module
- Boot sequence control
- Boot without keyboard and mouse
- Cover tamper detected
- Certificate-based BIOS authentication
- Configuration change detection
- Individual USB port disablement
- Intel® BIOS guard
- Secure wipe
- Secure boot
- Self-healing BIOS
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Notes:
| [1] Chassis intrusion switch is hardware ready function and needs to be special bid or manually enabled in BIOS.FeatureValue |
Sustainability
Material
60% PIC recycled plastic with 30% OBP used in cushion
30% OBP used in bag
FSC certified paper in packaging
Green Certifications[1]
Green Certifications
- (Optional) ENERGY STAR® 9.0
- (Optional) EPEAT™ Gold Registered
- RoHS compliant
- TCO Certified 10.0
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
Other Certifications
Other Certifications
(Optional) TÜV Rheinland® Ultra Low Noise
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
