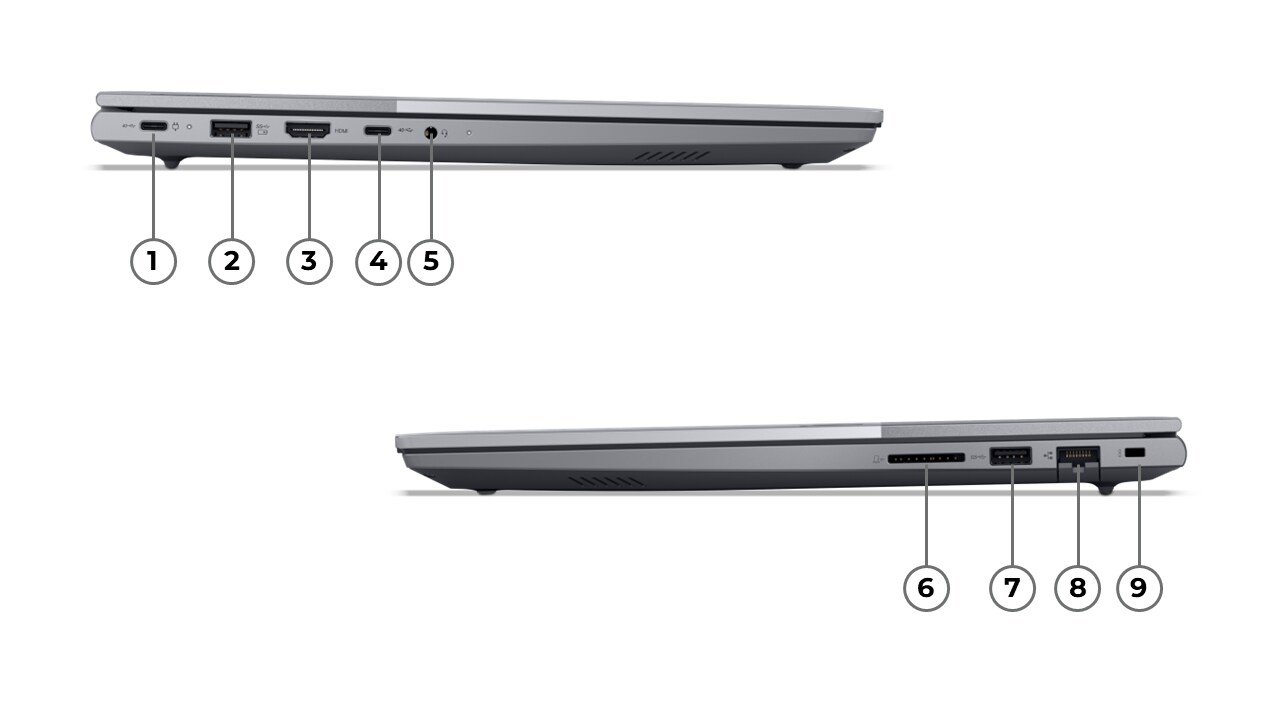

Overview
| 1. | USB-C (USB4 40Gbps), USB PD 3.0 & DP1.4a | 6. | SD card reader |
| 2. | USB-A (USB 5Gbps), Always On | 7. | USB-A (USB 5Gbps) |
| 3. | HDMI | 8. | Ethernet (RJ-45) |
| 4. | USB-C (USB4 40Gbps), USB PD 3.0 & DP 1.4a | 9. | Kensington Nano Security Slot |
| 5. | Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU | Overall TOPS |
| AMD Ryzen™ 3 210 | 4 | 8 | 3.0GHz | 4.7GHz | 4MB L2 / 8MB L3 | AMD Radeon™ 740M | - | - |
| AMD Ryzen™ 5 220 | 6 | 12 | 3.2GHz | 4.9GHz | 6MB L2 / 16MB L3 | AMD Radeon™ 740M | - | - |
| AMD Ryzen™ 7 250 | 8 | 16 | 3.3GHz | 5.1GHz | 8MB L2 / 16MB L3 | AMD Radeon™ 780M | AMD Ryzen™ AI, up to 16 TOPS | Up to 38 TOPS |
AI (Artificial Intelligence)
Notes:
| [1] Only for the models with AMD Ryzen™ 7 250 processor.Product |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Graphics | Type | Memory | TGP | Key Features |
| AMD Radeon™ 740M | Integrated | Shared | Share CPU TDP | DirectX® 12 |
| AMD Radeon™ 780M | Integrated | Shared | Share CPU TDP | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB4®)
• HDMI® supports up to 4096x2160@60Hz
• USB4® supports up to 5120x2880@60Hz
Chipset
Memory
Notes:
| [1] Maximum memory 64GB DDR5-5600 is only to test technical readiness of notebook. Available memory to sell would vary.Product |
Storage
Max Storage Support[1]
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 2TB
• M.2 2280 SSD up to 2TB
Notes:
| [1] The system supports dual SSD via two M.2 slots, but Lenovo® offers only one SSD configuration with a second slot for user self-expansion. The max storage capacity is only technical readiness and may be different from current Lenovo® storage offerings.Product |
| [2] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
Removable Storage
Multi-Media
Camera**
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus
- 5.0MP, with privacy shutter, fixed focus
Battery
Battery**
- 48Wh Rechargeable Li-ion Battery, supports Rapid Charge Pro (charge up to 50% in 30min)
- 71Wh Rechargeable Li-ion Battery
Battery Life[1]
Configuration 1
MobileMark® 30: up to 13.68 hr @250nits
Local video playback: up to 18.53 hr @150nits
Configuration 2
MobileMark® 30: up to 10.03 hr @250nits
Local video playback: up to 13.51 hr @150nits
Notes:
| [1] Configuration 1: WUXGA (non-touch), AMD Ryzen™ 7 250, 16GB DDR5, Win 11, 71Wh battery, best power efficiency power mode Configuration 2: WUXGA (non-touch), AMD Ryzen™ 5 220, 16GB DDR5, Win 11, 48Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using MobileMark® 30, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level). Actual battery life will vary and depends on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to Microsoft® link for more information about the Windows® Performance power slider.Product |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Special Features
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 16" | WUXGA (1920x1200) | Non-touch | IPS[1] | 400nits | Anti-glare | 16:10 | 1000:1 | 45% NTSC | 60Hz | 89° / 89° / 89° / 89° | TÜV Low Blue Light (Software) |
| 16" | WUXGA (1920x1200) | In-cell touch | IPS[2] | 400nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 120Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0 |
| 16" | WQXGA (2560x1600) | Non-touch | IPS[3] | 400nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 120Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0, TCON |
Notes:
| [1], [2], [3] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[2]
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [2] Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
| [3] Wake-on-LAN needs the power adapter plugged in.ProductLine Default |
Ports[1]
Standard Ports
- 1x USB-A (USB 5Gbps)
- 2x USB-C® (USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 1.4a
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x SD card reader
- 1x USB-A (USB 5Gbps), Always On
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for ThinkBook® 16 G9 AHP
Security & Privacy
Security
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
Service
Accessories
Bundled Accessories
Bundled Accessories***[1]
- Lenovo® 16-inch Laptop Topload T210 Black (ECO)
- Lenovo® Essential Wired Mouse (Plastic Free)
- Lenovo® USB-A Wired Stereo Headset Gen 2 (Plastic Free)
- ThinkBook® Bluetooth® Silent Mouse (Plastic Free)
- None
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for ThinkBook® 16 G9 AHP.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
30% PCC recycled plastic used in the battery pack enclosure
50% PCC recycled plastic used in key caps
30% PCC recycled plastic used in speaker
90% PCC recycled plastic used in standard 65W adapter
Plastic free packaging (for EMEA & NA)
Dry pressed pulp cushion
90% recycled content in OBP bag or bamboo fiber bag
FSC certified content in carton box
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified, generation 10
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
