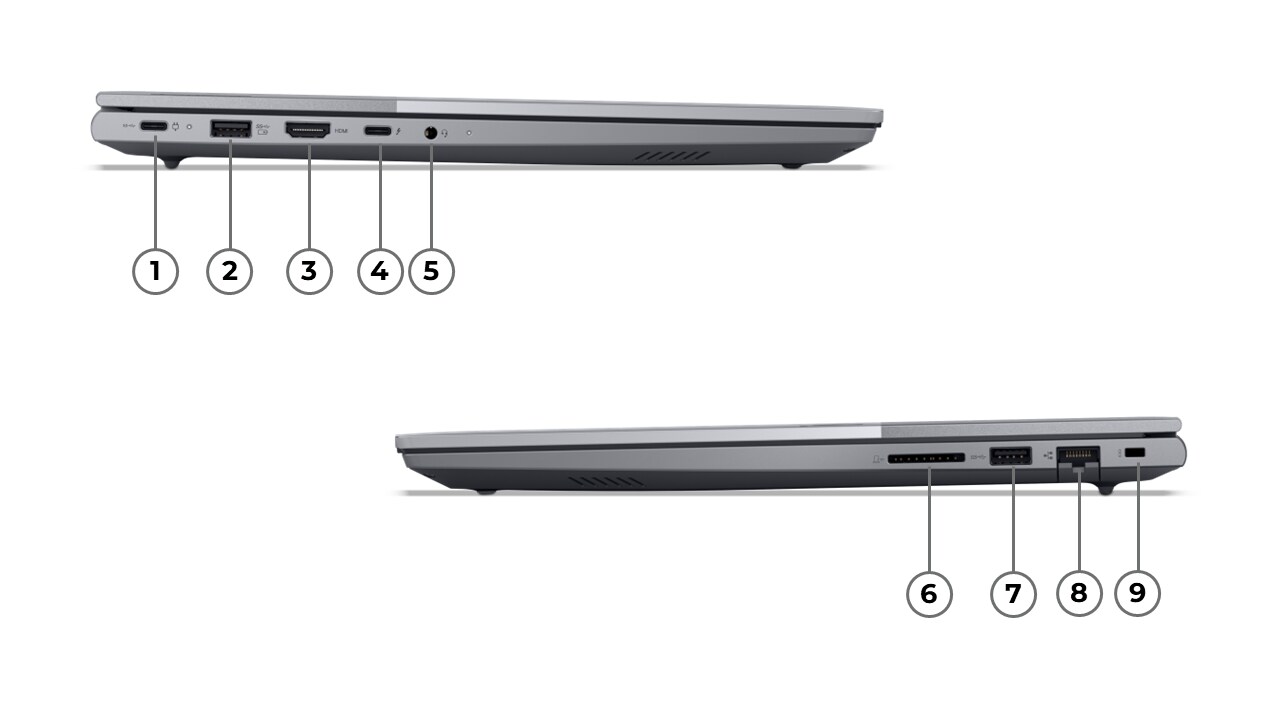

Overview
| 1. | USB-C (USB 10Gbps), with PD 3.0 & DP 1.4 | 6. | SD card reader |
| 2. | USB-A (USB 5Gbps), Always On | 7. | USB-A (USB 5Gbps) |
| 3. | HDMI | 8. | Ethernet (RJ-45) |
| 4. | Thunderbolt 4 | 9. | Kensington Nano Security Slot |
| 5. | Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 5 225H | 14 (4 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 1.7GHz / E-core 1.3GHz / LPE-core 700MHz | P-core 4.9GHz / E-core 4.3GHz / LPE-core 2.5GHz | 18MB | Intel® Arc™ 130T GPU, up to 63 TOPS | Intel® AI Boost |
| Core Ultra 5 225U | 12 (2 P-core + 8 E-core + 2 LPE-core) | 14 | P-core 1.5GHz / E-core 1.3GHz / LPE-core 700MHz | P-core 4.8GHz / E-core 3.8GHz / LPE-core 2.4GHz | 12MB | Intel® Graphics | Intel® AI Boost |
| Core Ultra 7 255H | 16 (6 P-core + 8 E-core + 2 LPE-core) | 16 | P-core 2GHz / E-core 1.5GHz / LPE-core 700MHz | P-core 5.1GHz / E-core 4.4GHz / LPE-core 2.5GHz | 24MB | Intel® Arc™ 140T GPU, up to 74 TOPS | Intel® AI Boost |
Notes:
| [1] Intel® Arc™ graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.Product |
AI (Artificial Intelligence)
Operating System
Operating System**[1]
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Notes:
| [1] Windows® 11 Pro Education license can be requested for EMEA Education Customers only with limited specs. Any request please contact Lenovo® Sales Representative for more information.Product |
Graphics
Graphics**
| Graphics | Type | Memory | TGP | Key Features |
| Intel® Arc™ 130T GPU[1] | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Arc™ 140T GPU[2] | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
| Intel® Graphics | Integrated | Shared | Share CPU TDP | DirectX® 12.2 |
Notes:
| [1], [2] Intel® Arc™ graphics only available on select H-series Intel® Core™ Ultra processor powered systems with at least 16GB of system memory in a dual-channel configurations, otherwise it will function as Intel® Graphics.FeatureValue |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, USB-C® and Thunderbolt™)
• HDMI® supports up to 4096x2160@60Hz
• USB-C® supports up to 5120x3200@60Hz
• Thunderbolt™ supports up to 5120x3200@60Hz
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
Chipset
Memory
Notes:
| [1] Maximum memory is only to test technical readiness of notebook. Available memory to sell would vary.Product |
Storage
Notes:
| [1] The system supports dual SSD via two M.2 slots, but Lenovo® offers only one SSD configuration with a second slot for user self-expansion. The max storage capacity is only technical readiness and may be different from current Lenovo® storage offerings.Product |
Removable Storage
Multi-Media
Camera**
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus
- FHD 1080p, with privacy shutter, fixed focus
Battery
Battery**
- Integrated Li-Polymer 45Wh battery, supports Rapid Charge Pro (charge up to 50% in 30min)
- Integrated Li-Polymer 71Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 100W AC adapter
Max Battery Life[1]
- Models with 45Wh battery: MobileMark® 30@250nits: 7.7 hr Local video (1080p) playback@150nits: 13.1 hr
- Models with 71Wh battery: MobileMark® 30@250nits: 14 hr Local video (1080p) playback@150nits: 19.5 hr
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Special Features
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 16" | WUXGA (1920x1200) | None | IPS[2] | 300nits | Anti-glare | 16:10 | 1000:1 | 45% NTSC | 60Hz | 89° / 89° / 89° / 89° | TÜV Low Blue Light (Software) |
| 16" | WUXGA (1920x1200) | Multi-touch | IPS[3] | 300nits | Anti-glare | 16:10 | 1000:1 | 45% NTSC | 60Hz | 89° / 89° / 89° / 89° | TÜV Low Blue Light (Software) |
| 16" | WQXGA (2560x1600) | None | IPS[4] | 400nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 120Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0, TCON |
Notes:
| [1] WQXGA display is available exclusively in Korea.Product |
| [2], [3], [4] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**[2]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card[3]
Notes:
| [1] Wake-on-LAN needs the power adapter plugged in.ProductLine Default |
| [2] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
| [3] Wi-Fi® 6E full features might be limited by country-level restrictions. 6GHz Wi-Fi® 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi® 6E, and the regional regulatory certifications & spectrum allocation.FeatureValue |
Ports[1]
Standard Ports
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x SD card reader
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkBook® 16 G8 IAL
Security & Privacy
Security
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
Manageability
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for ThinkBook® 16 G8 IAL.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
15% PCC recycled plastic used in the cover frame
25% PCC recycled plastic used in the battery frame
50% PCC recycled plastic used in keycaps
30% PCC recycled plastic used in speaker
90% PCC recycled plastic used in standard 65W adapter
FSC certified content in carton box and accessory box
Dry pressed pulp cushion
Bamboo fiber bag (for NA / EMEA)
Bamboo fiber screen sheet
90% recycled content in OBP bag
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 10.0
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
