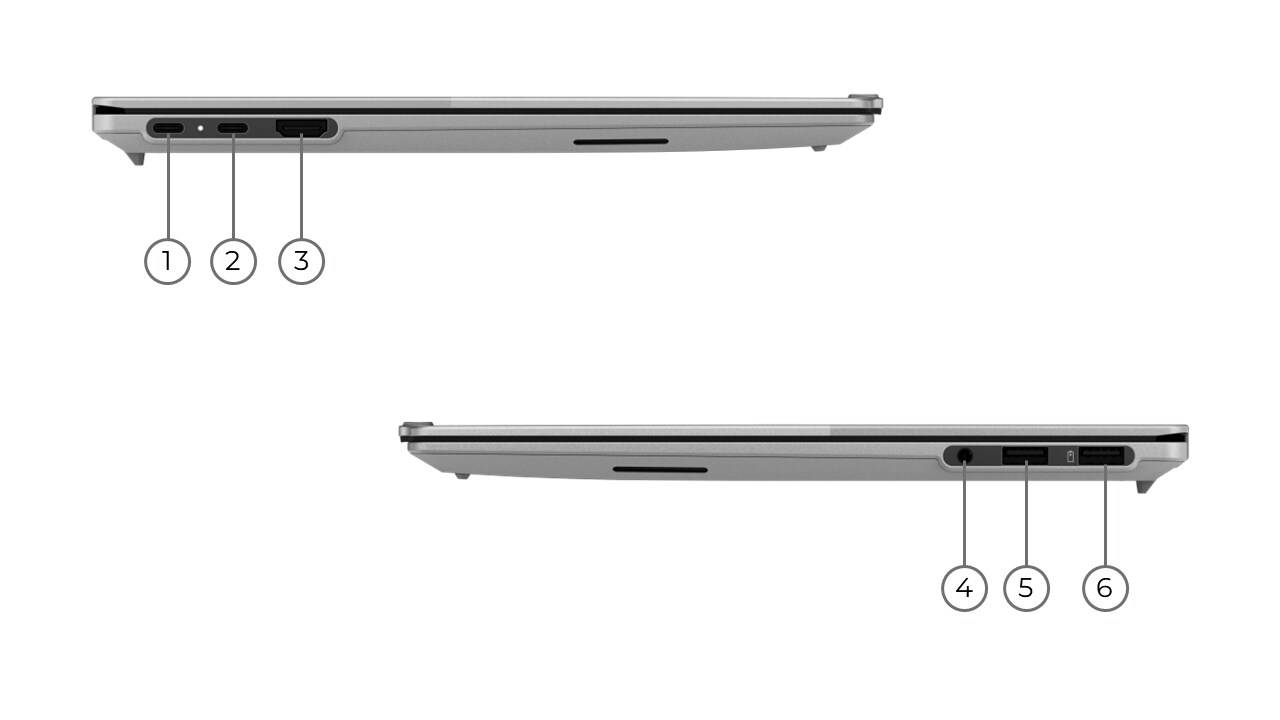

Overview
| 1. | USB-C (USB 10Gbps), with PD 45-65W & DP 1.4 | 4. | Headphone / microphone combo jack (3.5mm) |
| 2. | USB-C (USB 10Gbps), with PD 45-65W & DP 1.4 | 5. | USB-A (USB 5Gbps) |
| 3. | HDMI | 6. | USB-A (USB 5Gbps), Always On |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU | Overall TOPS |
| Core Ultra 5 226V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 2.1GHz | P-core 4.5GHz / LP E-core 3.5GHz | 8MB Intel® Smart Cache | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost, up to 40 TOPS | Up to 97 TOPS |
| Core Ultra 5 228V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 2.1GHz | P-core 4.5GHz / LP E-core 3.5GHz | 8MB Intel® Smart Cache | Intel® Arc™ Graphics 130V, up to 53 TOPS | Intel® AI Boost, up to 40 TOPS | Up to 97 TOPS |
| Core Ultra 7 266V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.2GHz / LP E-core 2.2GHz | P-core 5.0GHz / LP E-core 3.7GHz | 12MB Intel® Smart Cache | Intel® Arc™ Graphics 140V, up to 66 TOPS | Intel® AI Boost, up to 48 TOPS | Up to 118 TOPS |
| Core Ultra 7 256V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.2GHz / LP E-core 2.2GHz | P-core 4.8GHz / LP E-core 3.7GHz | 12MB Intel® Smart Cache | Intel® Arc™ Graphics 140V, up to 64 TOPS | Intel® AI Boost, up to 47 TOPS | Up to 115 TOPS |
| Core Ultra 7 258V | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.2GHz / LP E-core 2.2GHz | P-core 4.8GHz / LP E-core 3.7GHz | 12MB Intel® Smart Cache | Intel® Arc™ Graphics 140V, up to 64 TOPS | Intel® AI Boost, up to 47 TOPS | Up to 115 TOPS |
AI (Artificial Intelligence)
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Graphics | Type | Memory | Key Features |
| Intel® Arc™ Graphics 130V | Integrated | Shared | DirectX® 12.2 |
| Intel® Arc™ Graphics 140V | Integrated | Shared | DirectX® 12.2 |
Monitor Support
Monitor Support[1]
Supports up to 3 independent displays (native display and 2 external monitors via HDMI® and USB-C®)
• HDMI® supports up to 4096x2160@60Hz
• USB-C® supports up to 5120x3200@60Hz
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
Chipset
Memory
Storage
Max Storage Support[1]
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
• M.2 2280 SSD up to 1TB
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
Removable Storage
Multi-Media
Battery
Battery**
- 65Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter[1]
- 54.7Wh Rechargeable Li-ion Battery, supports Rapid Charge Pro (charge up to 50% in 30min) with 65W AC adapter[2]
Max Battery Life[3]
- Models with 54.7Wh battery: MobileMark® 30@250nits: 14.4 hr Local video (1080p) playback@150nits: 18.4 hr
- Models with 65Wh battery: MobileMark® 30@250nits: 16.6 hr Local video (1080p) playback@150nits: 28.9 hr
Notes:
| [1], [2] Rapid charge is only guaranteed when the computer is turned off or in standby mode or in hibernation mode. When the computer is powered on, the Charge Time will vary depending on system power consumption and AC adapter power.FeatureValue |
| [3] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Special Features
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 14" | WUXGA (1920x1200) | Non-touch | IPS[1] | 400nits | Anti-glare | 16:10 | 1000:1 | 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | TÜV Rheinland® Low Blue Light (Hardware) |
| 14" | WUXGA (1920x1200) | Add-on Film touch | IPS[2] | 400nits | Anti-glare | 16:10 | 1000:1 | 100% sRGB | 120Hz (Max) | 85° / 85° / 85° / 85° | Covered by touch glass, TÜV Rheinland® Low Blue Light (Hardware) |
| 14" | 2.8K (2880x1800) | Non-touch | OLED | 1,100nits (HDR peak) / 500nits (SDR typical) | Anti-glare | 16:10 | 100,000:1 | 100% DCI-P3 | 120Hz VRR | 85° / 85° / 85° / 85° | DisplayHDR™ True Black 1000, Eyesafe® Certified 2.0 |
Notes:
| [1], [2] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**[1]
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 7 BE201, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country. Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |
| [2] Ethernet support via optional docking or Lenovo® USB-C® to Ethernet Adapter.FeatureValue |
Ports
Standard Ports
- 1x USB-A (USB 5Gbps), Always On
- 1x USB-A (USB 5Gbps)
- 2x USB-C® (USB 10Gbps), with USB PD 45-65W and DisplayPort™ 1.4
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
Docking
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for ThinkBook® 14x ILL
Security & Privacy
Security
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for ThinkBook® 14x ILL.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
30% PCC recycled plastic used in the battery pack enclosure
50% PCC recycled plastic used in key caps
90% PCC recycled plastic used in 65W adapter
100% plastic free packaging
Dry pressed pulp cushion
Bamboo fiber NB bag
FSC certified content in carton, pizza box, and accessory box
Paper sealing label and adapter film.
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified, generation 10
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
Other Certifications
- (Optional) Eyesafe® Certified 2.0[1]
- TÜV Rheinland® Low Blue Light (Hardware Solution)
Notes:
| [1] Eyesafe® is only certified for OLED display.FeatureValue |
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION "AS IS", WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
