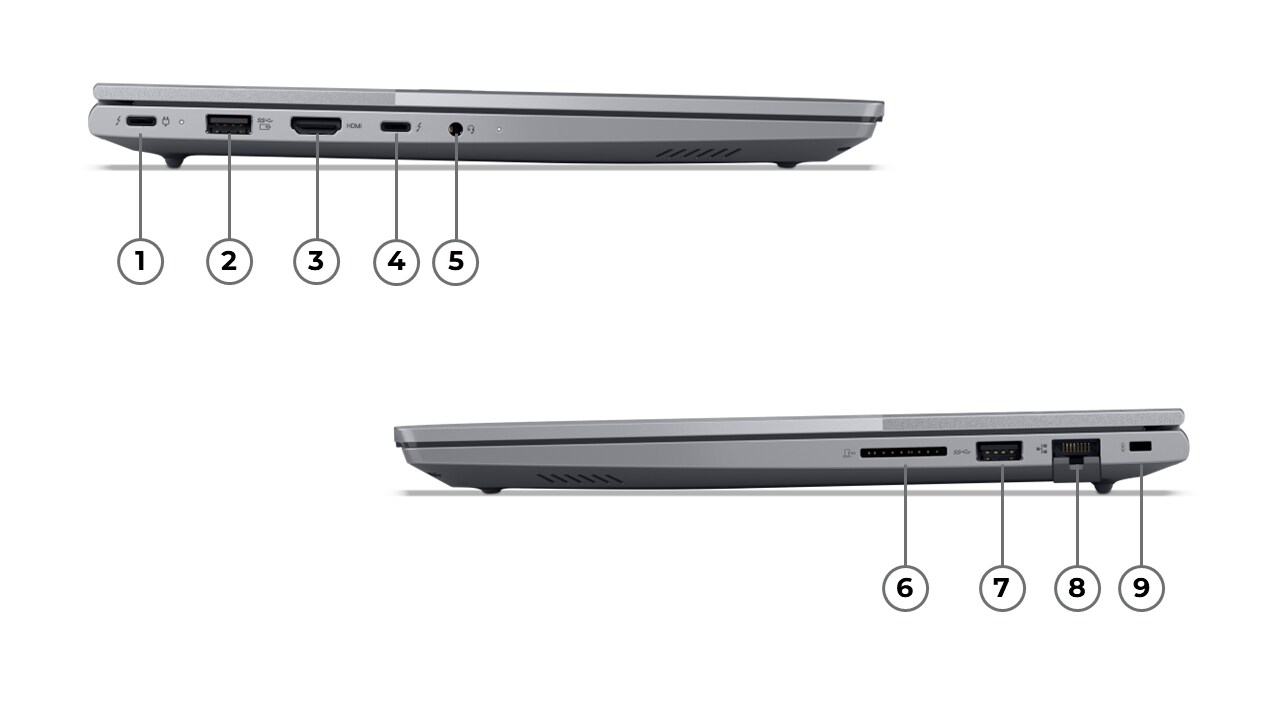

Overview
| 1. | Thunderbolt 4 | 6. | SD card reader |
| 2. | USB-A (USB 5Gbps), Always On | 7. | USB-A (USB 5Gbps) |
| 3. | HDMI | 8. | Ethernet (RJ-45) |
| 4. | Thunderbolt 4 | 9. | Kensington Nano Security Slot |
| 5. | Headphone / microphone combo jack (3.5mm) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 5 325 | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.1GHz / LP E-core 1.6GHz | P-core 4.5GHz / LP E-core 3.4GHz | 12MB Intel® Smart Cache | Intel® Graphics | Up to 47 TOPS |
| Core Ultra 5 332 | 6 (2 P-core + 4 LP E-core) | 6 | P-core 2.5GHz / LP E-core 1.9GHz | P-core 4.4GHz / LP E-core 3.3GHz | 12MB Intel® Smart Cache | Intel® Graphics | Up to 46 TOPS |
| Core Ultra 7 355 | 8 (4 P-core + 4 LP E-core) | 8 | P-core 2.3GHz / LP E-core 1.7GHz | P-core 4.7GHz / LP E-core 3.5GHz | 12MB Intel® Smart Cache | Intel® Graphics | Up to 49 TOPS |
AI (Artificial Intelligence)
Notes:
| [1] Copilot+ PCs have at least 16GB RAM, 256GB storage, and a NPU that runs 40+ TOPs to run the latest AI tools build-in latest Windows® 11 to accelerate productivity and creativity.FeatureValue |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics
| Graphics | Type | Memory | TGP | Key Features |
| Intel® Graphics | Integrated | Shared | Share CPU TDP | DirectX® 12 Ultimate |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, and Thunderbolt™)
• HDMI® supports up to 3840x2160@60Hz
• Thunderbolt™ supports up to 5120x3200@60Hz
Notes:
| [1] Refresh rates >60hz also supported, however max resolution will be limited.Product |
Chipset
Memory
Notes:
| [1] Maximum memory 64GB DDR5-5600 is only to test technical readiness of notebook. Available memory to sell would vary.FeatureValue |
Storage
Max Storage Support[1]
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 2TB
• M.2 2280 SSD up to 2TB
Notes:
| [1] The system supports dual SSD via two M.2 slots, but Lenovo® offers only one SSD configuration with a second slot for user self-expansion. The max storage capacity is only technical readiness and may be different from current Lenovo® storage offerings.Product |
| [2] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
Removable Storage
Multi-Media
Camera**
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus
- 5.0MP, with privacy shutter, fixed focus
Battery
Battery**
- 48Wh Rechargeable Li-ion Battery, supports Rapid Charge Pro (charge up to 50% in 30min)
- 64Wh Rechargeable Li-ion Battery
Max Battery Life[1]
- Models with 48Wh battery: MobileMark® 30@250nits: 11.81 hr Local video (1080p) playback@150nits: 18.97 hr
- Models with 64Wh battery: MobileMark® 30@250nits: 13.88 hr Local video (1080p) playback@150nits: 24.45 hr
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Special Features
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 14" | WUXGA (1920x1200) | Non-touch | IPS[1] | 400nits | Anti-glare | 16:10 | 1000:1 | 45% NTSC | 60Hz | 89° / 89° / 89° / 89° | TÜV Low Blue Light (Software) |
| 14" | WUXGA (1920x1200) | In-cell touch | IPS[2] | 400nits | Anti-glare | 16:10 | 1200:1 | 45% NTSC | 60Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0 |
| 14" | 2.8K (2880x1800) | Non-touch | IPS[3] | 500nits | Anti-glare | 16:10 | 1500:1 | 100% sRGB | 120Hz | 89° / 89° / 89° / 89° | Eyesafe® Certified 2.0 |
Notes:
| [1], [2], [3] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Surface Treatment**
- Anodizing sandblasting (top), texture (bottom)
- Anodizing sandblasting FIFA® Edition (top), anodizing sandblasting (bottom)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
- Intel® Wi-Fi® 7 BE213, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country. Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |
| [2] Wake-on-LAN needs the power adapter plugged in.ProductLine Default |
Ports[1]
Standard Ports
- 1x USB-A (USB 5Gbps), Always On
- 1x USB-A (USB 5Gbps)
- 2x Thunderbolt™ 4, with USB PD 45-100W and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x SD card reader
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Docking
Various docking solutions supported via Thunderbolt™.
For more compatible docking solutions, please visit Docking for ThinkBook® 14 G9 IPL
Security & Privacy
Security
Fingerprint Reader
- Touch style fingerprint reader integrated in power button, match-on-chip
- No fingerprint reader
Manageability
Service
Accessories
Bundled Accessories
Bundled Accessories***[1]
- Lenovo® 16" Laptop ECO Topload T210 (black)
- Lenovo® Essential Wired Mouse (Plastic Free)
- Lenovo® USB-A Wired Stereo Headset Gen 2 (Plastic Free)
- ThinkBook® Bluetooth® Silent Mouse (Plastic Free)
- None
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for ThinkBook® 14 G9 IPL.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Environmental
Sustainability
Material[1]
30% PCC recycled plastic used in the battery pack enclosure
50% PCC recycled plastic used in key caps
30% PCC recycled plastic used in speaker
90% PCC recycled plastic used in standard 65W adapter
Plastic free packaging (for EMEA & NA)
Dry pressed pulp cushion
90% recycled content in OBP bag or bamboo fiber bag
FSC certified content in carton box
Notes:
| [1] PCC: Post Consumer Content, recycled materials from customers.Classification Default |
Certifications
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 9.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
- TCO Certified, generation 10
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
