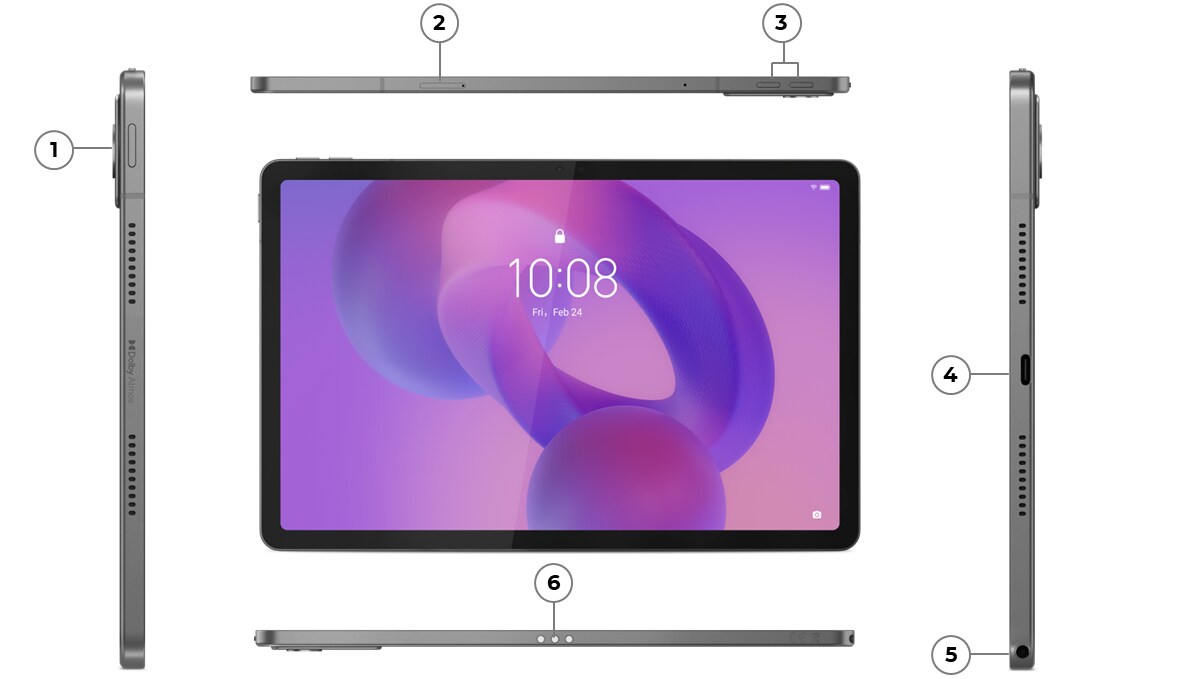

Overview

1.	Power button	4.	USB-C (Hi-Speed USB / USB 2.0), with charging
2.	Card slot	5.	Headphone / microphone combo jack (3.5mm)
3.	Volume buttons	6.	Pogo pin connector (3-point)

Notes:

3-point pogo pin connector is used to connect Lenovo Folio Keyboard for Idea Tab. Keyboard availability varies by country/region.
Card slot is for microSD card (WLAN model) or nano-SIM + microSD card (WWAN model)

Performance

Processor

Processor Name	Cores	Max Frequency	Processor Graphics
MediaTek Dimensity 6300	Octa-core 2x A76 + 6x A55	A76@2.4 GHz A55@2.0 GHz	Arm Mali-G57 MC2 GPU

Operating System

Operating System^[1]

Android™ 15 or later

Notes:

[1] For latest operating system and security patches deliver plan, please visit https://support.lenovo.com/solutions/ht501098.

Graphics

Arm Mali-G57 MC2 GPU

Memory

Max Memory

4GB soldered memory, not upgradable
8GB soldered memory, not upgradable

Memory Type

LPDDR4x

Storage

Storage Support

128GB UFS 2.2 on systemboard
256GB UFS 2.2 on systemboard
microSD card, supports up to 2TB (exFAT)

Removable Storage

Card Reader

Nano-SIM + microSD card slot (WWAN models)
microSD card slot (WLAN models)

Multi-Media

Speakers

4 speakers, optimized with Dolby Atmos®

Microphone

Single microphone

Camera

Front 5.0MP, fixed focus, face unlock Rear 8.0MP, autofocus

VoiceCall^[1]

Voice call
No support

Notes:

[1] Use of Voice call requires cellular data plan. Voice call functionality details may vary based on local operator network, data and messaging services. Please contact your carriers for details.

Sensor

Vibration Motor

Support^[1]
No support

Sensors

Accelerometer sensor
Ambient light sensor (ALS)
Hall sensor

Notes:

[1] Only available for Taiwan models

Battery

7040mAh (typical) Rechargeable Li-ion Battery

Max Battery Life^[1]

Video streaming: 12 hr of YouTube streaming Web browsing: 14 hr of Chrome browsing

Notes:

[1] All battery life claims are approximate and based on internal testing under optimal laboratory and network conditions. Actual battery performance will vary depending on numerous factors including product configuration and usage, software, operating conditions, wireless functionality, power management settings, screen brightness and other factors. The maximum capacity of the battery will naturally decrease with time and usage.

Power Adapter

10V/2A (20W) AC adapter, 100-240V, 50-60Hz
No power adapter

Design

Display

Display^[1]

Size	Resolution	Touch	Type	Brightness	Surface	Aspect Ratio	Contrast Ratio	Color Gamut	Refresh Rate	Key Features
11"	2.5K (2560x1600)	Multi-touch	IPS	500nits	Anti-fingerprint, Paper-like Anti-glare	16:10	1500:1	72% NTSC	90Hz	TÜV Rheinland® Reflection Free certified
11"	2.5K (2560x1600)	Multi-touch	IPS	500nits	Anti-fingerprint	16:10	1500:1	72% NTSC	90Hz	-

Touchscreen

In-cell multi-touch, supports 10-point touch

Notes:

[1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Pen**

Lenovo® Tab Pen, 4096 levels of pressure sensitivity, tilt detection, palm rejection
Lenovo® Tab Pen Plus, 4096 levels of pressure sensitivity, tilt detection, palm rejection
No pen (purchase separately)^[1]

Notes:

[1] For details upon pen compatibility, please check Here. Pen availability may vary by country / region.

Mechanical

Dimensions (WxDxH)^[1][2]

254.59 x 166.15 x 6.99 mm (10.02 x 6.54 x 0.28 inches)

Weight^[3]

480 g ± 10 g (1.06 lbs ± 0.02 lbs)

Case Color

Luna grey
Polar blue

Case Material

Metal

Buttons

Power button
Volume buttons

Notes:

[1] The system dimensions may vary depending on configurations.

[2] The thickness is 8.29 mm (0.33 inches) with the camera bump.

[3] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®

Wi-Fi® 5, 802.11ac dual band 1x1 Wi-Fi® + Bluetooth® 5.2

WWAN

5G Sub-6 GHz
No support

Cellular Bands^[1]

GSM: 850/900/1800/1900Mhz UMTS: B1/2/4/5/6/8/19 FDD-LTE: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28(a+b)/66 TDD-LTE: B38/40/41 NR Sub-6: n1/2/3/5/7/8/20/26/28/38/40/41/66/71/77/78

Wi-Fi® Direct

Support

Wi-Fi® Display

Support

Location Services

Models	Location
WLAN models	GPS + GLONASS + Galileo
WWAN models	GPS + GLONASS + Galileo + A-GPS

Notes:

[1] For WWAN models

Ports

Standard Ports^[1]

1x USB-C® (Hi-Speed USB / USB 2.0), with charging
1x Headphone / microphone combo jack (3.5mm)
1x Card slot

Notes:

[1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.

Service

Warranty

Base Warranty^[1]

1-year carry-in service
1-year mail-in service
1-year courier service
2-year (1-yr battery) carry-in service
2-year (2-yr battery) carry-in service
2-year (1-yr battery) courier service
2-year (2-yr battery) courier or carry-in service
3-year (1-yr battery) courier service

Notes:

[1] For warranty upgrade service, please go to https://smartfind.lenovo.com/services. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.

Accessories

Bundled Accessories

Bundled Accessories***^[1]

Folio case
Lenovo® E310 True Wireless Stereo Earbuds
Lenovo® Folio Keyboard
Lenovo® Tab Pen
Lenovo® Tab Pen Plus
None

Notes:

[1] For more compatible accessories, please click Here.

Operating Requirements

Operating Environment

Temperature

Operating: 0°C (32°F) to 40°C (104°F)

Certifications

Green Certifications^[1]

Green Certifications

ENERGY STAR® 9.0 (only available for TB336FU)
ErP Lot 6/26
RoHS compliant

Notes:

[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.

Other Certifications

Dust and Water Resistant

IP52

Other Certifications

(Optional) TÜV Rheinland® Reflection Free
TÜV Rheinland® Flicker Free
TÜV Rheinland® Low Blue Light (Hardware Solution)

Software

Preinstalled Software

Preinstalled Software^[1]

Assistant
Calculator
Camera
Chrome
Clock
Contacts
Drive
Entertainment Space
Files
Fitbit
Find my device
Gboard
Gmail
Google
Google One
Google TV
Kids Space
Lenovo® Vantage
Maps
Meet
Messages
MyScript® Calculator
Nebo®
News
Notepad
Play Books
Play Games
Phone^[2]
Photos
Play Store
Recorder
Smart Connect
Squid
WPS Office
Weather
YouTube
YouTube Kids
YouTube Music

Notes:

[1] Actual application availability varies by country/region.

[2] For WWAN models

Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
The specifications on this page may not be available in all regions, and may be changed or updated without notice.
