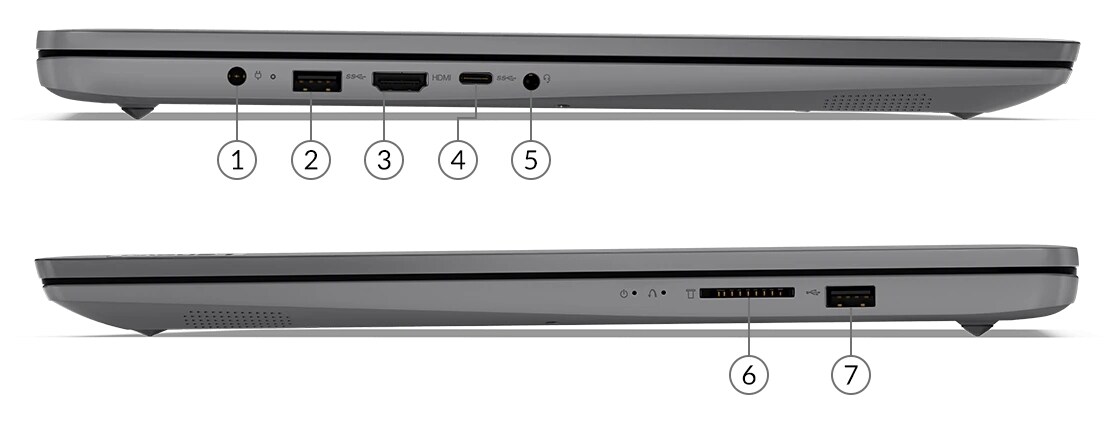

Overview
1. Power connector | 5. Headphone / microphone combo jack (3.5mm) |
2. USB 3.2 Gen 1 | 6. Card reader |
3. HDMI 1.4b | 7. USB 2.0 |
4. USB-C 3.2 Gen 1 (data transfer only) |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Pentium Gold 7505 | 2 | 4 | 2.0GHz | 3.5GHz | 4MB | DDR4-3200 | Intel UHD Graphics |
| Core i3-1115G4 | 2 | 4 | 3.0GHz | 4.1GHz | 6MB | DDR4-3200 | Intel UHD Graphics |
| Core i5-1135G7 | 4 | 8 | 2.4GHz | 4.2GHz | 8MB | DDR4-3200 | Intel Iris® Xe Graphics |
| Core i7-1165G7 | 4 | 8 | 2.8GHz | 4.7GHz | 12MB | DDR4-3200 | Intel Iris Xe Graphics |
Operating System
Operating System**
- Windows® 11 Pro 64
- Windows 11 Home 64
- Windows 10 Pro 64
- Windows 10 Home 64
- No operating system
Graphics
Graphics**[1]
| Graphics | Type | Memory | Key Features |
| Intel UHD Graphics | Integrated | Shared | DirectX® 12 |
| Intel Iris Xe Graphics | Integrated | Shared | DirectX 12.1 |
| NVIDIA® GeForce MX350 | Discrete | 2GB GDDR5 | DirectX 12 |
Notes:
- Intel Iris Xe Graphics capability requires system to be configured with Intel Core i5 or i7 processor and dual-channel memory. On the system with Intel Core i5 or i7 processor and single-channel memory, Intel Iris Xe Graphics will function as Intel UHD graphics.
Monitor Support
Monitor Support
Supports up to 2 independent displays (native display and 1 external monitor via HDMI®)
• HDMI supports up to 3840x2160@30Hz
Chipset
Memory
Max Memory[1]
- Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-3200 offering
- Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-3200 offering
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
- Model with 38Wh battery: up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 512GB
- Model with 45Wh battery: one drive, 1x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 512GB
Storage Slot
- Model with 38Wh battery: one 2.5" drive slot + one M.2 slot • One 2.5" drive slot, supports 2.5" SATA HDD • One M.2 2280 PCIe® Gen 3x4 slot, supports M.2 2242/2280 SSD
- Model with 45Wh battery: one M.2 slot • One M.2 2280 PCIe Gen 3x4 slot, supports M.2 2242/2280 SSD
Storage Type***
| Disk Type | Interface | RPM | Offering | Security |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | - | - |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x4 | - | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | - | - |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Battery
Battery**
- Integrated Li-Polymer 38Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
- Integrated Li-Polymer 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 17.3" | HD+ (1600x900) | None | TN | 250 nits | Anti-glare | 16:9 | - | 60% NTSC | - | - |
| 17.3" | FHD (1920x1080) | None | IPS | 300 nits | Anti-glare | 16:9 | - | 72% NTSC | - | - |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Mechanical[1]
Notes:
- The system dimensions and weight vary depending on configurations.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
- Wi-Fi 6 full features might be limited by country-level restrictions. BT5.1 is supported on Windows 10 version 2004 or above (limited to BT5.0 on the earlier version).
Ports[1]
Standard Ports
- 1x USB 2.0
- 1x USB 3.2 Gen 1
- 1x USB-C® 3.2 Gen 1 (support data transfer only)
- 1x HDMI 1.4b
- 1x Card reader
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Service
Warranty
Notes:
- More information of warranty policy, please access https://pcsupport.lenovo.com/warranty
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
