Processor
Processor Family
Intel® N-series Processor
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- Windows® 11 IoT Enterprise LTSC 2024
- Ubuntu Linux
- IGEL Linux
- No preload operating system
Monitor Support
Monitor Support
Supports up to 3 independent displays via (onboard DP, onboard HDMI®, and one optional port [VGA / 2nd DP / 2nd HDMI®])
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory[1]
Up to 16GB DDR5-5600
Memory Slots
One DDR5 SO-DIMM slot
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Max Storage Support[1]
One drive, up to 512GB M.2 SSD
Storage Type
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 3.0 x4 | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | - |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | Opal 2.0 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio
Speakers
- No speakers
- Single speaker, 2W x1
Power Supply
Power Supply**[1]
| 90W | Adapter | 89% | 100V - 240V |
| No power adapter | - | - | - |
| 65W | Adapter | 89% | 100V - 240V |
Notes:
| [1] When work with TIO monitor, an appropriate power adapter is needed. Customer may need to:
• Order a Tiny for TIO MT (13GF, 13GH) models
• Or order an additional 90W power adapter. If original power adapter is 65W.Product |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), black
- Wireless EOS Keyboard, black
- No keyboard
Mouse**
- Wireless EOS Mouse, black
- Lenovo® Calliope Mouse (USB connector), black
- No mouse
Mechanical
Dimensions (WxDxH)[1]
| Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches) |
| Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches) |
Packaging Dimensions (WxDxH)
- Tiny with Calliope keyboard and power adapter: 500 x 262 x 140 mm (19.69 x 10.31 x 5.51 inches)
- Tiny with EOS keyboard and power adapter: 528 x 246 x 128 mm (20.79 x 9.69 x 5.04 inches)
- Tiny only: 240 x 250 x 186 mm (9.45 x 9.84 x 7.32 inches)
Weight[2]
Around 1.13 kg (2.49 lbs)
Packaging Weight
- Tiny with Calliope keyboard: 2.39 kg (5.27 lbs)
- Tiny with EOS keyboard: 2.93 kg (6.45 lbs)
- Tiny only: 2.03 kg (4.48 lbs)
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
EOU
- No support
- (Optional) toolless chassis open (toolless chassis screw required), stand, toolless M.2 SSD, memory assembly / removal
Mounting
- Supports VESA mount 100mm
- None
Cooling System (Fan & Cooler)[3]
1x default system fan
Others
(Optional) Power adapter cage
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
| [3] The fanless option is available only for specific N100 processor models running IGEL OS or IOT OS.Product |
Network
WLAN + Bluetooth®**
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- No WLAN and Bluetooth®
Onboard Ethernet
Gigabit Ethernet, Realtek® RTL8111K, 1x RJ-45

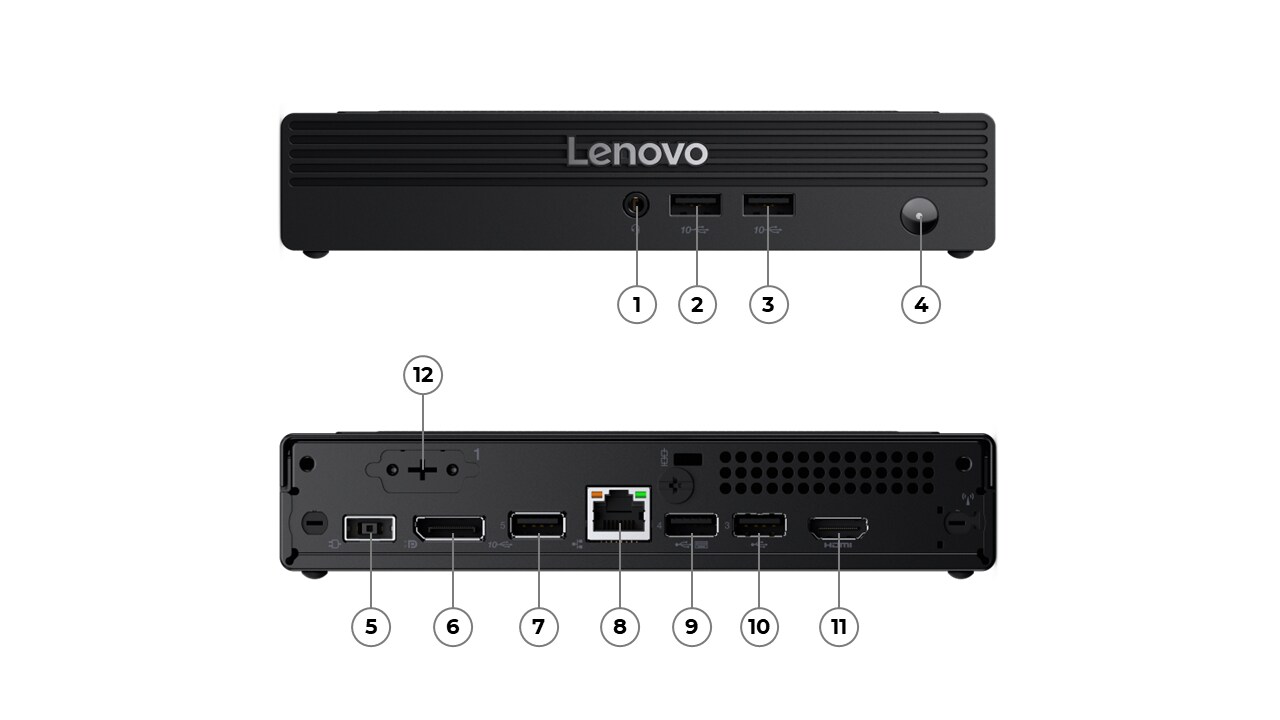

Ports[1]
Front Ports
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 1.4
- 1x DisplayPort™ 1.4b
- 1x Ethernet (RJ-45)
Optional Rear Ports
Punch out port (one of serial / VGA / DisplayPort™ 1.4b/ HDMI® 1.4 / USB-C® (USB 10Gbps / USB 3.2 Gen 2) with DisplayPort™ 1.4b HBR2 function)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch
Fingerprint Reader
No fingerprint reader
BIOS Security
- Supervisor password
- Boot sequence control
- Boot without keyboard and mouse
- Individual USB port disablement
- Intel® BIOS guard
- Secure boot
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
