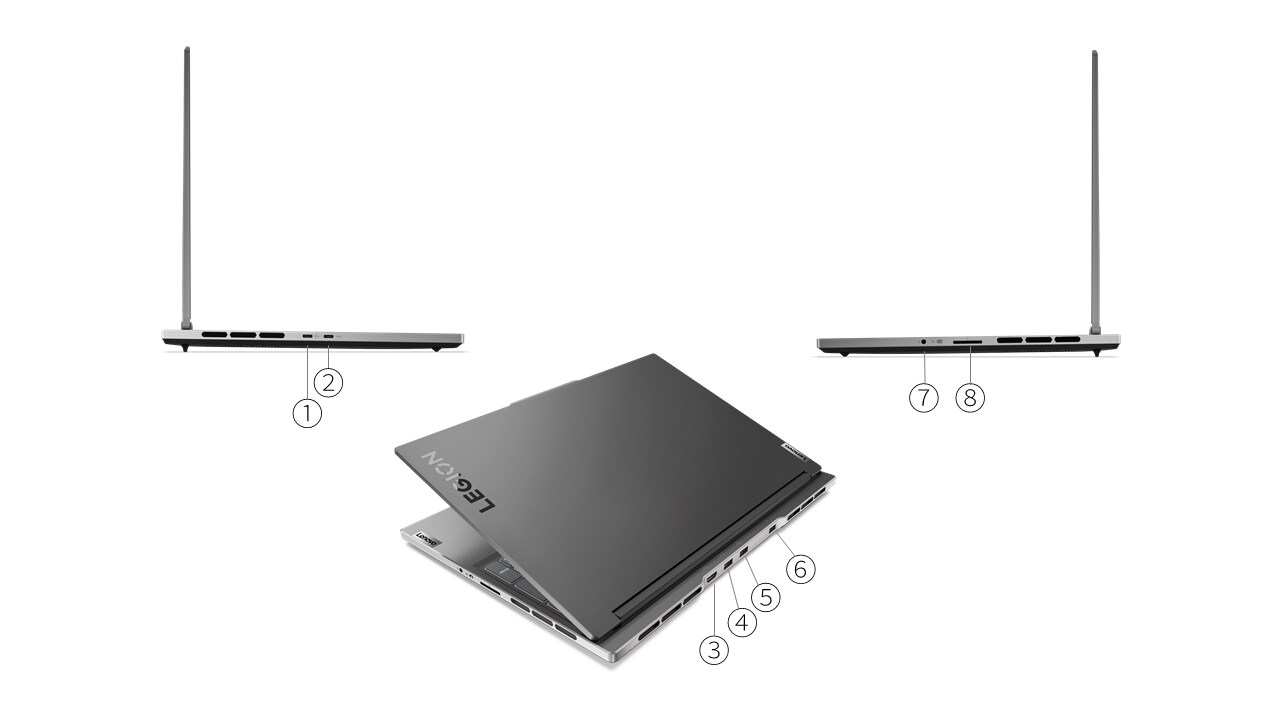

Overview
1. USB-C 3.2 Gen 2 | 5. USB 3.2 Gen 1 (Always On) |
2. USB-C 3.2 Gen 2 | 6. Power connector |
3. HDMI | 7. Headphone / microphone combo jack (3.5mm) |
4. USB 3.2 Gen 1 | 8. Card reader |
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD Ryzen 5 6600H | 6 | 12 | 3.3GHz | 4.5GHz | 3MB L2 / 16MB L3 | DDR5-4800 | AMD Radeon™ 660M Graphics |
| AMD Ryzen 7 6800H | 8 | 16 | 3.2GHz | 4.7GHz | 4MB L2 / 16MB L3 | DDR5-4800 | AMD Radeon 680M Graphics |
| AMD Ryzen 9 6900HX | 8 | 16 | 3.3GHz | 4.9GHz | 4MB L2 / 16MB L3 | DDR5-4800 | AMD Radeon 680M Graphics |
Operating System
Graphics
Graphics
| Graphics | Type | Memory | Key Features |
| AMD Radeon RX 6600S | Discrete | 4GB GDDR6 | DirectX® 12 Ultimate, AMD Smart Access Memory, AMD SmartShift Technology |
| AMD Radeon RX 6800S | Discrete | 8GB GDDR6 | DirectX 12 Ultimate, AMD Smart Access Memory, AMD SmartShift Technology |
Monitor Support
Monitor Support[1]
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)
• HDMI supports up to 7680x4320@60Hz
• USB-C supports up to 7680x4320@60Hz
Notes:
- For Max resolution, DSC-enabled display is required. Three external output display devices cannot be supported at the same time when displaying 8K resolution.
Chipset
Memory
Max Memory[1]
- Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR5-4800 offering
- Up to 24GB (8GB soldered + 16GB SO-DIMM) DDR5-4800 offering
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Battery
Battery
- Integrated Li-Polymer 71Wh battery, supports Rapid Charge Pro (charge up to 50% in 30min)
- Integrated Li-Polymer 99.99Wh battery, supports Super Rapid Charge (charge up to 70% in 30min)
Max Battery Life[1]
- Model with 71Wh battery: MobileMark® 2018: 8 hr Local video (1080p) playback: 9.1 hr
- Model with 99.99Wh battery: MobileMark 2018: 9.2 hr Local video (1080p) playback: 10.6 hr
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter[1]
- 170W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
- 230W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 16.0" | WUXGA (1920x1200) | None | IPS | 300 nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 178° | Refresh rate 165Hz, Dolby® Vision™, Free-Sync, DC dimmer, Advanced Optimus, TÜV Low Blue Light |
| 16.0" | WQXGA (2560x1600) | None | IPS | 500 nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 178° | Refresh rate 165Hz, Dolby Vision, DisplayHDR™ 400, Free-Sync, DC dimmer, TÜV Low Blue Light, TÜV High Gaming Performance |
| 16.0" | WQXGA (2560x1600) | None | IPS | 500 nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 178° | Refresh rate 240Hz, Dolby Vision, Free-Sync, DC dimmer, Advanced Optimus, TÜV Low Blue Light, TÜV High Gaming Performance |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Touchpad
Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical[1]
Weight
| Models | Weight |
| Model with 99.99Wh battery | Less than 2.23 kg (4.9 lbs) |
| Model with 71Wh battery | Less than 2.175 kg (4.8 lbs) |
Notes:
- The system dimensions and weight vary depending on configurations.
Connectivity
Network
WLAN + Bluetooth®[1]
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 card
- Wi-Fi 6E, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 card
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
Ports[1]
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort™ 1.4)
- 1x HDMI, up to 8K/60Hz
- 1x Card reader
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Service
Warranty
Base Warranty[1]
- 1-year depot service
- 1-year depot with 2-year system board service (Korea only)
- 2-year (1-yr battery) depot service
- 3-year (1-yr battery) depot service
- No base warranty
Notes:
- More information of warranty policy, please access https://pcsupport.lenovo.com/warranty
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Accessories
Certifications
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
