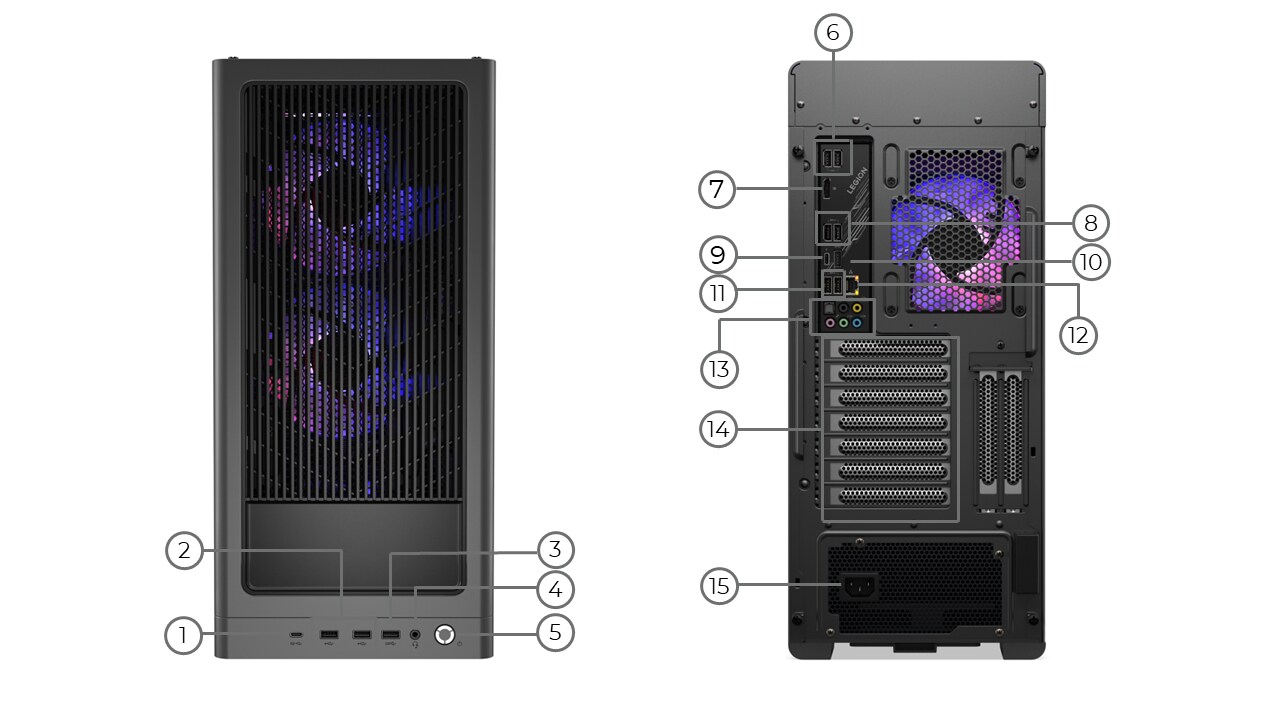

Overview

1.	1x USB-C (USB 10Gbps)	9.	1x USB-C (Thunderbolt 4 )
2.	2x USB-A (Hi-Speed USB)	10.	1x USB-A (USB 10Gbps)
3.	1x USB-A (USB 5Gbps)	11.	2x USB-A (USB 5Gbps)
4.	1x Headphone / microphone combo jack (3.5mm)	12.	Ethernet (2.5GbE RJ-45)
5.	Power button	13.	6x Audio connectors
6.	2x USB-A (Hi-Speed USB)	14.	Optional ports on expansion cards *
7.	1x DisplayPort 1.4	15.	Power connector
8.	2x USB-A (USB 5Gbps)

Notes:

Items with * are only available on selected models

Performance

Processor

Processor Family

Intel® Core™ Ultra 7 / 9 Processor (Series 2)

Processor**

Processor Name	Cores	Threads	Base Frequency	Max Frequency	Cache	Processor Graphics	NPU
Core Ultra 7 265K	20 (8 P-core + 12 E-core)	20	P-core 3.9GHz / E-core 3.3GHz	P-core 5.4GHz / E-core 4.6GHz	36MB	Intel® Graphics	Intel® AI Boost
Core Ultra 7 265KF	20 (8 P-core + 12 E-core)	20	P-core 3.9GHz / E-core 3.3GHz	P-core 5.4GHz / E-core 4.6GHz	36MB	-	Intel® AI Boost
Core Ultra 9 285K	24 (8 P-core + 16 E-core)	24	P-core 3.7GHz / E-core 3.2GHz	P-core 5.5GHz / E-core 4.6GHz	40MB	Intel® Graphics	Intel® AI Boost

AI (Artificial Intelligence)

NPU

Integrated Intel® AI Boost, up to 13 TOPS

Operating System

Operating System**

Windows® 11 Pro
Windows® 11 Home
Windows® 11 Home Single Language
Windows® 10 Pro 64
No preload operating system

Graphics

Graphics**^[1]

Graphics	Type	Memory	AI TOPS (Peak)	Max Resolution	Connector	Key Features
NVIDIA® GeForce RTX™ 4070 Ti SUPER	Discrete	16G GDDR6	706	7680x4320@60Hz(HDMI®), 7680x4320@60Hz(DP)	1x HDMI® 2.1a FRL, 3x DP 1.4a	DirectX® 12
NVIDIA® GeForce RTX™ 4080 SUPER	Discrete	16G GDDR6X	836	7680x4320@60Hz(HDMI®); 7680x4320@60Hz(DP)	3x DP 1.4a, 1x HDMI® 2.1a FRL	DirectX® 12
NVIDIA® GeForce RTX™ 5080	Discrete	16G GDDR7	1801	7680x4320@60Hz(HDMI®); 7680x4320@120Hz(DP)	3x DP 2.1a, 1x HDMI® 2.1b FRL	DirectX® 12
NVIDIA® GeForce RTX™ 5070Ti	Discrete	16G GDDR7	1406	7680x4320@60Hz(HDMI®); 7680x4320@120Hz(DP)	3x DP 2.1a, 1x HDMI® 2.1b FRL	DirectX® 12

Notes:

[1] The information of integrated graphics are not applicable for the models with processor which has no integrated graphics inside (for the details, please refer to processor section).

Monitor Support

Supports up to 4 independent displays via discrete graphics ports (DP, HDMI®)

Chipset

Intel® Z890 chipset

Memory

Max Memory^[1]

Up to 128GB DDR5-5600

Memory Slots

Four DDR5 UDIMM/CUDIMM slots, dual-channel capable

Memory Type**^[2]

DDR5-5600 UDIMM
DDR5-6400 CUDIMM^[3]

Memory Protection

Non-ECC

Notes:

[1] The max memory is based on the test results with current Lenovo® memory offerings.

[2], [3] Installed memory is actually DDR5-6400 but may run as DDR5-5600 depending on the memory support capability of Intel®.

Storage

Storage Support^[1]

Up to six drives, 2x 3.5" HDD + 4x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB

Storage Type**

Disk Type	Interface
M.2 2280 SSD	PCIe® NVMe®, PCIe® 5.0 x4
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4

RAID

No support

Notes:

[1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.

Removable Storage

Optical

None

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC1220 codec

Speakers

No speakers

Power Supply

Power Supply**

Power	Type	Efficiency	Key Features
850W	Fixed	90%	100V - 240V
1200W	Fixed	90%	100V - 240V

Design

Input Device

Keyboard

Lenovo® Calliope Keyboard (USB connector), black
No keyboard

Mouse

Lenovo® Calliope Mouse (USB connector), black
No mouse

Mechanical

Form Factor

Tower (34L)

Dimensions (WxDxH)^[1]

211 x 451.6 x 477.4 mm (8.3 x 17.77 x 18.79 inches)

Packaging Dimensions (WxDxH)

325 x 585 x 630 mm (12.8 x 23.03 x 24.8 inches)

Weight^[2]

Around 18 kg (39.68 lbs)

Packaging Weight

All models: Around 19 kg (41.88 lbs)

Case Color

Storm grey

Chassis**

Transparent side cover
Transparent side cover and inner decorate cover

Expansion Slots

One PCIe® 5.0 x16
One PCIe® 4.0 x16 (x4 signal)
One PCIe® 3.0 x1
Five M.2 slots (one for WLAN, four for SSDs)

Cooling System (Fan & Cooler)**

120mm-Fan with ARGB lighting air cooler, 1x rear system fan with ARGB, 2x top system fan with ARGB, 3x front system fan with ARGB
120mm-Fan with ARGB lighting air cooler, 1x rear system fan with ARGB, 3x front system fan with ARGB
360mm-Fan with ARGB lighting liquid cooler, 1x rear system fan with ARGB, 2x top system fan with ARGB

System Lighting

Legion ARGB Lighting + Internal ambient lighting

Notes:

[1] The system dimensions may vary depending on configurations.

[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

Onboard Ethernet

2.5GbE, Realtek® RTL8125BG Gaming Ethernet, 1x RJ-45

WLAN + Bluetooth®**

Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card

Ports^[1]

Rear Ports^[2]

1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1^[3]
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (Hi-Speed USB / USB 2.0)
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x DisplayPort™ 1.4^[4]
1x Ethernet (2.5GbE RJ-45)
1x Power connector
6x Audio connectors

Top Ports

1x headphone / microphone combo jack (3.5mm)
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (Hi-Speed USB / USB 2.0)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

Notes:

[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.

[2] For video ports on discrete graphics, please see graphics section.

[3] For some models, this connector does not support display function.

[4] DisplayPort™ out connector are not applicable for the models with processor which has no integrated graphics inside (for the details, please refer to processor section).

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in chipset

BIOS Security

Administrator password
Hard disk password

Service

Warranty^[1]

Base Warranty**

1-year mail-in service
1-year courier or carry-in service
2-year courier or carry-in service
3-year courier or carry-in service

Notes:

[1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.

Operating Requirements

Operating Environment

Temperature

Operating: 5°C (41°F) to 35°C (95°F)
Storage: -40°C (-40°F) to 60°C (140°F)

Relative Humidity

Operating: 20% to 80% (non-condensing)
Storage: 10% to 90% (non-condensing)

Altitude

Operating: 0 m (0 ft) to 3048 m (10,000 ft)
Storage: 0 m (0 ft) to 12192 m (40,000 ft)

Certifications

Green Certifications^[1]

Green Certifications

ErP Lot 3
RoHS compliant
None

Notes:

[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.

Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
The specifications on this page may not be available in all regions, and may be changed or updated without notice.
