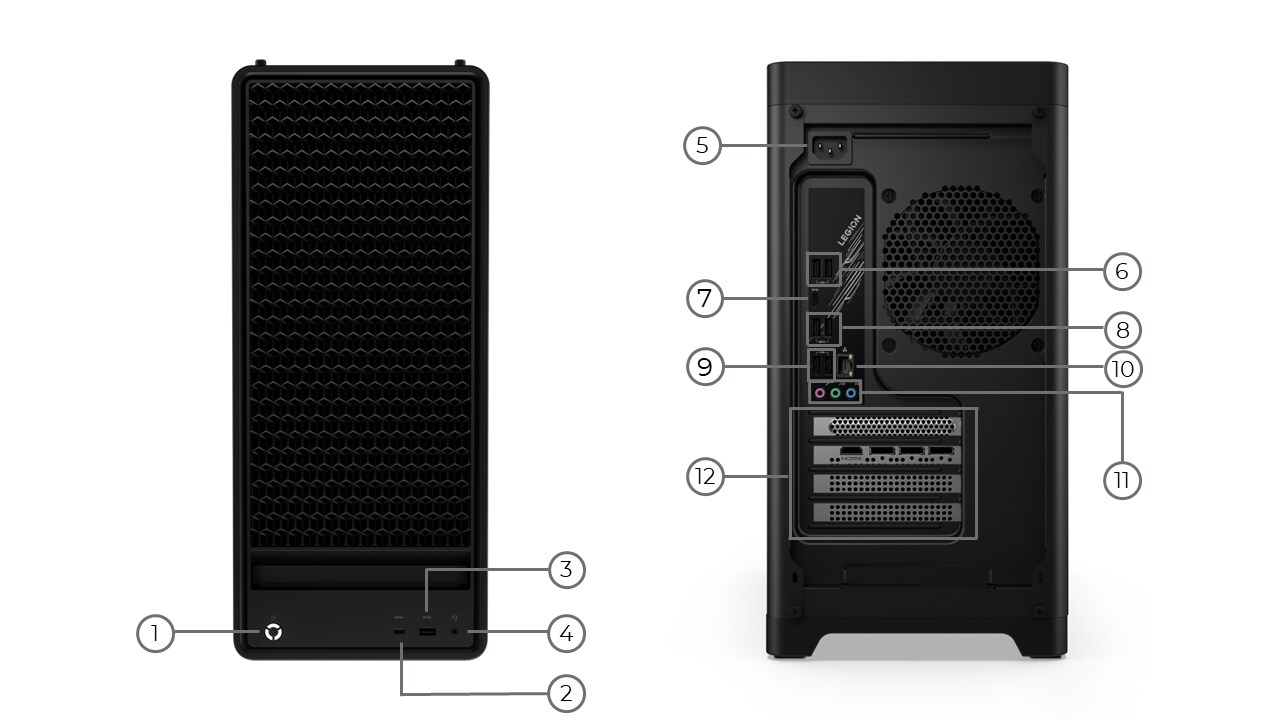

Overview
| 1. | Power button | 7. | USB-C (USB 10Gbps) |
| 2. | 1x USB-C (USB 5Gbps) | 8. | 2x USB-A (USB 5Gbps) |
| 3. | 1x USB-A (USB 5Gbps) | 9. | 2x USB-A (Hi-Speed USB) |
| 4. | 1x headphone / microphone combo jack (3.5mm) | 10. | Ethernet (RJ-45) |
| 5. | Power connector | 11. | 3x Audio connectors |
| 6. | 2x USB-A (Hi-Speed USB) | 12. | Optional ports on expansion cards * |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU |
| Core Ultra 5 225F | 10 (6 P-core + 4 E-core) | 10 | P-core 3.3GHz / E-core 2.7GHz | P-core 4.9GHz / E-core 4.4GHz | 22MB | - | Intel® AI Boost |
| Core Ultra 7 265F | 20 (8 P-core + 12 E-core) | 20 | P-core 2.4GHz / E-core 1.8GHz | P-core 5.2GHz / E-core 4.6GHz | 36MB | - | Intel® AI Boost |
| Core Ultra 7 265K | 20 (8 P-core + 12 E-core) | 20 | P-core 3.9GHz / E-core 3.3GHz | P-core 5.4GHz / E-core 4.6GHz | 36MB | Intel® Graphics | Intel® AI Boost |
| Core Ultra 7 265KF | 20 (8 P-core + 12 E-core) | 20 | P-core 3.9GHz / E-core 3.3GHz | P-core 5.4GHz / E-core 4.6GHz | 36MB | - | Intel® AI Boost |
| Core Ultra 9 285 | 24 (8 P-core + 16 E-core) | 24 | P-core 2.5GHz / E-core 1.9GHz | P-core 5.4GHz / E-core 4.6GHz | 40MB | Intel® Graphics | Intel® AI Boost |
AI (Artificial Intelligence)
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Graphics | Type | Memory | AI TOPS (Peak) | Max Resolution | Connector | Key Features |
| NVIDIA® GeForce RTX™ 4060 | Discrete | 8G GDDR6 | 242 | 7680x4320@60Hz with DSC, HDR(HDMI®), 7680x4320@60Hz with DSC, HDR(DP) | 1x HDMI® 2.1a FRL, 3x DP 1.4a | DirectX® 12 |
| NVIDIA® GeForce RTX™ 4060 Ti | Discrete | 8G GDDR6 | 353 | 7680x4320@60Hz with DSC, HDR(HDMI®), 7680x4320@60Hz with DSC, HDR(DP) | 1x HDMI® 2.1a FRL, 3x DP 1.4a | DirectX® 12 |
| NVIDIA® GeForce RTX™ 4070 SUPER | Discrete | 12G GDDR6X | 568 | 7680x4320@60Hz with DSC, HDR(HDMI®), 7680x4320@60Hz with DSC, HDR(DP) | 3x DP 1.4a, 1x HDMI® 2.1a FRL | DirectX® 12 |
| NVIDIA® GeForce RTX™ 4070 Ti SUPER 16GB | Discrete | 16G GDDR6X | 706 | 7680x4320@60Hz with DSC, HDR(HDMI®), 7680x4320@60Hz with DSC, HDR(DP) | 3x DP 1.4a, 1x HDMI® 2.1a FRL | DirectX® 12 |
| NVIDIA® GeForce RTX™ 5070 | Discrete | 12G GDDR7 | 988 | 7680x4320@120Hz with DSC(HDMI®); 7680x4320@165Hz with DSC(DP) | 3x DP 2.1b UHBR20, 1x HDMI® 2.1b FRL | DirectX® 12 |
| NVIDIA® GeForce RTX™ 5070Ti | Discrete | 16G GDDR7 | 1406 | 7680x4320@120Hz with DSC(HDMI®); 7680x4320@165Hz with DSC(DP) | 3x DP 2.1b UHBR20, 1x HDMI® 2.1b FRL | DirectX® 12 |
Monitor Support
Chipset
Memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
| [2] Installed memory is actually 5600MHz or 6400Mhz , but may run at 5600Mhz, 4800Mhz or 4400Mhz or 3200Mhz depending on the memory support capability of Intel®.FeatureValue |
Storage
Storage Support[1]
Up to four drives, 3x M.2 SSD + 1x open 3.5 HDD Bay
• 3.5" HDD bay only for customer self upgrade
• M.2 SSD up to 2TB each
Storage Type***
| Disk Type | Interface |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 5.0 x4 |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Multi-Media
Power Supply
Design
Input Device
Mechanical
Cooling System (Fan & Cooler)**
- 1x rear system fan with ARGB + 2x top system fan with ARGB
- 1x rear system fan with ARGB
- 65W 80MM-Fan airflow cooler
- 150W 120MM-Fan airflow cooler with ARGB light, PCH Heatsink, 3x SSD Heatsink, VRM Heatsink
- 150W 120MM-Fan airflow cooler with ARGB light, M.2 SSD DECO Mylar® Heatsink
- 150W 120MM-Fan airflow cooler with ARGB light, VRM Heatsink
- 150W 120MM-Fan airflow cooler with ARGB light, PCH Heatsink, SSD Heatsink, VRM Heatsink
- 150W 120MM-Fan airflow cooler with ARGB light, PCH Heatsink, 2x SSD Heatsink, VRM Heatsink
- 150W 120MM-Fan airflow cooler with ARGB light, VRM Heatsink, PCH Heatsink
- 200W 240MM-Fan liquid cooler with ARGB light, PCH Heatsink, SSD Heatsink, VRM Heatsink
- 200W 240MM-Fan liquid cooler with ARGB light, M.2 SSD DECO Mylar® Heatsink, VRM Heatsink
- 200W 240MM-Fan liquid cooler with ARGB light, PCH Heatsink, 3x SSD Heatsink, VRM Heatsink
Notes:
| [1] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®**
- Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[1]
Notes:
| [1] The bandwidth of WiFi 7 adapter is 160 MHz.FeatureValue |
Ports[1]
Rear Ports[2]
- 1x USB-C® (USB 10Gbps / 3.2 Gen 2)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 4x USB-A (Hi-Speed USB / USB 2.0)
- 1x Ethernet (2.5GbE RJ-45)
- 1x power connector
- 3x audio out (5.1 channel)
Top Ports
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
| [2] For video ports on discrete graphics, please see graphics section.Classification Default |
Security & Privacy
Service
Warranty[1]
Base Warranty**
- 1-year mail-in service
- 1-year courier or carry-in service
- 1-year limited onsite service
- 2-year courier or carry-in service
- 3-year courier or carry-in service
Notes:
| [1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.StructureLevel2 |
Operating Requirements
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
