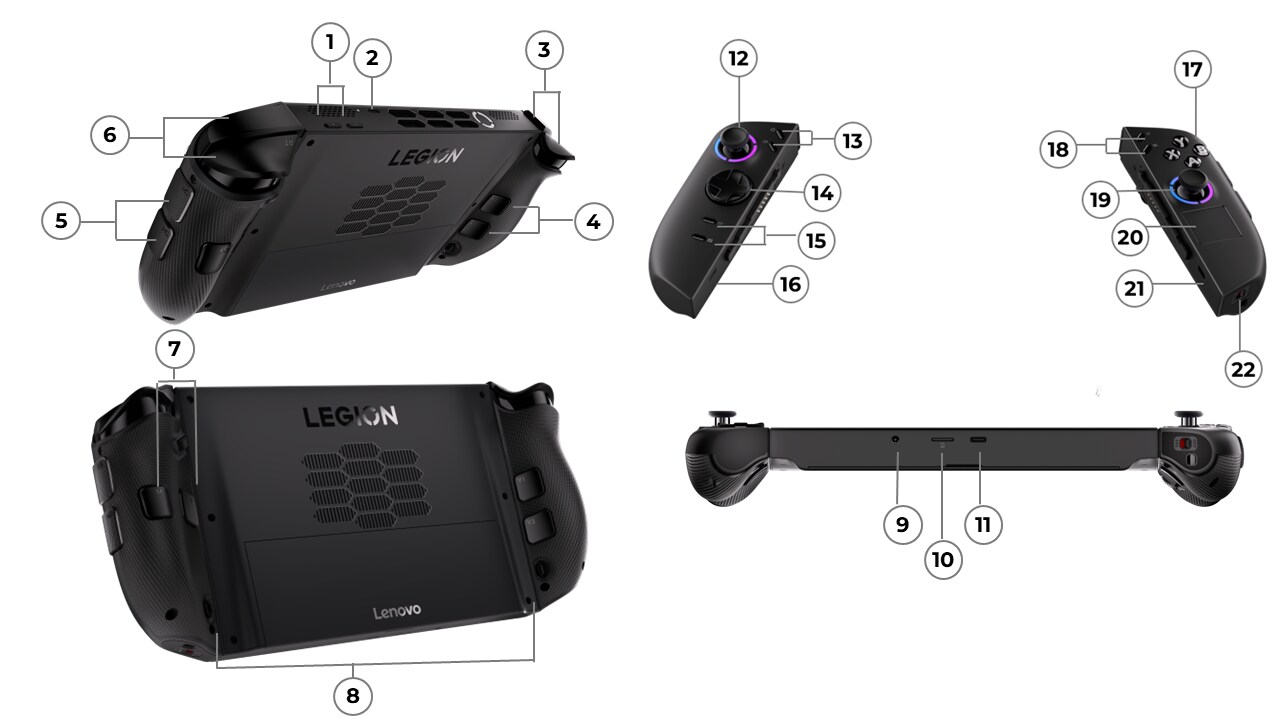

Overview
| 1. | Volume buttons | 12. | Left Joystick |
| 2. | USB-C (USB4 40Gbps), with USB PD 3.0 & DP 1.4 | 13. | Function buttons |
| 3. | LB & LT buttons | 14. | D-pad |
| 4. | Y1 & Y2 buttons | 15. | Function buttons |
| 5. | M1 & M2 buttons | 16. | USB-C (support charging only) |
| 6. | RB & RT buttons | 17. | A B X Y buttons |
| 7. | M3 & Y3 buttons | 18. | Function buttons |
| 8. | Left & right release buttons | 19. | Right Joystick |
| 9. | Headphone / microphone combo jack (3.5mm) | 20. | Touchpad |
| 10. | Card reader | 21. | USB-C (support charging only) |
| 11. | USB-C (USB4 40Gbps), with USB PD 3.0 & DP 1.4 | 22. | FPS mode switch |
Performance
Processor
Operating System
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via USB-C®)
• USB-C® supports up to 8K@30Hz
Chipset
Memory
Notes:
| [1] Installed memory is actually LPDDR5x-8533 but runs as LPDDR5x-8000 due to platform limitation.Product |
Storage
Storage Type**
| Disk Type | Interface | Offering |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 512GB / 1TB |
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 Performance | 2TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
Removable Storage
Multi-Media
Sensor
Battery
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- No power adapter
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Special Features
Design
Display
Display
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 8.8" | WUXGA (1920x1200) | Multi-touch | OLED | 1100nits (HDR peak) / 500nits (SDR typical) | Glossy, anti-fingerprint | 16:10 | 100,000:1 | 100% DCI-P3 | 144Hz | 89° / 89° / 80° / 80° | Corning® Gorilla® Glass 3, DisplayHDR™ True Black 1000, TÜV Low Blue Light |
Multi-mode
Multi-mode
Handheld mode: Play with controllers attached to enjoy the 8.8" gamepad
Detachable mode: Flip the stand to share the gamepad, then share the fun with a multiplayer game
FPS mode: Flip the stand, turn on FPS mode and put the right controller on the dock
TV mode: Dock your system to enjoy games on TV (via USB4® port)
Input Device
Touchpad
Buttonless Mylar® surface touchpad (on the right controller), 24 x 24 mm (0.94 x 0.94 inches)
Controls
A B X Y buttons
D-pad
Touchpad
FPS mode switch
Mouse wheel (on right controller)
Left & right Joysticks
Left & right release buttons
LB & LT buttons
RB & RT buttons
Y1 & Y2 buttons
M3 & Y3 buttons
M1 & M2 buttons
6x function buttons
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Gamepad | 206 x 136.7 x 22.95 mm (8.11 x 5.38 x 0.90 inches) |
| Gamepad with controllers[2] | 295.6 x 136.7 x 42.25 mm (11.64 x 5.38 x 1.66 inches) |
Weight[3]
| Models | Weight |
| Gamepad with controllers | Around 920 g (2.03 lbs) |
| Controllers only | Less than 210 g (0.46 lbs) |
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The height is 50.85 mm (2.08 inches) with the joysticks.FeatureValue |
| [3] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
Notes:
| [1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Classification Default |
Ports[1]
Standard Ports
- 2x USB-C® (USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 2x USB-C® (support charging only)[2]
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Card reader
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
| [2] The ports on the controllers.FeatureValue |
Docking
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for Legion Go 8ASP2
Security & Privacy
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for Legion Go 8ASP2.Product |
Operating Requirements
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
