Legion 5 15IRX10 Last Modify Time: 2025-05-10 00:11:54
Overview
Performance
Processor
Processor Family
Processor
AI (Artificial Intelligence)
AI PC Category
Operating System
Operating System
Monitor Support
Monitor Support
Chipset
Chipset
Memory
Max Memory
Memory Slots
Memory Type
Storage
Storage Support
Storage Slot
Storage Type
Removable Storage
Optical
Card Reader
Multi-Media
Audio Chip
Speakers
Microphone
Camera
Battery
Battery
Max Battery Life
Power Adapter
Power Adapter
Special Features
Special Features
Design
Display
Display
Color Calibration
Touchscreen
Input Device
Pen
Keyboard
Keyboard Backlight
Touchpad
Mechanical
Dimensions (WxDxH)
Weight
Case Color
Surface Treatment
Case Material
System Lighting
Connectivity
Network
WLAN + Bluetooth
WWAN
Ethernet
Ports
Standard Ports
Docking
Docking
Security & Privacy
Security
Security Chip
Fingerprint Reader
BIOS Security
Other Security
Service
Warranty
Base Warranty
Accessories
Bundled Accessories
Bundled Accessories
Operating Requirements
Operating Environment
Temperature
Relative Humidity
Altitude
Certifications
Green Certifications
Green Certifications
Other Certifications
Other Certifications

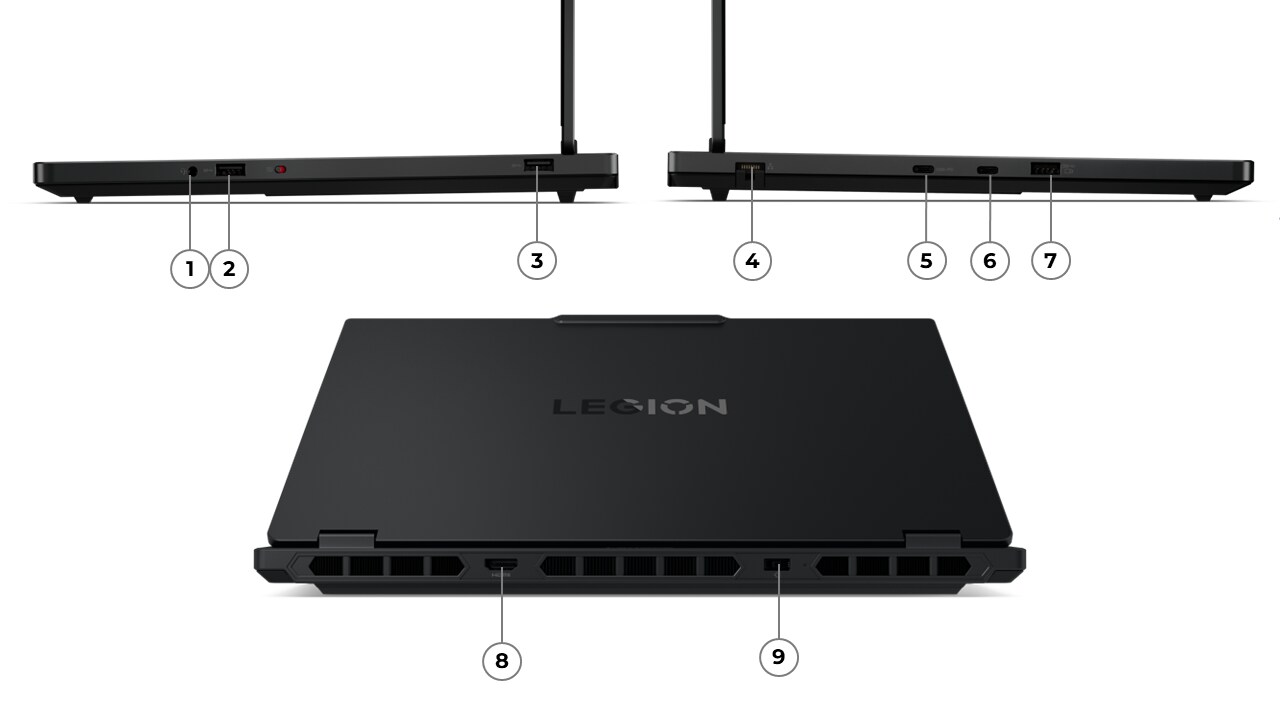

Overview

1.Headphone / microphone combo jack (3.5mm)6.USB-C (USB 10Gbps), with DP 1.4
2.USB-A (USB 5Gbps)7.USB-A (USB 5Gbps), Always On
3.USB-A (USB 5Gbps)8.HDMI
4.Ethernet (RJ-45)9.Power connector
5.USB-C (USB 10Gbps), with USB PD 65-100W & DP 2.1

Performance

Processor

Processor Family

13th Generation Intel® Core™ i7 or 14th Generation Intel® Core™ i7 / i9 Processor

Processor

Processor NameCoresThreadsBase FrequencyMax FrequencyCacheProcessor Graphics
Core i7-14700HX20 (8 P-core + 12 E-core)28P-core 2.1GHz / E-core 1.5GHzP-core 5.5GHz / E-core 3.9GHz33MBIntel® UHD Graphics

AI (Artificial Intelligence)

AI PC Category

AI-Powered Gaming PC[1]
Notes:
[1] AI-Powered Gaming PCs feature Lenovo® AI Engine+ and NVIDIA® GeForce RTX™ GPUs to handle AI-driven tasks and deliver exceptional gaming performance.

Operating System

Operating System**

  • Windows® 11 Pro
  • Windows® 11 Home
  • Windows® 11 Home Single Language
  • No preload operating system

Monitor Support

Monitor Support[1]

Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®) • HDMI® supports up to 8K@60Hz • USB-C® supports up to 5K@60Hz
Notes:
[1] For Max resolution, DSC-enabled display is required.

Chipset

Chipset

Intel® HM770 chipset

Memory

Max Memory[1]

  • Up to 32GB DDR5-4800 offering
  • Up to 32GB DDR5-5600 offering

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Memory Type**

  • DDR5-4800
  • DDR5-5600
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.

Storage

Storage Support[1]

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Storage Type

Disk TypeInterfaceOffering
M.2 2242 SSDPCIe® NVMe®, PCIe® 4.0 x4512GB / 1TB
Notes:
[1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.

Removable Storage

Optical

None

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone

Dual-microphone array

Camera**

  • HD 720p, with E-shutter, fixed focus
  • 5.0MP, with E-shutter, fixed focus

Battery

Battery**

  • 60Wh Rechargeable Li-ion Battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)
  • 80Wh Rechargeable Li-ion Battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)

Max Battery Life[1]

  • Models with 60Wh battery: MobileMark® 30@250nits: 3.1 hr Local video (1080p) playback@150nits: 6.1 hr
  • Models with 80Wh battery: MobileMark® 30@250nits: 4.2 hr Local video (1080p) playback@150nits: 9 hr
Notes:
[1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.

Power Adapter

Power Adapter**[1]

  • 170W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
  • 245W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
Notes:
[1] AC adapter offerings depend on the country.

Special Features

Special Features

AI Chip: LA1

Design

Display

Display**

SizeResolutionTouchTypeBrightnessSurfaceAspect RatioContrast RatioColor GamutRefresh RateViewing Angle (L/R/U/D)Key Features
15.1"WQXGA (2560x1600)NoneOLED500nitsGlossy16:10100,000:1100% DCI-P3165Hz89° / 89° / 89° / 89°DisplayHDR™ True Black 600, Dolby Vision®, TÜV Low Blue Light, TÜV High Gaming Performance, TÜV Rheinland® Flicker Free
15.3"WUXGA (1920x1200)NoneIPS[1]300nitsAnti-glare16:101000:1100% sRGB165Hz89° / 89° / 89° / 89°Dolby Vision®, TÜV Low Blue Light

Color Calibration

X-Rite® factory color calibration

Touchscreen

Non-touch
Notes:
[1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Pen

No support

Keyboard

6-row, multimedia Fn keys, numeric keypad, Copilot key

Keyboard Backlight**

  • 24-Zone RGB backlight
  • White backlight

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Mechanical

Dimensions (WxDxH)[1]

ModelsDimensions
Models with IPS panel344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.86- 0.94 inches)
Models with OLED panel344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79- 0.85 inches)

Weight[2]

ModelsWeight
Models with IPS panelStarting at 2.1 kg (4.63 lbs)
Models with OLED panelStarting at 1.9 kg (4.19 lbs)

Case Color

Eclipse black

Surface Treatment**

  • Models with IPS panel: Painting
  • Models with OLED panel: Aluminium stamping (anodized with sandblasting)

Case Material**

  • Models with OLED panel: Aluminium (top), PC-ABS + 15% Talc (bottom)
  • Models with IPS panel: PC-ABS + 15% Talc (top), PC-ABS + 15% Talc (bottom)

System Lighting

No system lighting
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®**[1]

  • Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card[2]
  • Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[3]

WWAN

No support

Ethernet[4]

Gigabit Ethernet, 1x RJ-45, supports Wake-on-LAN
Notes:
[1] Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.
[2] Wi-Fi® 6 operation is subject to the regulation rules in each country.
[3] Wi-Fi® 7 operation is subject to the regulation rules in each country.
[4] Wake-on-LAN needs the power adapter plugged in.

Ports[1]

Standard Ports

  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1[2]
  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4
  • 1x HDMI® 2.1, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Ethernet (RJ-45)
  • 1x Power connector
Notes:
[1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
[2] It supports Lenovo® protocol for 140W charging but requires a unique Lenovo® adapter for operation.

Docking

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15IRX10

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in chipset

Fingerprint Reader

No fingerprint reader

BIOS Security

  • Master hard disk password
  • Power-on password
  • Supervisor password
  • User hard disk password
  • User password
  • Self-healing BIOS

Other Security

E-shutter

Service

Warranty

Base Warranty**

  • 1-year courier or carry-in service
  • 1-year courier or carry-in with 2-year system board service (Korea only)
  • 2-year (1-yr battery) courier or carry-in service
  • 3-year (1-yr battery) courier or carry-in service

Accessories

Bundled Accessories

Bundled Accessories***[1]

  • Lenovo® Legion™ Gaming Speed Mouse Pad M
  • Lenovo® Legion™ M300s RGB Gaming Mouse (USB connector)
  • None
Notes:
[1] For more compatible accessory solutions, please visit Accessories for Legion 5 15IRX10.

Operating Requirements

Operating Environment

Temperature[1]

At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)

Relative Humidity

  • Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
  • Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
[1] When you charge the battery, its temperature must be no lower than 10°C (50°F).

Certifications

Green Certifications[1]

Green Certifications

  • ErP Lot 6/26
  • RoHS compliant
Notes:
[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.

Other Certifications

Other Certifications

  • (Optional) TÜV Rheinland® Flicker Free
  • (Optional) TÜV Rheinland® High Gaming Performance
  • TÜV Rheinland® Low Blue Light (Hardware Solution)
  • Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
  • The specifications on this page may not be available in all regions, and may be changed or updated without notice.
