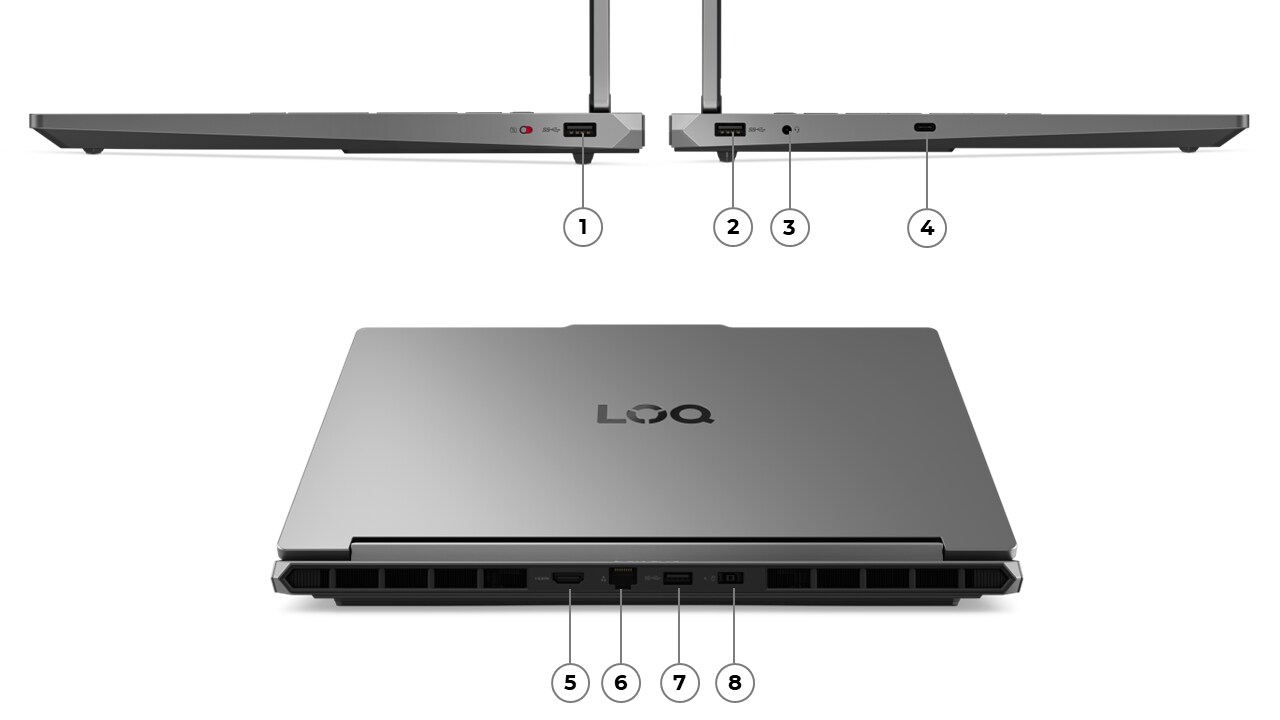

Overview
| 1. | USB-A (USB 5Gbps) | 5. | HDMI |
| 2. | USB-A (USB 5Gbps) | 6. | Ethernet (RJ-45) |
| 3. | Headphone / microphone combo jack (3.5mm) | 7. | USB-A (USB 10Gbps) |
| 4. | USB-C (USB4 40Gbps), with USB PD 65-100W & DP 1.4 | 8. | Power connector |
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | NPU | Overall TOPS |
| AMD Ryzen™ 7 250 | 8 | 16 | 3.3GHz | 5.1GHz | 8MB L2 / 16MB L3 | AMD Radeon™ 780M | AMD Ryzen™ AI, up to 16 TOPS | Up to 38 TOPS |
AI (Artificial Intelligence)
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| Graphics | Type | Memory | Boost Clock | TGP | AI TOPS (Peak) | Key Features |
| NVIDIA® GeForce RTX™ 5050 Laptop GPU | Discrete | 8GB GDDR7 | 2662 MHz | 115W | 440 TOPS | DLSS 4, DirectX® 12 Ultimate |
| NVIDIA® GeForce RTX™ 5060 Laptop GPU | Discrete | 8GB GDDR7 | 2497 MHz | 115W | 572 TOPS | DLSS 4, DirectX® 12 Ultimate |
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via HDMI®, USB-C®)
• HDMI® supports up to 8K@60Hz
• USB-C® supports up to 4K@120Hz
Chipset
Memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.ProductLine Default |
Storage
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] The system supports dual SSD via two M.2 slots, but Lenovo® offers only one SSD configuration with a second slot for user self-expansion.Product |
| [3] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).Classification Default |
| [4] Due to platform limitations, the 1st SSD slot supports PCIE 4.0 x4 Lanes, while the 2nd SSD slot supports PCIE 4.0 x2 Lanes.Product |
Removable Storage
Multi-Media
Battery
Max Battery Life[1]
Models with 60Wh battery:
MobileMark® 30@250nits: 8.5 hr
Local video (1080p) playback@150nits: 13.9 hr
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Special Features
Design
Display
Display**
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Refresh Rate | Viewing Angle (L/R/U/D) | Key Features |
| 15.3" | WUXGA (1920x1200) | Non-touch | IPS[1] | 300nits | Anti-glare | 16:10 | 1000:1 | 100% sRGB | 165Hz | 89° / 89° / 89° / 89° | AMD FreeSync™, NVIDIA® G-SYNC®, Advanced Optimus, TÜV Low Blue Light |
| 15.3" | WQXGA (2560x1600) | Non-touch | IPS[2] | 400nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 180Hz | 89° / 89° / 89° / 89° | NVIDIA® G-SYNC®, AMD FreeSync™, Advanced Optimus, TÜV Low Blue Light |
Notes:
| [1], [2] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The height does not include the bump 1.7mm.Product |
| [3] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country. Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |
Ports
Standard Ports
- 2x USB-A (USB 5Gbps)
- 1x USB-A (USB 10Gbps)
- 1x USB-C® (USB4® 40Gbps), with USB PD 65-100W and DisplayPort™ 1.4[1]
- 1x HDMI® 2.1, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Power connector
Notes:
| [1] Supports Lenovo® protocol for 140W charging but requires a unique Lenovo® adapter for operation.FeatureValue |
Docking
Docking
Various docking solutions supported via USB-C®.
For more compatible docking solutions, please visit Docking for LOQ™ 15AHP11
Security & Privacy
Security
Service
Accessories
Bundled Accessories
Notes:
| [1] For more compatible accessory solutions, please visit Accessories for LOQ™ 15AHP11.Product |
Operating Requirements
Operating Environment
Temperature[1]
At altitudes up to 2438 m (8,000 ft)
- Operating: 5°C to 35°C (41°F to 95°F)
- Storage: 5°C to 43°C (41°F to 109°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
Other Certifications
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
