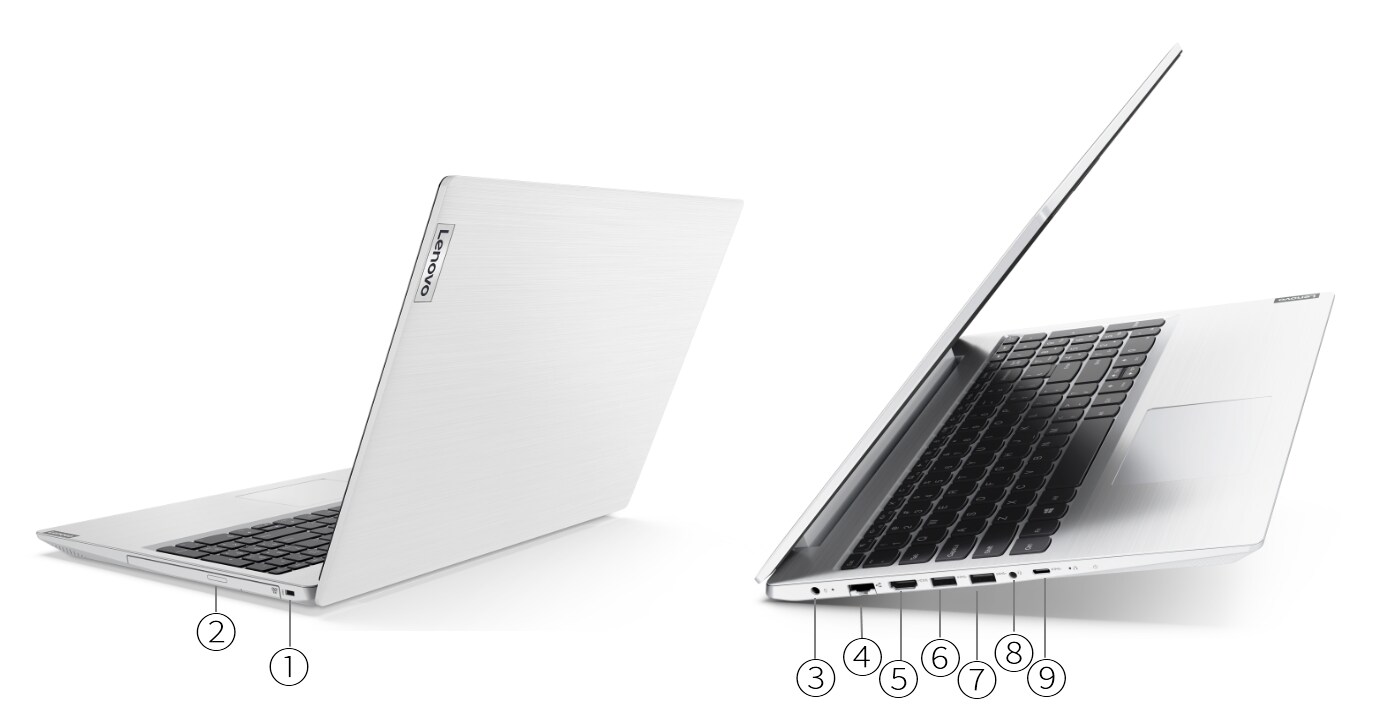

Overview
1. Kensington Security Slot | 6. USB 3.2 Gen 1 |
2. Optical drive * | 7. USB 3.2 Gen 1 |
3. Power connector | 8. Headphone / microphone combo jack (3.5mm) |
4. Ethernet (RJ-45) | 9. USB-C 3.2 Gen 1 (data transfer only) |
5. HDMI 1.4b |
Notes:
- Ports with * are only available on selected models
Performance
Processor
Processor Family
Intel® Celeron®, Intel Pentium®, or 10th Generation Intel Core™ i3 / i5 / i7 Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Celeron 5205U | 2 | 2 | 1.9GHz | - | 2MB | DDR4-2400 | Intel UHD Graphics |
| Pentium Gold 6405U | 2 | 4 | 2.4GHz | - | 2MB | DDR4-2400 | Intel UHD Graphics |
| Core i3-10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4MB | DDR4-2666 | Intel UHD Graphics |
| Core i5-10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6MB | DDR4-2666 | Intel UHD Graphics |
| Core i7-10510U | 4 | 8 | 1.8GHz | 4.9GHz | 8MB | DDR4-2666 | Intel UHD Graphics |
Operating System
Operating System
- Windows® 10 Home 64
- Windows 10 Home in S mode
- Windows 10 Pro 64
- FreeDOS
- No operating system
Graphics
Graphics
| Graphics | Type | Memory | Key Features |
| Intel UHD Graphics | Integrated | Shared | DirectX® 12 |
| NVIDIA® GeForce® MX130 | Discrete | 2GB GDDR5 | DirectX 12 |
| NVIDIA GeForce MX330 | Discrete | 2GB GDDR5 | DirectX 12 |
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI® (up to 3840x2160@30Hz)
Chipset
Memory
Max Memory[1]
- Up to 8GB (4GB soldered + 4GB SO-DIMM) DDR4-2400 offering
- Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-2666 offering
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support
Up to two drives, 1x 2.5" HDD + 1x M.2 2242/2280 SSD
• 2.5" HDD up to 2TB
• M.2 2280 SSD up to 512GB
• M.2 2242 SSD up to 512GB
Storage Type
| Disk Type | Interface | RPM | Security |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K | - |
| M.2 2242 SSD | PCIe NVMe, PCIe 3.0 x2 | - | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | - |
Removable Storage
Multi-Media
Battery
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, and/or JEITA 2.0 battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 15.6" | HD (1366x768) | None | TN | 220 nits | Anti-glare | 16:9 | - | - | - | - |
| 15.6" | FHD (1920x1080) | None | TN | 220 nits | Anti-glare | 16:9 | - | - | - | - |
| 15.6" | FHD (1920x1080) | None | IPS | 250 nits | Anti-glare | 16:9 | - | - | - | - |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Mechanical
Notes:
- The system weight varies depending on configurations
Connectivity
Network
WLAN + Bluetooth®
- 802.11ac 1x1 Wi-Fi + Bluetooth 5.0, M.2 card
- 802.11ac 2x2 Wi-Fi + Bluetooth 5.0, M.2 card
Ports[1]
Standard Ports[2]
- 2x USB 3.2 Gen 1
- 1x USB-C 3.2 Gen 1 (support data transfer only)
- 1x HDMI 1.4b
- 1x Ethernet (RJ-45)
- 1x headphone / microphone combo jack (3.5mm)
- 1x power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formely USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formely USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
- Depending on many factors, actual data transfer speed may be lower than theoretical speed
Security & Privacy
Service
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F)
Certifications
Disclaimer:
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
