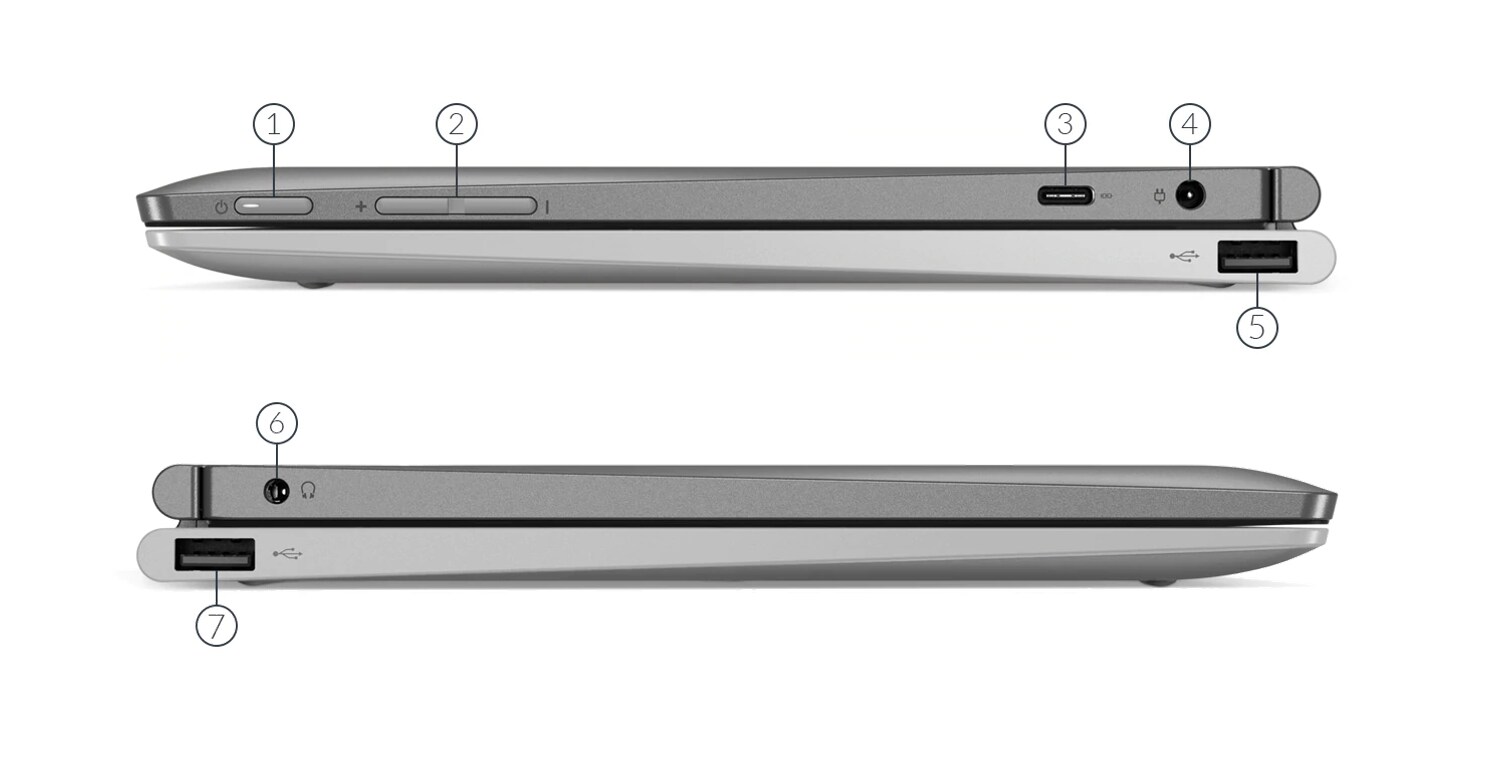

Overview
1. Power button | 5. USB 2.0 |
2. Volume button | 6. Headphone / microphone combo jack (3.5mm) |
3. USB-C 3.2 Gen 1 | 7. USB 2.0 |
4. Power connector |
Performance
Processor
Processor**[1]
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| Celeron N4000 | 2 | 2 | 1.1GHz | 2.6GHz | 4MB | LPDDR4-2400 | Intel UHD Graphics 600 |
| Pentium Silver N5000 | 4 | 4 | 1.1GHz | 2.7GHz | 4MB | LPDDR4-2400 | Intel UHD Graphics 605 |
Notes:
- The maximum supported memory speed will vary on the selected onboard memory.
Operating System
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Graphics**
| Graphics | Type | Memory | Key Features |
| Intel UHD Graphics 600 | Integrated | Shared | DirectX® 12 |
| Intel UHD Graphics 605 | Integrated | Shared | DirectX 12 |
Monitor Support
Chipset
Memory
Max Memory[1]
- 2GB soldered memory, not upgradable
- 4GB soldered memory, not upgradable
- 8GB soldered memory, not upgradable
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
- 32GB eMMC on systemboard
- 64GB eMMC on systemboard
- 128GB eMMC on systemboard
- MicroSD card, supports FAT32 file up to 128GB
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Camera**
- Front 2.0-megapixel RGB, fixed focus
- Front 2.0-megapixel RGB, fixed focus, rear 5.0-megapixel RGB, autofocus
Sensor
Battery
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Power Adapter**[1]
- 45W round tip (2-pin, wall-mount) AC adapter, 100-240V, 50-60Hz
- 45W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display**[1][2]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio |
| 10.1" | WUXGA (1920x1200) | Multi-touch | IPS | 300 nits | Anti-glare | 16:10 |
| 10.1" | HD (1280x800) | Multi-touch | IPS | 300 nits | Anti-glare | 16:10 |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
- In marketing terms, WUXGA is FHD+
Input Device
Pen**[1]
- Lenovo Active Pen with replaceable AAAA alkaline battery, 2048 levels of pressure sensitivity
- Lenovo Active Pen without replaceable AAAA alkaline battery, 2048 levels of pressure sensitivity
- No support
Notes:
- Battery needs to be purchased separately for the models without battery Pen is incompatible with the models which don't come with Active Pen.
Mechanical
Dimensions (WxDxH)[1]
| Models | Dimensions |
| Pad with Keyboard dock | Pad: 249 x 178 x 9.5 mm (9.8 x 7.01 x 0.37 inches) Keyboard dock: 249 x 186 x 8.5 mm (9.8 x 7.32 x 0.33 inches) |
| Pad | 249 x 178 x 9.5 mm (9.8 x 7.01 x 0.37 inches) |
Weight[2]
| Models | Weight |
| LTE Pad with keyboard dock | LTE pad: around 610 g (1.34 lbs) Keyboard dock: around 535 g (1.18 lbs) Total: around 1,145 g (2.52 lbs) |
| LTE pad | Around 610 g (1.34 lbs) |
| WiFi pad with keyboard dock | WiFi pad: around 600 g (1.32 lbs) Keyboard dock: around 535 g (1.18 lbs) Total: around 1,135 g (2.50 lbs) |
| WiFi pad | Around 600 g (1.32 lbs) |
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
WLAN + Bluetooth®**[1]
- 802.11ac 1x1 Wi-Fi® + Bluetooth 4.2
- 802.11ac dual band 2x2 Wi-Fi + Bluetooth 4.2
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Standard Ports
- 1x USB-C 3.2 Gen 1 (support data transfer and Power Delivery)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Pogo pin dock connector
- 1x Power connector
Optional Ports***
- 1x Nano-SIM & microSD card slot (WWAN support models)
- 1x microSD card slot (WLAN models)
- 2x USB 2.0 (on keyboard dock)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Service
Environmental
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
