IdeaPad Slim 5 16IPH11 Last Modify Time: 2026-01-26 13:19:11
Overview
Performance
Processor
Processor Family
Processor
AI (Artificial Intelligence)
AI PC Category
NPU
Operating System
Operating System
Graphics
Graphics
Monitor Support
Monitor Support
Chipset
Chipset
Memory
Max Memory
Memory Slots
Memory Type
Storage
Max Storage Support
Storage Slot
Storage Type
Removable Storage
Card Reader
Multi-Media
Audio Chip
Speakers
Microphone
Camera
Battery
Battery
Max Battery Life
Power Adapter
Power Adapter
Design
Display
Display
Touchscreen
Screen-to-Body Ratio
Input Device
Pen
Keyboard
Keyboard Backlight
Touchpad
Mechanical
Dimensions (WxDxH)
Weight
Case Color
Case Material
Surface Treatment
Connectivity
Network
WLAN + Bluetooth
WWAN
Ethernet
Ports
Standard Ports
Docking
Docking
Security & Privacy
Security
Security Chip
Fingerprint Reader
BIOS Security
Other Security
Service
Warranty
Base Warranty
Accessories
Bundled Accessories
Bundled Accessories
Operating Requirements
Operating Environment
Temperature
Relative Humidity
Altitude
Certifications
Green Certifications
Green Certifications
Other Certifications
Mil-Spec Test
Other Certifications

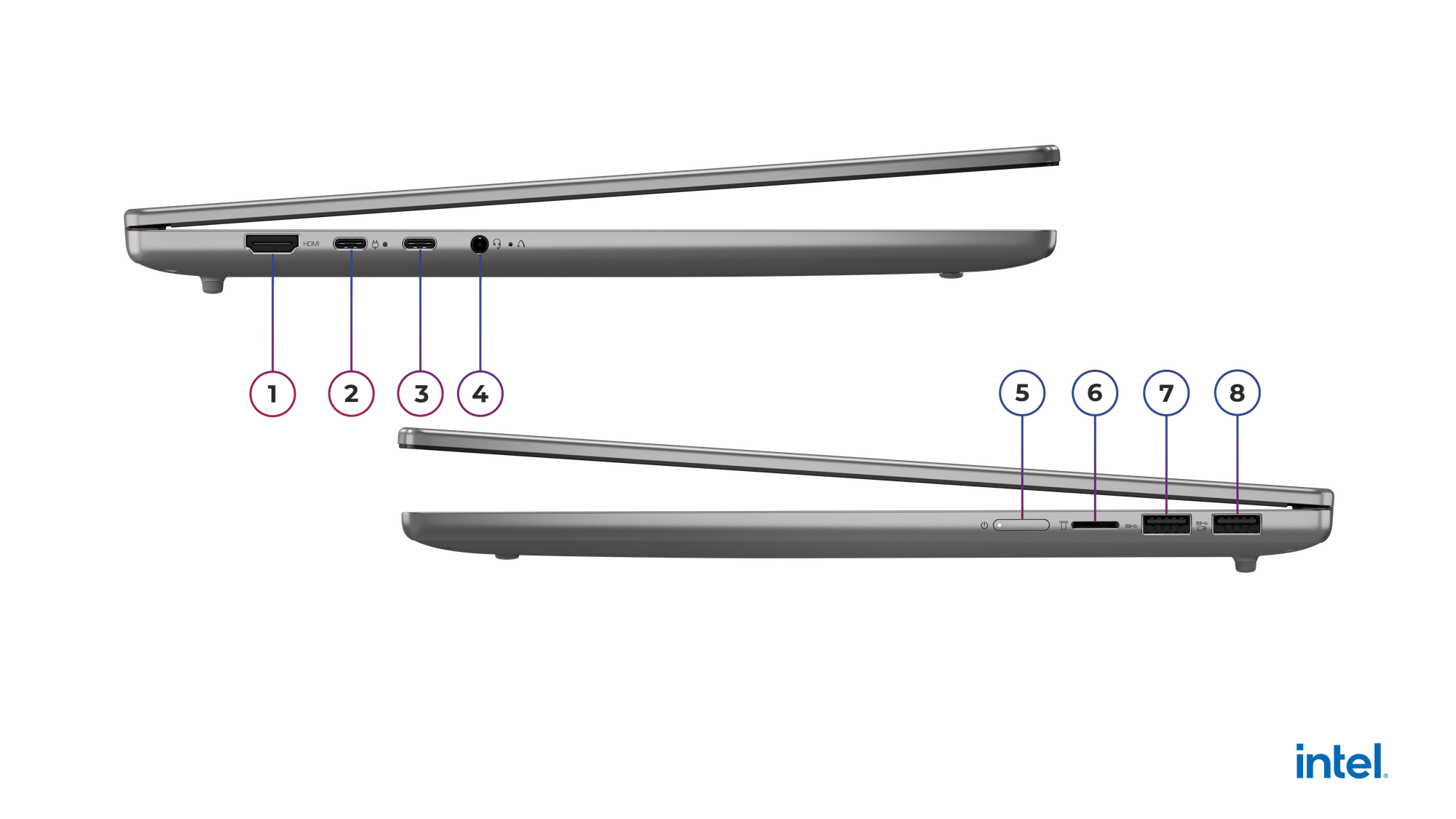

Overview

1.HDMI5.Power button
2.USB-C (USB 10Gbps), with USB PD 3.0 & DP 1.26.microSD card reader
3.USB-C (USB 10Gbps), with USB PD 3.0 & DP 1.27.USB-A (USB 5Gbps)
4.Headphone / microphone combo jack (3.5mm)8.USB-A (USB 5Gbps), Always On

Performance

Processor

Processor Family

Intel® Core™ Ultra 5 / 7 Processor (Series 3)

Processor**

Processor NameCoresThreadsBase FrequencyMax FrequencyCacheProcessor GraphicsNPU
Core Ultra 5 3226C (2 P-core + 4 LP E-core)6P-core 2.5GHz / LP E-core 1.9GHzP-core 4.4GHz / LP E-core 3.3GHz12MB Intel® Smart CacheIntel® GraphicsUp to 46 TOPS
Core Ultra 5 3258 (4 P-core + 4 LP E-core)8P-core 2.1GHz / LP E-core 1.6GHzP-core 4.5GHz / LP E-core 3.4GHz12MB Intel® Smart CacheIntel® GraphicsUp to 47 TOPS
Core Ultra 7 3558 (4 P-core + 4 LP E-core)8P-core 2.3GHz / LP E-core 1.7GHzP-core 4.7GHz / LP E-core 3.5GHz12MB Intel® Smart CacheIntel® GraphicsUp to 49 TOPS
Core Ultra 7 356H16 (4 P-core + 8 E-core + 4 LP E-core)16P-core 1.9GHz / E-core 1.5GHz / LP E-core 1.5GHzP-core 4.7GHz / E-core 3.5GHz / LP E-core 3.3GHz18MB Intel® Smart CacheIntel® GraphicsUp to 50 TOPS

AI (Artificial Intelligence)

AI PC Category

Copilot+ PC

NPU

Up to 50 TOPS

Operating System

Operating System**

  • Windows® 11 Pro
  • Windows® 11 Home
  • Windows® 11 Home Single Language
  • No preload operating system

Graphics

Graphics

GraphicsTypeMemoryTGPKey Features
Intel® GraphicsIntegratedSharedShare CPU TDPDirectX® 12 Ultimate

Monitor Support

Monitor Support

Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)

Chipset

Chipset

Intel® SoC (System on Chip) platform

Memory

Max Memory

Up to 32GB DDR5-5600 offering

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Memory Type

DDR5-5600

Storage

Max Storage Support[1][2]

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB

Storage Slot[3]

Two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe® 4.0 x4 slot

Storage Type

Disk TypeInterfaceOffering
M.2 2242 SSDPCIe® NVMe®, PCIe® 4.0 x4512GB / 1TB
Notes:
[1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.
[2] The system supports dual SSD via two M.2 slots, but Lenovo® offers only one SSD configuration with a second slot for user self-expansion.
[3] The actual data transfer rate of the following PCIe® interface also depends on the capabilities of the connected PCIe® device. The listed values represent theoretical maximums. PCIe® 3.0 (x2 / x4): 2 GB/s (16 Gbps) / 4 GB/s (32 Gbps); PCIe® 4.0 (x2 / x4): 4 GB/s (32 Gbps) / 8 GB/s (64 Gbps); PCIe® 5.0 (x2 / x4): 8 GB/s (64 Gbps) / 16 GB/s (128 Gbps).

Removable Storage

Card Reader

microSD card reader

Multi-Media

Audio Chip

High Definition (HD) Audio

Speakers

Stereo speakers, 2W x2, optimized with Dolby Audio™

Microphone

Dual-microphone array

Camera**

  • FHD 1080p + IR, with privacy shutter, fixed focus, with ToF sensor
  • 5.0MP, with privacy shutter, fixed focus

Battery

Battery**

  • 50Wh Rechargeable Li-ion Battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
  • 60Wh Rechargeable Li-ion Battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
  • 80Wh Rechargeable Li-ion Battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)

Max Battery Life[1]

MobileMark® 30@250nits: 21.5 hr Local video (1080p) playback@150nits: 36.6 hr
Notes:
[1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.

Power Adapter

Power Adapter**[1]

  • 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
  • 65W USB-C® slim (2-pin, wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
  • 100W USB-C® slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
  • No power adapter
Notes:
[1] AC adapter offerings depend on the country.

Design

Display

Display**

SizeResolutionTouchTypeBrightnessSurfaceAspect RatioContrast RatioColor GamutRefresh RateViewing Angle (L/R/U/D)Key Features
16"WUXGA (1920x1200)Non-touchOLED300nitsGlossy16:10100,000:1100% DCI-P360Hz85° / 85° / 85° / 85°TÜV Low Blue Light (Hardware)
16"WUXGA (1920x1200)NoneIPS[1]400nitsAnti-glare16:101000:145% NTSC60Hz85° / 85° / 85° / 85°TÜV Low Blue Light (Software)
16"WUXGA (1920x1200)Multi-touchIPS[2]400nitsAnti-glare16:101200:1100% sRGB120Hz89° / 89° / 89° / 89°TÜV Low Blue Light (Hardware)
16"WUXGA (1920x1200)Non-touchIPS[3]400nitsAnti-glare16:101200:1100% sRGB120Hz85° / 85° / 85° / 85°TÜV Low Blue Light (Hardware)
16"2.8K (2880x1800)Non-touchOLED500nitsGlossy16:10100,000:1100% DCI-P3120Hz85° / 85° / 85° / 85°TÜV Low Blue Light (Hardware), DisplayHDR™ True Black 1000

Touchscreen

  • Capacitive-type multi-touch, supports 10-point touch
  • Non-touch

Screen-to-Body Ratio

90% AAR (active area ratio)
Notes:
[1], [2], [3] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Pen

No support

Keyboard

6-row, multimedia Fn keys, key travel 1.3mm, numeric keypad, Copilot key

Keyboard Backlight

  • LED backlight
  • Non-backlight

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Mechanical

Dimensions (WxDxH)[1]

356.5 x 250.6 x 16.9 mm (14.03 x 9.87 x 0.67 inches)

Weight[2]

ModelsWeight
Models with 60Wh battery and IPS panelStarting at 1.85 kg (4.08 lbs)
Models with 50Wh battery and IPS panelStarting at 1.81 kg (3.99 lbs)
Models with 80Wh battery and IPS panelStarting at 1.91 kg (4.21 lbs)
Models with 50Wh battery and OLED panelStarting at 1.65 kg (3.64 lbs)
Models with 60Wh battery and OLED panelStarting at 1.69 kg (3.73 lbs)
Models with 80Wh battery and OLED panelStarting at 1.75 kg (3.86 lbs)

Case Color**

  • Breeze moss
  • Cosmic blue
  • Jelly mint
  • Luna grey

Case Material

Aluminium (top), aluminium (bottom)

Surface Treatment**

  • Anodizing sandblasting
  • Anodizing sandblasting FIFA® edition
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®**[1]

  • Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card
  • Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card

WWAN

No support

Ethernet

No onboard Ethernet
Notes:
[1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country. Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.

Ports[1]

Standard Ports

  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
  • 2x USB-C® (USB 10Gbps), with USB PD 3.0 and DisplayPort™ 1.2
  • 1x HDMI® 2.1, up to 4K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x microSD card reader
Notes:
[1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.

Docking

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for IdeaPad® Slim 5 16IPH11

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in SoC

Fingerprint Reader

No fingerprint reader

BIOS Security

  • Administrator password
  • Master hard disk password
  • Power-on password
  • User hard disk password
  • User password
  • Self-healing BIOS

Other Security

  • Camera privacy shutter
  • (Optional) IR camera for Windows® Hello (facial recognition)

Service

Warranty

Base Warranty**

  • 1-year courier or carry-in service
  • 1-year courier or carry-in with 2-year system board service (Korea only)
  • 2-year (1-yr battery) courier or carry-in service
  • 3-year (1-yr battery) courier or carry-in service

Accessories

Bundled Accessories

Bundled Accessories***[1]

  • Lenovo® 350 Bluetooth® Silent Mouse (Jelly Mint World Cup Edition) without battery
  • Lenovo® 350 Bluetooth® Silent Mouse (Breeze Moss World Cup Edition) without battery
  • Lenovo® 16" Laptop ECO Backpack B210 (black)
  • Lenovo® E310 True Wireless Stereo Earbuds (white)
  • Lenovo® WL310 Bluetooth® Silent Mouse (grey)
  • None
Notes:
[1] For more compatible accessory solutions, please visit Accessories for IdeaPad® Slim 5 16IPH11.

Operating Requirements

Operating Environment

Temperature[1]

  • At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
  • At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)

Relative Humidity

  • Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
  • Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
[1] When you charge the battery, its temperature must be no lower than 10°C (50°F).

Certifications

Green Certifications[1]

Green Certifications[2]

  • ENERGY STAR® 9.0
  • EPEAT™ Gold Registered
  • ErP Lot 6/26
  • RoHS compliant
Notes:
[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.
[2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.

Other Certifications

Mil-Spec Test

MIL-STD-810H military test passed (21 test items)

Other Certifications

  • (Optional) TÜV Rheinland® Low Blue Light (Hardware Solution)
  • (Optional) TÜV Rheinland® Low Blue Light (Software Solution)
  • TÜV Rheinland® Flicker Free
  • Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
  • The specifications on this page may not be available in all regions, and may be changed or updated without notice.
