Processor
Processor Family
Intel® H Series Core 5 / 7 Processor (Series 2)
Processor**
| Core 5 210H | 8 (4 P-core + 4 E-core) | 12 | P-core 2.2GHz / E-core 1.6GHz | P-core 4.8GHz / E-core 3.6GHz | 12MB | Intel® Graphics |
| Core 5 220H | 12 (4 P-core + 8 E-core) | 16 | P-core 2.7GHz / E-core 2.0GHz | P-core 4.9GHz / E-core 3.7GHz | 18MB | Intel® Graphics |
| Core 7 240H | 10 (6 P-core + 4 E-core) | 16 | P-core 2.5GHz / E-core 1.8GHz | P-core 5.2GHz / E-core 4.0GHz | 24MB | Intel® Graphics |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics
| Intel® Graphics | Integrated | Shared | Share CPU TDP | DirectX® 12.1 |
Monitor Support
Monitor Support
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and USB-C®)
• HDMI® supports up to 4K@30Hz
• USB-C® supports up to 4K@60Hz
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory
- 16GB soldered memory, not upgradable
- 32GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Storage
Storage Support[1]
One drive, up to 1TB M.2 2242 SSD
Storage Slot
One M.2 2280 PCIe® 4.0 x4 slot
Storage Type
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4 | 512GB / 1TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
microSD card reader
Multi-Media
Audio Chip
High Definition (HD) Audio
Speakers
Stereo speakers, 2W x2, optimized with Dolby Audio™
Microphone
Dual-microphone array
Camera**
- FHD 1080p + IR, with privacy shutter, fixed focus, with ToF sensor
- FHD 1080p, with privacy shutter, fixed focus
Battery
Battery**
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
- Integrated Li-Polymer 76Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
Max Battery Life[1]
- Models with 57Wh battery:
Local video (1080p) playback@150nits: 16.2 hr
- Models with 76Wh battery:
Local video (1080p) playback@150nits: 21.2 hr
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter**[1]
- 65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
- 65W USB-C® slim (wall-mount) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
Notes:
| [1] AC adapter offerings depend on the country.Classification Default |
Display
Display**
| 15.3" | WUXGA (1920x1200) | None | IPS[1] | 300nits | Anti-glare | 16:10 | 1200:1 | 45% NTSC | 60Hz | 85° / 85° / 85° / 85° | TÜV Low Blue Light (Software) |
| 15.3" | WUXGA (1920x1200) | None | IPS[2] | 300nits | Anti-glare | 16:10 | 1200:1 | 100% sRGB | 60Hz | 85° / 85° / 85° / 85° | TÜV Low Blue Light (Software) |
Notes:
| [1], [2] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Keyboard
6-row, multimedia Fn keys, numeric keypad, Copilot key
Keyboard Backlight
- LED backlight
- Non-backlight
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Mechanical
Dimensions (WxDxH)[1]
343.5 x 238.21 x 17.42 mm (13.52 x 9.38 x 0.69 inches)
Weight[2]
Around 1.79 kg (3.95 lbs)
Surface Treatment
Aluminium stamping (anodized)
Case Material
Aluminium (top), aluminium (bottom)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet
No onboard Ethernet
WLAN + Bluetooth®
Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card

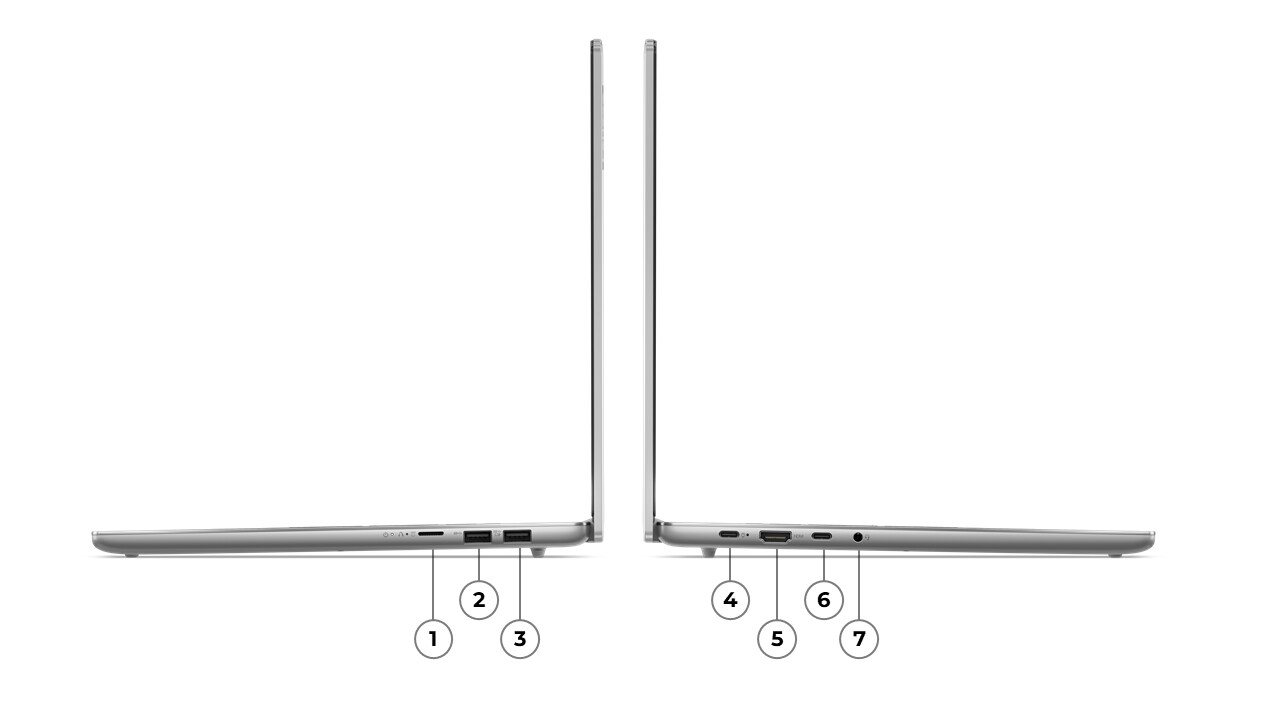

Ports
Standard Ports[1]
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with USB PD 3.0 and DisplayPort™ 1.4
- 1x HDMI® 1.4
- 1x Headphone / microphone combo jack (3.5mm)
- 1x microSD card reader
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.Product |
Docking
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
Fingerprint Reader
- Touch style fingerprint reader on palm rest
- No fingerprint reader
BIOS Security
- Administrator password
- User password
- Master hard disk password
- User hard disk password
- Self-healing BIOS
Other Security
- (Optional) IR camera for Windows® Hello (facial recognition)
- Camera privacy shutter
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft)
- Operating: 5°C to 35°C (41°F to 95°F)
- Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft)
- Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)
Altitude
Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered[3]
- ErP Lot 6/26
- RoHS compliant
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
Mil-Spec Test
MIL-STD-810H military test passed (21 test items)
Other Certifications
- TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light (Software Solution)
