Processor
Processor Family
Intel® N-series or Intel® Core™ 3 N-series Processor
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- Windows® 11 Home Single Language in S mode
- Windows® 11 Home in S mode
- No preload operating system
Monitor Support
Monitor Support
Supports up to 3 independent displays (native display and 2 external monitors via HDMI® and USB-C®)
• HDMI® supports up to 4K@30Hz
• USB-C® supports up to 4K@60Hz
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory
- 4GB soldered memory, not upgradable
- 8GB soldered memory, not upgradable
Memory Slots
Memory soldered to systemboard, no slots
Memory Type[1]
LPDDR5-4800
Notes:
| [1] Installed memory is actually LPDDR5-6400, LPDDR5x-7500, LPDDR5x-8533 but run as LPDDR5-4800 due to platform limitation.Product |
Storage
Storage Support[1]
- 128GB UFS 2.2 on systemboard
- One drive, up to 1TB M.2 2242 SSD
Storage Slot
- UFS on systemboard, no slots (UFS models)
- One M.2 PCIe® 3.0 x4 slot (M.2 SSD models)
Storage Type**
| Flash Memory | UFS 2.2[2] | 128GB |
| M.2 2242 SSD | PCIe® NVMe®, PCIe® 4.0 x4[3] | 256GB / 512GB / 1TB |
Notes:
| [1] The storage capacity supported is based on the test results with current Lenovo® storage offerings.Classification Default |
| [2] UFS 2.2 storage is downgraded to closer to UFS 2.1 due to platform limitations.FeatureValue |
| [3] M.2 PCIe® 4.0 x4 SSD in the M.2 PCIe® 3.0 x4 slot is downgraded to PCIe® 3.0 x4 performance.FeatureValue |
Removable Storage
Card Reader
SD card reader
Multi-Media
Audio Chip
High Definition (HD) Audio
Speakers
User-facing stereo speakers, 1.5W x2, optimized with Dolby Audio™
Microphone
Dual-microphone array
Camera**
- FHD 1080p, with privacy shutter, fixed focus
- HD 720p, with privacy shutter, fixed focus
Battery
Battery**
- Integrated Li-Polymer 47Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge Boost (get 2 hours of runtime with a 15-minute charge)
Max Battery Life[1]
- Local video (1080p) playback@150nits: 12.9 hr (47Wh battery)
- Local video (1080p) playback@150nits: 15 hr (57Wh battery)
Notes:
| [1] All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark® 2018, MobileMark® 25, MobileMark® 30, JEITA 2.0, JEITA 3.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.Classification Default |
Power Adapter
Power Adapter
65W round tip (3-pin) AC adapter, 100-240V, 50-60Hz
Display
Display**
| 14" | HD (1366x768) | None | TN | 250nits | Anti-glare | 16:9 | 400:1 | 45% NTSC | 45° / 45° / 15° / 35° |
| 14" | FHD (1920x1080) | None | TN | 250nits | Anti-glare | 16:9 | 400:1 | 45% NTSC | 45° / 45° / 15° / 35° |
| 14" | FHD (1920x1080) | None | IPS[1] | 300nits | Anti-glare | 16:9 | 700:1 | 45% NTSC | 85° / 85° / 85° / 85° |
Notes:
| [1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.FeatureValue |
Input Device
Keyboard
6-row, multimedia Fn keys, Copilot key
Keyboard Backlight
- LED backlight
- Non-backlight
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 62 x 104 mm (2.44 x 4.09 inches)
Mechanical
Dimensions (WxDxH)[1]
| Models with 47Wh battery | 324.1 x 213.7 x 17.9 mm (12.76 x 8.41 x 0.70 inches) |
| Models with 57Wh battery | 324.1 x 213.7 x 17.9-18.9 mm (12.76 x 8.41 x 0.70-0.74 inches) |
Weight[2]
Starting at 1.31 kg (2.89 lbs)
Surface Treatment
IMR (Top), Texture (Bottom)
Case Material
PC-ABS (top), PC-ABS (bottom)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
Ethernet
No onboard Ethernet
WLAN + Bluetooth®
Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card

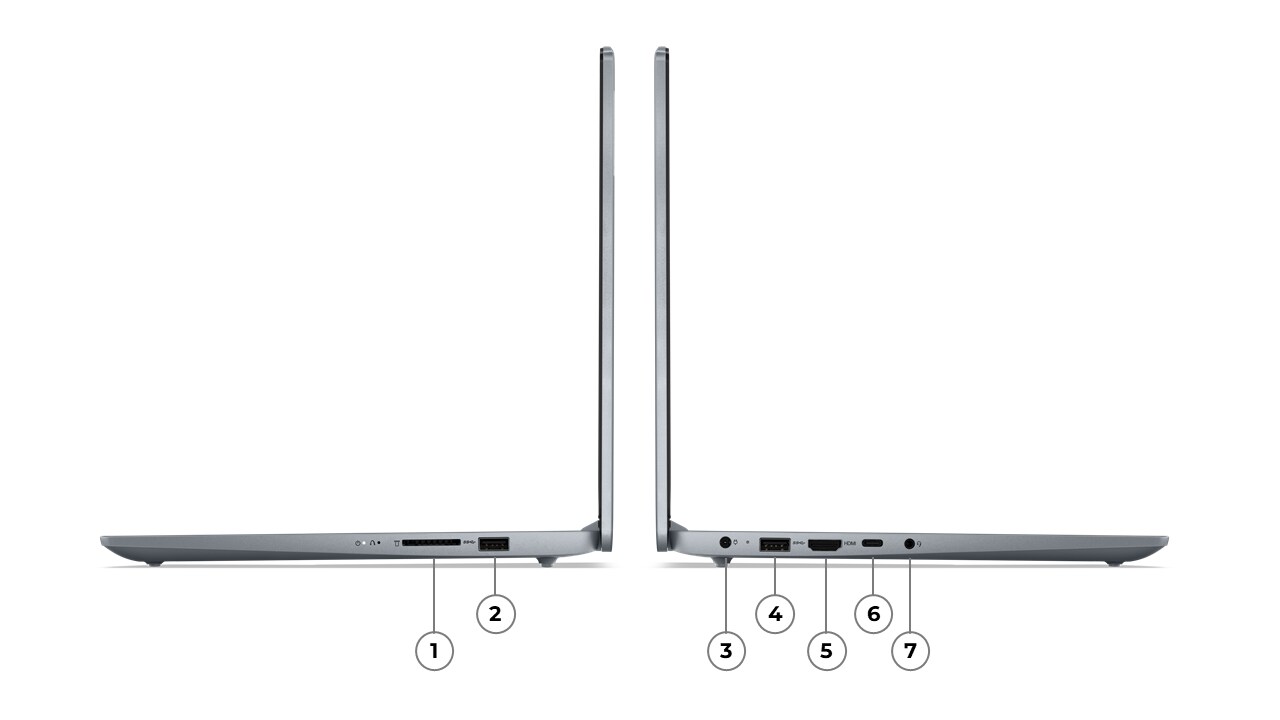

Ports[1]
Standard Ports
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with USB PD 3.0 and DisplayPort™ 1.2
- 1x HDMI® 1.4
- 1x Headphone / microphone combo jack (3.5mm)
- 1x SD card reader
- 1x Power connector
Notes:
| [1] The transfer speed of the ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.StructureLevel2 |
Docking
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
Fingerprint Reader
- Touch style fingerprint reader integrated in power button
- No fingerprint reader
BIOS Security
- Administrator password
- Hard disk password (M.2 SSD models only)
- Power-on password
- User password
- Self-healing BIOS
Other Security
Camera privacy shutter
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft)
- Operating: 5°C to 35°C (41°F to 95°F)
- Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft)
- Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Relative Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Altitude
Maximum altitude (without pressurization): 3048 m (10,000 ft)
Notes:
| [1] When you charge the battery, its temperature must be no lower than 10°C (50°F).Classification Default |
Green Certifications[1]
Green Certifications[2]
- ENERGY STAR® 8.0
- EPEAT™ Silver Registered[3]
- ErP Lot 6/26
- RoHS compliant
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
| [2] EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.Classification Default |
| [3] EPEAT™ is registered where applicable, please visit epeat.net for registration status by country.FeatureValue |
Other Certifications
Mil-Spec Test
MIL-STD-810H military test passed (21 test items)
Other Certifications
TÜV Rheinland® Low Blue Light (Software Solution)
