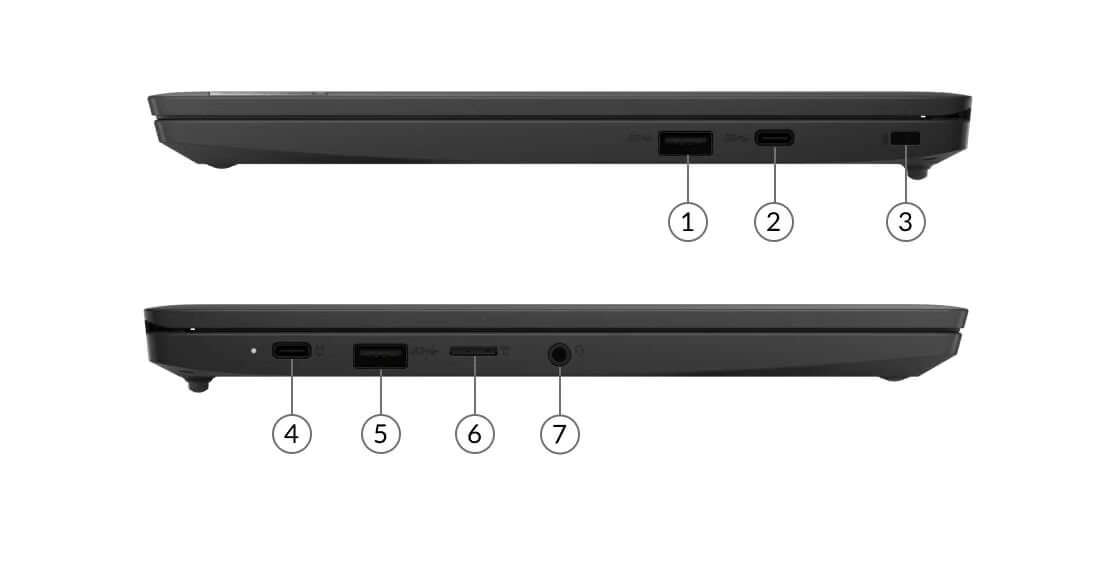

Overview
1. USB 3.2 Gen 1 | 5. USB 3.2 Gen 1 |
2. USB-C 3.2 Gen 1 | 6. microSD card reader |
3. Kensington Security Slot | 7. Headphone / microphone combo jack (3.5mm) |
4. USB-C 3.2 Gen 1 |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD A4-9120C | 2 | 2 | 1.6GHz | 2.4GHz | 1MB L2 | DDR4-1866 | AMD Radeon™ R4 Graphics |
| AMD A6-9220C | 2 | 2 | 1.8GHz | 2.7GHz | 1MB L2 | DDR4-1866 | AMD Radeon R5 Graphics |
Operating System
Notes:
- 1 :Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Graphics**
| Graphics | Type | Memory | Key Features |
| AMD Radeon R5 Graphics | Integrated | Shared | DirectX® 12 |
| AMD Radeon R4 Graphics | Integrated | Shared | DirectX 12 |
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via USB-C® (up to 3840x2160@30Hz)
Chipset
Memory
Notes:
- 1 :The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Notes:
- 1 :The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Battery
Notes:
- 1 :All battery life claims are approximate maximum and based on results using the MobileMark® 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Notes:
- 1 :AC adapter offerings depend on the country.
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio |
| 11.6" | HD (1366x768) | None | TN | 250 nits | Anti-glare | 16:9 |
Notes:
- 1 :California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Mechanical
Notes:
- 1 :The system dimensions may vary depending on configurations.
- 2 :The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Ports[1]
Standard Ports
- 2x USB 3.2 Gen 1
- 2x USB-C 3.2 Gen 1 (support data transfer, Power Delivery and DisplayPort™ 1.2)
- 1x Card reader
- 1x Headphone / microphone combo jack (3.5mm)
Notes:
- 1 :The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Service
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- 1 :When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
Green Certifications[1]
Notes:
- 1 :The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
