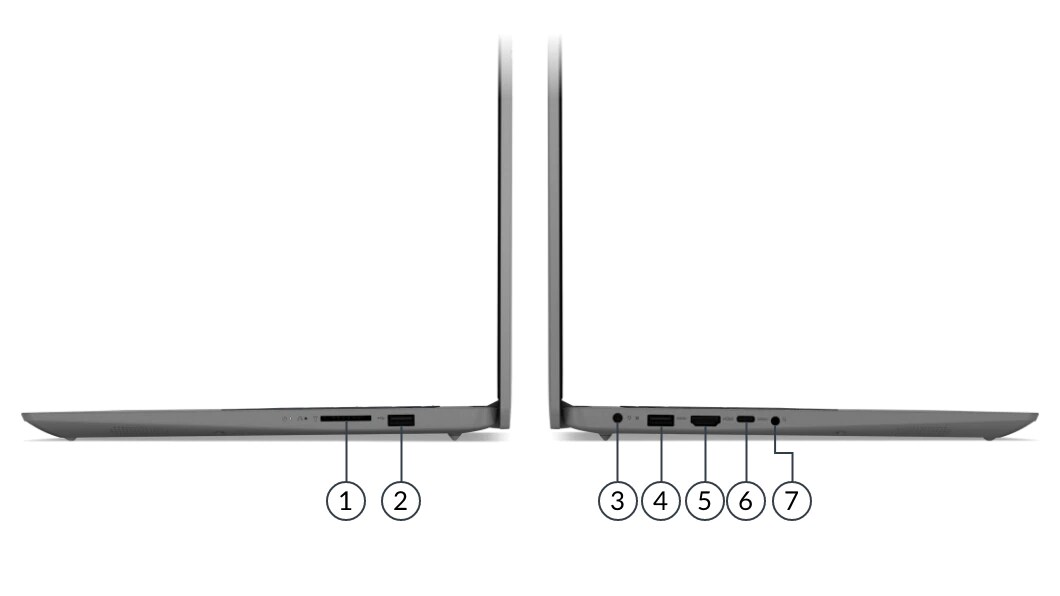

Overview
1. Card reader | 5. HDMI 1.4b |
2. USB 2.0 | 6. USB-C 3.2 Gen 1 (data transfer only) |
3. Power connector | 7. Headphone / microphone combo jack (3.5mm) |
4. USB 3.2 Gen 1 |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| AMD Ryzen 3 5300U | 4 | 8 | 2.6GHz | 3.8GHz | 2MB L2 / 4MB L3 | AMD Radeon™ Graphics |
| AMD Ryzen 5 5500U | 6 | 12 | 2.1GHz | 4.0GHz | 3MB L2 / 8MB L3 | AMD Radeon Graphics |
| AMD Ryzen 7 5700U | 8 | 16 | 1.8GHz | 4.3GHz | 4MB L2 / 8MB L3 | AMD Radeon Graphics |
Operating System
Operating System**[1]
- Windows® 11 Pro
- Windows 11 Home
- Windows 11 Home in S mode
- Windows 11 Home Single Language
- Windows 11 Home Single Language in S mode
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home 64 Single Language
- Windows 10 Home Single Language in S mode
- Windows 10 Home in S mode
- No operating system
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.
Graphics
Monitor Support
Monitor Support
Supports up to 2 independent displays (native display and 1 external monitor via HDMI®)
• HDMI supports up to 4K@30Hz
Chipset
Memory
Max Memory[1]
- Up to 12GB (4GB soldered + 8GB SO-DIMM) DDR4-3200 offering
- Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-3200 offering
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Support[1]
- Models with 38Wh battery: up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB
- Models with 45Wh battery: one drive, 1x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB
Storage Slot
- Models with 38Wh battery: one 2.5" drive slot + one M.2 slot • One 2.5" SATA HDD slot • One M.2 2280 PCIe® 3.0 x4 slot
- Models with 45Wh battery: one M.2 slot • One M.2 2280 PCIe 3.0 x4 slot
Storage Type***
| Disk Type | Interface | RPM |
| 2.5" SATA HDD | SATA 6Gb/s | 5.4K |
| M.2 2242 SSD | PCIe NVMe®, PCIe 3.0 x4 | - |
| M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - |
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Battery
Battery**
- Integrated Li-Polymer 38Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
- Integrated Li-Polymer 45Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
Max Battery Life[1]
- Models with 38Wh battery: MobileMark® 2018: 7.5 hr Local video (1080p) playback@150nits: 9 hr
- Models with 45Wh battery: MobileMark 2018: 9 hr Local video (1080p) playback@150nits: 11 hr
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Design
Display
Display**[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Color Gamut |
| 15.6" | FHD (1920x1080) | None | TN | 250 nits | Anti-glare | 16:9 | 45% NTSC |
| 15.6" | FHD (1920x1080) | None | IPS | 300 nits | Anti-glare | 16:9 | 45% NTSC |
| 15.6" | FHD (1920x1080) | Multi-touch | IPS | 300 nits | Anti-glare | 16:9 | 45% NTSC |
Notes:
- California Electronic Waste Recycling Fee In California USA, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, please go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 69 x 104 mm (2.72 x 4.09 inches)
Mechanical
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
WLAN + Bluetooth®**[1]
- 802.11ac 2x2 Wi-Fi® + Bluetooth 5.0, M.2 card
- Wi-Fi 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Standard Ports
- 1x USB 2.0
- 1x USB 3.2 Gen 1
- 1x USB-C® 3.2 Gen 1 (support data transfer only)
- 1x HDMI 1.4b
- 1x Card reader
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
Security & Privacy
Service
Warranty[1]
Base Warranty**
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 2-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) courier or carry-in service
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Feature with *** means that one or more offerings listed under the feature could be configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
