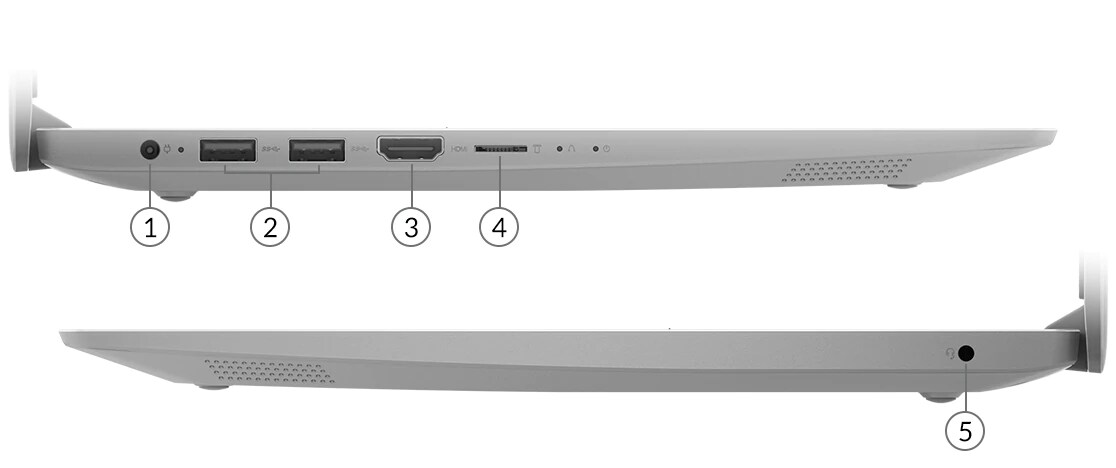

Overview
1. Power connector | 4. MicroSD card reader |
2. 2x USB 3.2 Gen 1 | 5. Headphone / microphone combo jack (3.5mm) |
3. HDMI 1.4 |
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD 3020e | 2 | 2 | 1.2GHz | 2.6GHz | 1MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon™ Graphics |
| AMD Athlon Silver 3050e | 2 | 4 | 1.4GHz | 2.8GHz | 1MB L2 / 4MB L3 | DDR4-2400 | AMD Radeon Graphics |
Operating System
Operating System**
- Windows® 11 Home 64
- Windows 11 Home in S mode
- Windows 10 Pro 64
- Windows 10 Home 64
- Windows 10 Home in S mode
- FreeDOS
- No operating system
Graphics
Monitor Support
Monitor Support
Supports up to 2 independent displays (native display and 1 external monitor via HDMI®)
• HDMI supports up to 3840x2160@30Hz
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
- System has one eMMC on systemboard or one M.2 2242 SSD exclusively
Removable Storage
Multi-Media
Battery
Notes:
- All battery life claims are approximate maximum and based on results using the MobileMark 2014, MobileMark 2018, JEITA 2.0, continuous 1080p video playback (with 150nits brightness and default volume level) or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary and depends on many factors such as product configuration and usage, software use, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time and use.
Power Adapter
Notes:
- AC adapter offerings depend on the country.
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Color Gamut |
| 11.6" | HD (1366x768) | None | TN | 250 nits | Anti-glare | 16:9 | 45% NTSC |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 59 x 89 mm (2.32 x 3.5 inches)
Mechanical[1]
Notes:
- The system dimensions and weight vary depending on configurations.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
Ports[1]
Standard Ports
- 2x USB 3.2 Gen 1
- 1x HDMI 1.4
- 1x Card reader
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
Security & Privacy
Service
Warranty
Base Warranty**[1]
- 1-year mail-in service
- 1-year depot service
- 1-year depot with 2-year system board service (Korea only)
- 2-year (1-yr battery) depot service
Notes:
- More information of warranty policy, please access https://pcsupport.lenovo.com/warranty
Environmental
Operating Environment
Temperature[1]
- At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)
- At altitudes above 2438 m (8,000 ft) - Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
Humidity
- Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
- Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)
Notes:
- When you charge the battery, its temperature must be no lower than 10°C (50°F).
Certifications
- Feature with ** means that only one offering listed under the feature is configured on selected models.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
