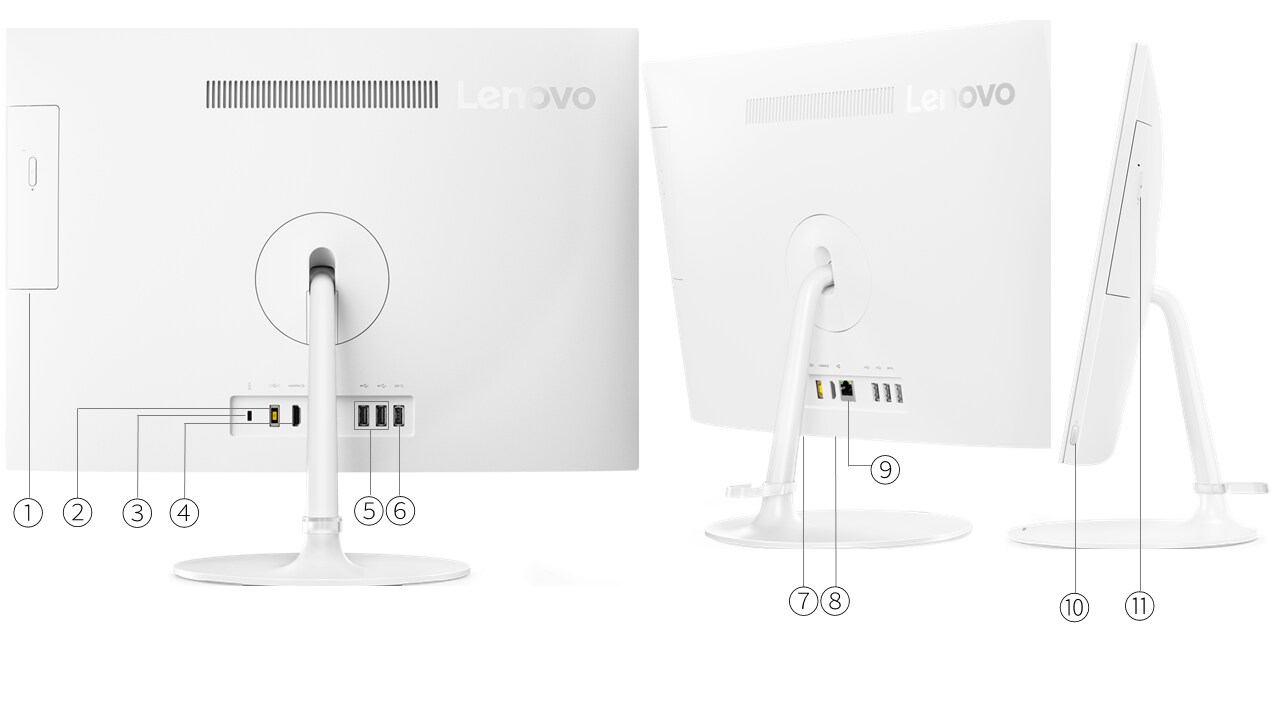

Overview
1. Optical drive * | 7. Headphone / microphone combo jack (3.5mm) |
2. Power connector | 8. Card reader |
3. Kensington Security Slot | 9. Ethernet (RJ-45) |
4. HDMI 1.4 | 10. Power button |
5. 2x USB 2.0 | 11. Optical drive eject button |
6. USB 3.1 Gen 1 |
Notes:
- Ports with * are only available on selected models
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD E2-9000 | 2 | 2 | 1.8GHz | 2.2GHz | 1MB L2 | DDR4-1866 | AMD Radeon™ R2 Graphics |
| AMD A4-9125 | 2 | 2 | 2.3GHz | 2.6GHz | 1MB L2 | DDR4-2133 | AMD Radeon R3 Graphics |
| AMD A6-9200 | 2 | 2 | 2.0GHz | 2.8GHz | 1MB L2 | DDR4-1866 | AMD Radeon R4 Graphics |
| AMD A6-9225 | 2 | 2 | 2.6GHz | 3.1GHz | 1MB L2 | DDR4-2133 | AMD Radeon R4 Graphics |
Operating System
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel® RST RAID, Human Presence Detection, etc.
Graphics
Graphics[1]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features |
| AMD Radeon R2 Graphics | Integrated | Shared | 1x HDMI® 1.4 | 1920x1080@60Hz(HDMI) | DirectX® 12 |
| AMD Radeon R3 Graphics | Integrated | Shared | 1x HDMI 1.4 | 1920x1080@60Hz(HDMI) | DirectX 12 |
| AMD Radeon R4 Graphics | Integrated | Shared | 1x HDMI 1.4 | 1920x1080@60Hz(HDMI) | DirectX 12 |
Notes:
- The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
- Installed memory is actually 2400MHz, but may run at 1866MHz or 2133MHz depending on the memory support capability of processor
Storage
Storage Support[1]
- Models with SSD: up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 128GB
- Models without SSD: up to one drive, 2.5" HDD up to 1TB
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Power Supply
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 19.5" | WXGA+ (1440x900) | None | IPS | 250 nits | Anti-glare | 16:10 | 1000:1 | - | horizontal: +/- 89°, vertical: +/- 89° | Anti-glare |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Keyboard
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Keyboard (USB connector), white
- No keyboard folio
Mechanical
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
- M.2 SSD slot only comes with pre-configured SSD models.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitation
Ports[1]
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s
- For video ports on discrete graphics, please see graphics section
Security & Privacy
Service
Warranty[1]
Base Warranty
- 1-year mail-in service
- 1-year depot service
- 1-year limited onsite service
- 2-year depot service
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
