ideacentre 720-18ICB Last Modify Time: 2021-07-07 15:08:36
Overview
Performance
Processor
Processor Family
Processor
Operating System
Operating System
Graphics
Graphics
Monitor Support
Monitor Support
Chipset
Chipset
Memory
Max Memory
Memory Slots
Memory Type
Memory Protection
Storage
Storage Support
Storage Type
RAID
Removable Storage
Optical
Card Reader
Multi-Media
Audio Chip
Speakers
Microphone
Camera
Power Supply
Power Supply
Design
Input Device
Keyboard
Mouse
Mechanical
Buttons
Form Factor
Dimensions (WxDxH)
Weight
Case Color
Bays
Expansion Slots
Cooling System (Fan & Cooler)
Connectivity
Network
Onboard Ethernet
WLAN + Bluetooth
Ports
Front Ports
Optional Front Ports
Rear Ports
Security & Privacy
Security
Physical Locks
BIOS Security
Manageability
System Management
System Management
Service
Warranty
Base Warranty
Environmental
Operating Environment
Temperature
Humidity
Altitude
Certifications
Green Certifications
Green Certifications

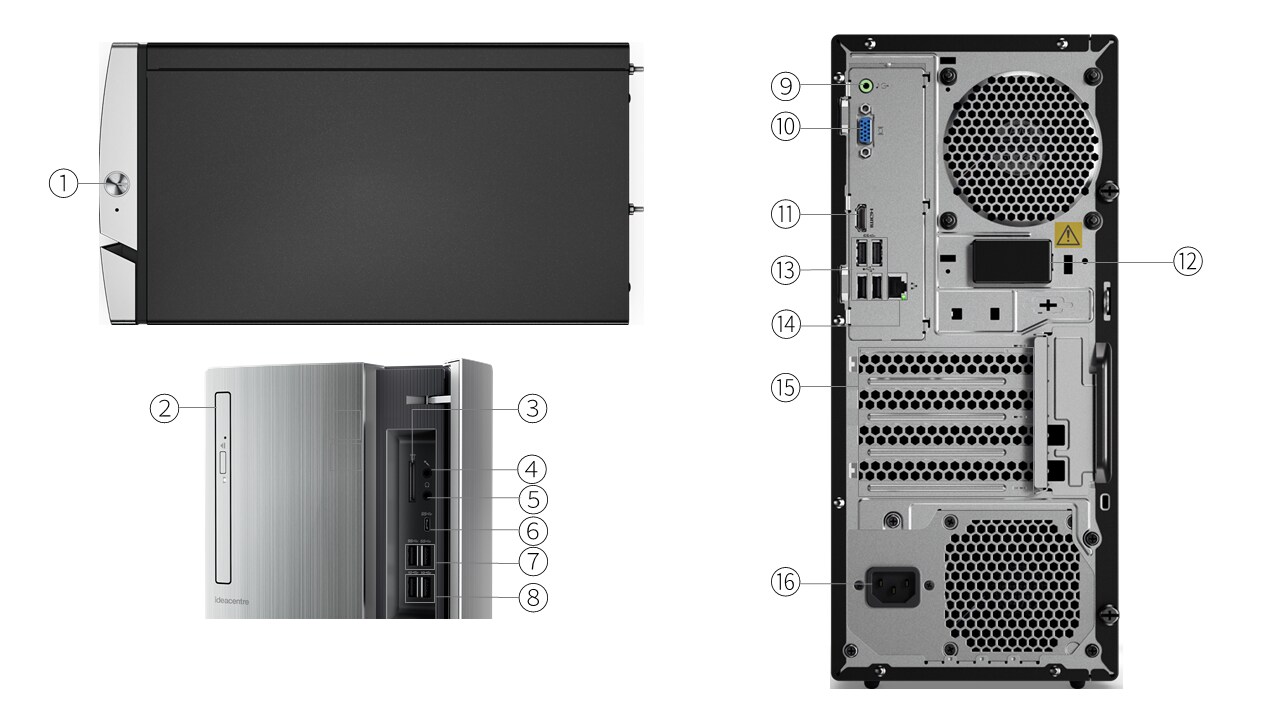

Overview

1.
Power button
9.
Headphone (3.5mm)
2.
Optical drive *
10.
VGA
3.
Card reader *
11.
HDMI 1.4
4.
Microphone (3.5mm)
12.
Wi-Fi antenna
5.
Headphone / microphone combo jack (3.5mm)
13.
4x USB 2.0
6.
USB-C 3.1 Gen 1
14.
Ethernet (RJ-45)
7.
2x USB 3.1 Gen 1
15.
Optional ports on expansion cards
8.
2x USB 3.1 Gen 2
16.
Power connector
Notes:
  • Ports with * are only available on selected models
  • More ports are available through the optional expansion cards (not shown on the sample product above)

Performance

Processor

Processor Family

Intel® Celeron®, Intel Pentium®, 8th Generation Intel Core™ i3 / i5 / i7, or 9th Generation Intel Core i3 / i5 / i7 / i9 Processor

Processor

Processor NameCoresThreadsBase FrequencyMax FrequencyCacheMemory SupportProcessor Graphics
Celeron G4900223.1GHz-2MBDDR4-2400Intel UHD Graphics 610
Celeron G4930223.2GHz-2MBDDR4-2400Intel UHD Graphics 610
Pentium Gold G5400243.7GHz-4MBDDR4-2400Intel UHD Graphics 610
Pentium Gold G5420243.8GHz-4MBDDR4-2400Intel UHD Graphics 610
Core i3-8100443.6GHz-6MBDDR4-2400Intel UHD Graphics 630
Core i3-9100443.6GHz4.2GHz6MBDDR4-2400Intel UHD Graphics 630
Core i5-8400662.8GHz4.0GHz9MBDDR4-2666Intel UHD Graphics 630
Core i5-9400662.9GHz4.1GHz9MBDDR4-2666Intel UHD Graphics 630
Core i5-9400F662.9GHz4.1GHz9MBDDR4-2666-
Core i7-87006123.2GHz4.6GHz12MBDDR4-2666Intel UHD Graphics 630
Core i7-9700883.0GHz4.7GHz12MBDDR4-2666Intel UHD Graphics 630
Core i7-9700F883.0GHz4.7GHz12MBDDR4-2666-

Operating System

Operating System

  • Windows® 10 Pro 64
  • Windows 10 Home 64
  • FreeDOS
  • No operating system

Graphics

Graphics[1]

GraphicsTypeMemoryConnectorMax ResolutionKey Features
Intel UHD graphics 610IntegratedShared1x HDMI® 1.4, 1x VGA-DirectX® 12
Intel UHD graphics 630IntegratedShared1x HDMI 1.4, 1x VGA-DirectX 12
AMD Radeon™ RX 550Discrete2GB GDDR51x HDMI 2.0, 1x VGA, 1x DP 1.4-DirectX 12
AMD Radeon RX 550XDiscrete4GB GDDR51x HDMI 2.0, 1x VGA, 1x DP 1.44096x2160@60Hz(HDMI), 2048x1536@60Hz(VGA), 5120x2880@60Hz(DP)DirectX 12
AMD Radeon RX 560Discrete4GB GDDR51x HDMI 2.0, 1x DP 1.4, 1x DVI4096x2160@60Hz(HDMI), 5120x2880@60Hz(DP), 2560x1600@60Hz(DVI)DirectX 12
NVIDIA® GeForce® GT 730Discrete2GB GDDR51x HDMI 1.4, 1x VGA-DirectX 12
NVIDIA GeForce GTX 1050Discrete4GB GDDR51x HDMI 2.0, 1x DP 1.4, 1x DVI4096x2160@60Hz(HDMI), 7680x4320@60Hz(DP), 2560x1600@60Hz(DVI)DirectX 12
NVIDIA GeForce GTX 1060Discrete6GB GDDR51x HDMI 2.0, 1x DVI, 3x DP 1.34096x2160@60Hz(HDMI), 7680x4320@60Hz(DP), 2560x1600@60Hz(DVI)DirectX 12
NVIDIA GeForce GTX 1650Discrete4GB GDDR61x HDMI 2.0, 1x DVI, 1x DP 1.4-DirectX 12
Notes:
  • The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)

Monitor Support

Monitor Support

Supports up to 2 independent displays via onboard ports (VGA and HDMI), more displays support via discrete graphics

Chipset

Chipset

Intel B360 chipset

Memory

Max Memory[1]

Up to 32GB DDR4-2666

Memory Slots

Two DDR4 UDIMM slots, dual-channel capable

Memory Type[2]

DDR4-2666

Memory Protection

Non-ECC
Notes:
  • The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
  • Installed memory is actually 2666MHz, but may run at 2400MHz or 2666MHz depending on the memory support capability of processor

Storage

Storage Support

Up to three drives, 2x 3.5" HDD + 1x M.2 SSD • 3.5" HDD up to 2TB each • M.2 SSD up to 1TB

Storage Type

Disk TypeInterfaceRPMSecurity
3.5" SATA HDDSATA 6Gb/s7.2K-
M.2 2242 SSDPCIe® NVMe®, PCIe 3.0 x2--
M.2 2280 SSDPCIe NVMe, PCIe 3.0 x4--
Intel Optane™ Memory M10PCIe NVMe, PCIe 3.0 x2--

RAID

No support

Removable Storage

Optical

  • DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm)
  • None

Card Reader

  • 7-in-1 card reader (SD, SDHC, SDXC, MMC, MS, MS-Pro, MMC plus)
  • No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC662 codec

Speakers

No speakers

Microphone

No microphone

Camera

No camera

Power Supply

Power Supply

PowerTypeEfficiencyKey Features
180WFixed-100V - 240V
250WFixed-100V - 240V
400WFixed-100V - 240V

Design

Input Device

Keyboard

  • Lenovo Calliope Keyboard (USB connector), black
  • Lenovo Calliope Keyboard (USB connector), silver
  • Lenovo Calliope Wireless Keyboard, black
  • Lenovo Calliope Wireless Keyboard, silver
  • No keyboard

Mouse

  • Lenovo Calliope Mouse (USB connector), black
  • Lenovo Calliope Mouse (USB connector), silver
  • Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), silver
  • No mouse

Mechanical

Buttons

  • Power button
  • Optical drive eject button (ODD models only)

Form Factor

Tower (18L)

Dimensions (WxDxH)

ModelsDimensions
All models165 x 324 x 376 mm (6.5 x 12.76 x 14.8 inches)

Weight

ModelsWeight
All models8 kg (17.64 lbs)

Case Color

Black

Bays

  • 1x 3.5" disk bay
  • 1x slim ODD bay
  • 1x 5.25" ODD / optional front access HDD

Expansion Slots

  • One PCIe 3.0 x1, full height, full length
  • One PCIe 3.0 x16, full height, full length
  • Two M.2 slots (one for WLAN, one for SSD)

Cooling System (Fan & Cooler)

(Optional) 1x front system fan, 1x rear system fan

Connectivity

Network

Onboard Ethernet

Gigabit Ethernet, 1x RJ45

WLAN + Bluetooth®

  • 802.11ac 1x1 Wi-Fi® + Bluetooth 4.0, M.2 card
  • 802.11ac 2x2 Wi-Fi + Bluetooth 4.0, M.2 card
  • No WLAN and Bluetooth

Ports[1]

Front Ports

  • 2x USB 3.1 Gen 1
  • 2x USB 3.1 Gen 2
  • 1x USB-C 3.2 Gen 1 (support data transfer and 5V@3A charging)
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x microphone (3.5mm)

Optional Front Ports

1x card reader

Rear Ports[2]

  • 4x USB 2.0
  • 1x VGA
  • 1x HDMI 1.4
  • 1x Ethernet (RJ-45)
  • 1x headphone (3.5mm)
  • 1x power connector
Notes:
  • The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
  • For video ports on discrete graphics, please see graphics section

Security & Privacy

Security

Physical Locks

  • Kensington® Security Slot
  • No physical locks

BIOS Security

  • Administrator password
  • Power-on password
  • Hard disk password

Manageability

System Management

System Management

None

Service

Warranty

Base Warranty

  • 1-year depot or mail-in service
  • 1-year limited onsite service
  • 2-year depot service

Environmental

Operating Environment

Temperature

  • Operating: 5°C (41°F) to 35°C (95°F)
  • Storage: -20°C (-4°F) to 60°C (140°F)

Humidity

  • Operating: 20% to 80%
  • Storage: 10% to 90%

Altitude

  • Operating: -15.2 m (-50 ft) to 3048 m (10,000 ft)
  • Storage: -15.2 m (-50 ft) to 12192 m (40,000 ft)

Certifications

Green Certifications

Green Certifications

  • ErP Lot 3
  • RoHS compliant
  • Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
  • The specifications on this page may not be available in all regions, and may be changed or updated without notice.
