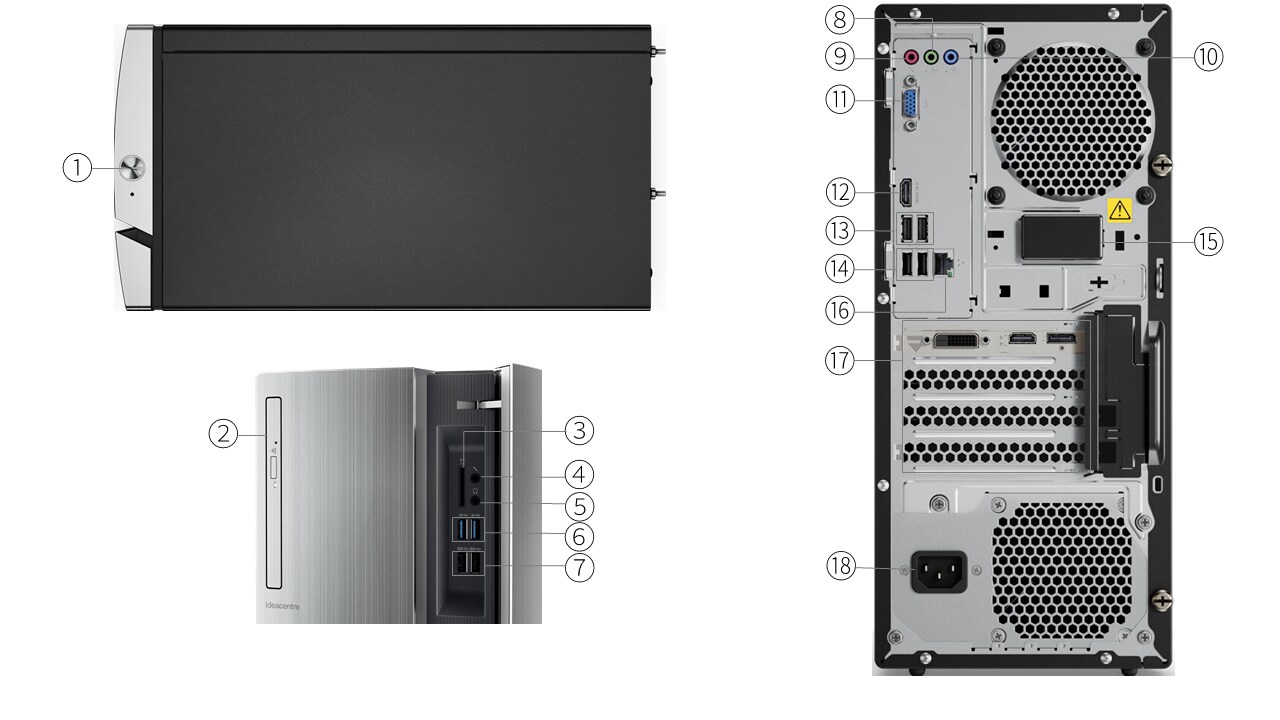

Overview
1. Power button | 10. Line-out (3.5mm) |
2. Optical drive * | 11. VGA |
3. Card reader * | 12. HDMI 1.4 |
4. Microphone (3.5mm) | 13. 2x USB 3.1 Gen 1 |
5. Headphone (3.5mm) | 14. 2x USB 2.0 |
6. 2x USB 3.1 Gen 2 | 15. Wi-Fi antenna * |
7. 2x USB 3.1 Gen 1 | 16. Optional ports on expansion cards |
8. Line-in (3.5mm) | 17. Ethernet (RJ-45) |
9. Microphone (3.5mm) | 18. Power connector |
Notes:
- Ports with * are only available on selected models
- More ports are available through the optional expansion cards (not shown on the sample product above)
Performance
Processor
Processor
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
| AMD Ryzen 3 2200G | 4 | 4 | 3.5GHz | 3.7GHz | 2MB L2 / 4MB L3 | DDR4-2993 | AMD Radeon™ Vega 8 Graphics |
| AMD Ryzen 5 2400G | 4 | 8 | 3.6GHz | 3.9GHz | 2MB L2 / 4MB L3 | DDR4-2933 | AMD Radeon RX Vega 11 Graphics |
| AMD Ryzen 5 2600 | 6 | 12 | 3.4GHz | 3.9GHz | 3MB L2 / 16MB L3 | DDR4-2933 | - |
| AMD Ryzen 7 2700 | 8 | 16 | 3.2GHz | 4.1GHz | 4MB L2 / 16MB L3 | DDR4-2933 | - |
Operating System
Graphics
Graphics[1]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features |
| AMD Radeon Vega 8 Graphics | Integrated | Shared | 1X HDMI® 1.4, 1x VGA | - | DirectX® 12 |
| AMD Radeon Vega 11 Graphics | Integrated | Shared | 1x HDMI 1.4, 1x VGA | - | DirectX 12 |
| AMD Radeon RX 550 | Discrete | 2GB GDDR5 | 1x HDMI 2.0, 1x DP 1.4, 1x DVI | - | DirectX 12 |
| AMD Radeon RX 550 | Discrete | 4GB GDDR5 | 1x HDMI 2.0, 1x DP 1.4, 1x DVI | - | DirectX 12 |
| AMD Radeon RX 550X | Discrete | 4GB GDDR5 | 1x HDMI 2.0, 1x VGA, 1x DP 1.4 | 4096x2160@60Hz(HDMI), 2048x1536@60Hz(VGA), 5120x2880@60Hz(DP) | DirectX 12 |
| AMD Radeon RX 570 | Discrete | 4GB GDDR5 | 1x HDMI 2.0, 3x DP 1.4 | - | VR ready, DirectX 12 |
| NVIDIA® GeForce® GTX 1050 Ti | Discrete | 4GB GDDR5 | 1x HDMI, 1x DP, 1x DVI | 4096x2160@60Hz(HDMI), 7680x4320@60Hz(DP), 2560x1600@60Hz(DVI) | DirectX 12 |
Notes:
- The information of integrated graphics are not applicable for the models without integrated graphics (for the details, please refer to processor section)
Monitor Support
Monitor Support
Supports up to 2 independent displays via onboard ports (VGA and HDMI), more displays support via discrete graphics
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Storage Type
| Disk Type | Interface | RPM | Security |
| 3.5" SATA HDD | SATA 6Gb/s | 7.2K | - |
| M.2 2242 SSD | PCIe® NVMe® | - | - |
| M.2 2280 SSD | PCIe NVMe | - | - |
Removable Storage
Multi-Media
Power Supply
Design
Input Device
Keyboard
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Keyboard (USB connector), silver
- No keyboard
Mouse
- Lenovo Calliope Mouse (USB connector), black
- Lenovo Calliope Mouse (USB connector), silver
- No mouse
Mechanical
Connectivity
Network
Ports[1]
Rear Ports[2]
- 2x USB 2.0
- 2x USB 3.1 Gen 1
- 1x VGA
- 1x HDMI 1.4
- 1x Ethernet (RJ-45)
- 1x line-in (3.5mm)
- 1x line-out (3.5mm)
- 1x microphone (3.5mm)
- 1x power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
- For video ports on discrete graphics, please see graphics section
Security & Privacy
Service
Environmental
Certifications
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
