IdeaCentre Tower 08IAS10 Last Modify Time: 2025-08-29 09:47:30
Overview
Performance
Processor
Processor Family
Operating System
Operating System
Monitor Support
Monitor Support
Chipset
Chipset
Memory
Max Memory
Memory Slots
Memory Type
Memory Protection
Storage
Max Storage Support
Storage Type
RAID
Removable Storage
Optical
Card Reader
Multi-Media
Audio Chip
Speakers
Power Supply
Power Supply
Design
Input Device
Keyboard
Mouse
Mechanical
Form Factor
Dimensions (WxDxH)
Packaging Dimensions (WxDxH)
Weight
Packaging Weight
Case Color
Bays
Expansion Slots
Stand
Connectivity
Network
WLAN + Bluetooth
Onboard Ethernet
Ports
Front Ports
Rear Ports
Security & Privacy
Security
Security Chip
BIOS Security
Service
Warranty
Base Warranty
Operating Requirements
Operating Environment
Temperature
Relative Humidity
Altitude
Certifications
Green Certifications
Green Certifications

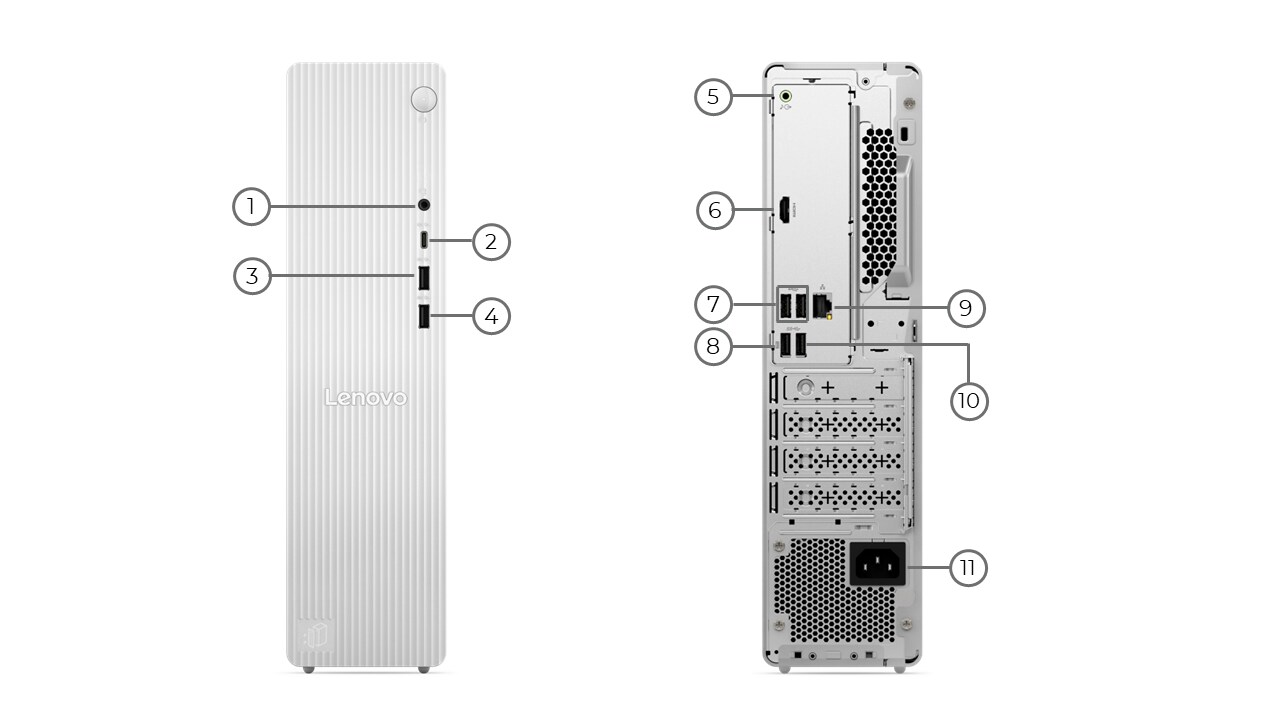

Overview

1.1x headphone / microphone combo jack (3.5mm)7.2x USB-A (Hi-Speed USB)
2.1x USB-C (USB 5Gbps), with 15W charging8.1x USB-A (USB 5Gbps), with Smart Power On
3.1x USB-A (USB 5Gbps)9.1x Ethernet (RJ-45)
4.1x USB-A (USB 5Gbps)10.1x USB-A (USB 5Gbps)
5.1x Audio-out (3.5mm)11.1x Power connector
6.1x HDMI 2.1 TMDS

Performance

Processor

Processor Family

Intel® Core™ Ultra 3 / 5 / 7 Processor (Series 2)

Operating System

Operating System

  • Windows® 11 Pro
  • Windows® 11 Home
  • Windows® 11 Home Single Language
  • No preload operating system

Monitor Support

Monitor Support

Supports 1 display via onboard HDMI® 2.1 TMDS

Chipset

Chipset

Intel® B860 chipset

Memory

Max Memory[1]

Up to 32GB DDR5-5600

Memory Slots

Two DDR5 UDIMM slots, dual-channel capable

Memory Type

DDR5-5600

Memory Protection

Non-ECC
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.

Storage

Max Storage Support[1]

Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 1TB each

Storage Type

Disk TypeInterfaceRPM
3.5" SATA HDDSATA 6Gb/s7.2K
M.2 SSDPCIe® NVMe®-

RAID

No support
Notes:
[1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.

Removable Storage

Optical

None

Card Reader

No card reader

Multi-Media

Audio Chip

  • High Definition (HD) Audio, Realtek® ALC623-CG codec
  • 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback
  • 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

Speakers

No speakers

Power Supply

Power Supply

PowerTypeEfficiencyKey Features
200WFixed90%100-240V, 50-60Hz
260WFixed90%100-240V, 50-60Hz

Design

Input Device

Keyboard

  • Lenovo® Calliope Keyboard (USB connector), cloud grey
  • Lenovo® Calliope Keyboard (USB connector), luna grey
  • No keyboard

Mouse

  • No mouse
  • Lenovo® Calliope Mouse (USB connector), Cloud Grey
  • Lenovo® Calliope Mouse (USB connector), Luna Grey

Mechanical

Form Factor

SFF (8.2L)

Dimensions (WxDxH)[1]

89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches)

Packaging Dimensions (WxDxH)

195 x 395 x 530 mm (7.7 x 15.6 x 20.9 inches)

Weight[2]

Around 4.52 kg (9.96 lbs)

Packaging Weight

All models: Around 5.5 kg (12.12 lbs)

Case Color

  • Cloud grey
  • Luna grey

Bays

1x 3.5" disk bay

Expansion Slots

Three M.2 slots (one for WLAN, two for SSD)

Stand

  • Vertical stand
  • No stand
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®

  • Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
  • Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
  • Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card

Onboard Ethernet

Gigabit Ethernet, 1x RJ-45

Ports[1]

Front Ports

  • 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1)
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x headphone / microphone combo jack (3.5mm)

Rear Ports

  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
  • 2x USB-A (Hi-Speed USB / USB 2.0)
  • 1x HDMI® 2.1 TMDS
  • 1x Ethernet (RJ-45)
  • 1x audio-out (3.5mm)
  • 1x power connector
Notes:
[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in chipset

BIOS Security

  • Administrator password
  • Hard disk password
  • Boot sequence control

Service

Warranty[1]

Base Warranty

  • 1-year mail-in service
  • 1-year courier or carry-in service
  • 1-year limited onsite service
  • 2-year courier or carry-in service
  • 3-year courier or carry-in service
Notes:
[1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.

Operating Requirements

Operating Environment

Temperature

  • Operating: 5°C (41°F) to 35°C (95°F)
  • Storage: -40°C (-40°F) to 60°C (140°F)

Relative Humidity

  • Operating: 20% to 80% (non-condensing)
  • Storage: 10% to 90% (non-condensing)

Altitude

  • Operating: 0 m (0 ft) to 3048 m (10,000 ft)
  • Storage: 0 m (0 ft) to 12192 m (40,000 ft)

Certifications

Green Certifications[1]

Green Certifications

  • ErP Lot 3
  • RoHS compliant
Notes:
[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.
  • Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
  • The specifications on this page may not be available in all regions, and may be changed or updated without notice.
