IdeaCentre Tower 08AKP10 Last Modify Time: 2025-05-23 10:05:58
Overview
Performance
Processor
Processor Family
Processor
AI (Artificial Intelligence)
AI PC Category
NPU
Operating System
Operating System
Graphics
Graphics
Monitor Support
Monitor Support
Chipset
Chipset
Memory
Max Memory
Memory Slots
Memory Type
Storage
Storage Support
Storage Type
Removable Storage
Optical
Card Reader
Multi-Media
Audio Chip
Speakers
Power Supply
Power Supply
Design
Input Device
Keyboard
Mouse
Mechanical
Form Factor
Dimensions (WxDxH)
Packaging Dimensions (WxDxH)
Weight
Packaging Weight
Case Color
Bays
Expansion Slots
Stand
Connectivity
Network
WLAN + Bluetooth
Onboard Ethernet
Ports
Front Ports
Rear Ports
Security & Privacy
Security
Security Chip
BIOS Security
Service
Warranty
Base Warranty
Operating Requirements
Operating Environment
Temperature
Relative Humidity
Altitude
Certifications
Green Certifications
Green Certifications

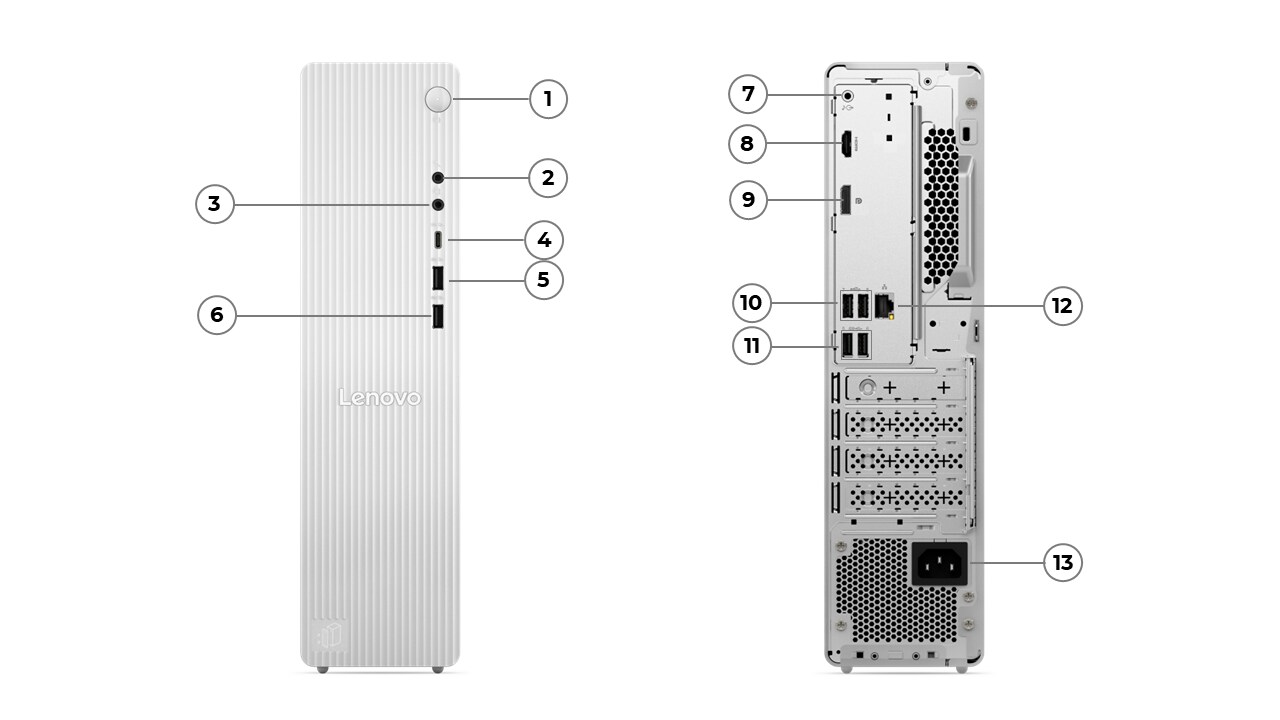

Overview

1.Power button8.1x HDMI 2.1 TMDS
2.1x Microphone (3.5mm)9.1x DisplayPort 1.4
3.1x headphone / microphone combo jack (3.5mm)10.2x USB-A (Hi-Speed USB)
4.1x USB-C (USB 5Gbps), with 15W charging11.2x USB-A (USB 5Gbps)
5.1x USB-A (USB 5Gbps)12.1x Ethernet (RJ-45)
6.1x USB-A (USB 5Gbps)13.1x Power connector
7.1x Audio-out (3.5mm)

Performance

Processor

Processor Family

AMD Ryzen™ 5 / 7 200 Series, or AMD Ryzen™ AI 5 / 7 300 Series Processor

Processor**

Processor NameCoresThreadsBase FrequencyMax FrequencyCacheProcessor GraphicsNPU
AMD Ryzen™ 5 2206123.2GHz4.9GHz6MB L2 / 16MB L3AMD Radeon™ 740M-
AMD Ryzen™ 7 2508163.3GHz5.1GHz8MB L2 / 16MB L3AMD Radeon™ 780MAMD Ryzen™ AI
AMD Ryzen™ AI 5 3406122GHz4.8GHz6MB L2 / 16MB L3AMD Radeon™ 840MAMD Ryzen™ AI
AMD Ryzen™ AI 7 3508162GHz5GHz8MB L2 / 16MB L3AMD Radeon™ 860MAMD Ryzen™ AI

AI (Artificial Intelligence)

AI PC Category**

  • Non-AI PC
  • Copilot+ PC (models with AMD Ryzen™ AI 5 / 7 300 Series processor)
  • AI PC (models with AMD Ryzen™ 7 250 processor)

NPU**

  • Integrated AMD Ryzen™ AI, up to 50 TOPS
  • Integrated AMD Ryzen™ AI, up to 16 TOPS
  • None

Operating System

Operating System**

  • Windows® 11 Pro
  • Windows® 11 Home

Graphics

Graphics**[1]

GraphicsTypeMemoryMax ResolutionConnectorKey Features
AMD Radeon™ 740MIntegratedShared4096x2160@60Hz(HDMI®), 4096x2160@60Hz(DP)1x DP 1.4, 1x HDMI® 2.1 TMDSDirectX® 12
AMD Radeon™ 780MIntegratedShared4096x2160@60Hz(HDMI®), 4096x2160@60Hz(DP)1x DP 1.4, 1x HDMI® 2.1 TMDSDirectX® 12
AMD Radeon™ 860MIntegratedShared4096x2160@60Hz(HDMI®), 4096x2160@60Hz(DP)1x DP 1.4, 1x HDMI® 2.1 TMDSDirectX® 12
Notes:
[1] The information of integrated graphics are not applicable for the models with processor which has no integrated graphics inside (for the details, please refer to processor section).

Monitor Support

Monitor Support

Supports up to 2 independent displays via onboard ports (DP + HDMI®)

Chipset

Chipset

AMD SoC (System on Chip) platform

Memory

Max Memory[1]

Up to 32GB DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Memory Type

DDR5-5600
Notes:
[1] The max memory is based on the test results with current Lenovo® memory offerings.

Storage

Storage Support[1]

Up to three drives, 1x 3.5" SATA HDD + 2x M.2 SSD • 3.5" SATA HDD up to 2TB • M.2 SSD up to 1TB each

Storage Type***

Disk TypeInterfaceRPM
3.5" SATA HDDSATA 6Gb/s7.2K
M.2 SSDPCIe® NVMe®-
Notes:
[1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.

Removable Storage

Optical

None

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC623 codec

Speakers

No speakers

Power Supply

Power Supply**

PowerTypeEfficiencyKey Features
200WFixed90%100-240V, 50-60Hz
260WFixed90%100-240V, 50-60Hz

Design

Input Device

Keyboard**

  • Lenovo® Calliope Keyboard (USB connector), cloud grey
  • Lenovo® Calliope Keyboard (USB connector), luna grey
  • No keyboard

Mouse**

  • Lenovo® Fingerprint Mouse (USB connector), black
  • No mouse
  • Lenovo® Calliope Mouse (USB connector), Cloud Grey
  • Lenovo® Calliope Mouse (USB connector), Luna Grey

Mechanical

Form Factor

SFF (8.2L)

Dimensions (WxDxH)[1]

89 x 274.8 x 336 mm (3.5 x 10.83 x 13.24 inches)

Packaging Dimensions (WxDxH)

195 x 395 x 530 mm (7.7 x 15.6 x 20.9 inches)

Weight[2]

4.13 kg (9.11 lbs)

Packaging Weight

All models: Around 5.04 kg (11.11 lbs)

Case Color**

  • Cloud grey
  • Luna grey

Bays

1x 3.5" disk bay

Expansion Slots

  • One PCIe® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
  • Three M.2 slots (one for WLAN, two for SSD)

Stand

  • Vertical stand
  • No stand
Notes:
[1] The system dimensions may vary depending on configurations.
[2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth®**

  • Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
  • Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card

Onboard Ethernet

Gigabit Ethernet, 1x RJ-45

Ports[1]

Front Ports

  • 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x microphone (3.5mm)

Rear Ports[2]

  • 2x USB-A (Hi-Speed USB / USB 2.0)
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x HDMI® 2.1 TMDS
  • 1x DisplayPort™ 1.4a
  • 1x Ethernet (RJ-45)
  • 1x audio-out (3.5mm)
Notes:
[1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.
[2] For video ports on discrete graphics, please see graphics section.

Security & Privacy

Security

Security Chip

Firmware TPM 2.0 integrated in SoC

BIOS Security

  • Administrator password
  • Hard disk password
  • Power-on password

Service

Warranty[1]

Base Warranty

1-year limited onsite service
Notes:
[1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.

Operating Requirements

Operating Environment

Temperature

  • Operating: 5°C (41°F) to 35°C (95°F)
  • Storage: -40°C (-40°F) to 60°C (140°F)

Relative Humidity

  • Operating: 20% to 80%
  • Storage: 20% to 90%

Altitude

  • Operating: -15.2 m (-50 ft) to 3048 m (10,000 ft)
  • Storage: -15.2 m (-50 ft) to 10668 m (35,000 ft)

Certifications

Green Certifications[1]

Green Certifications

  • ErP Lot 3
  • RoHS compliant
Notes:
[1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.
  • Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
  • Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
  • The specifications on this page may not be available in all regions, and may be changed or updated without notice.
