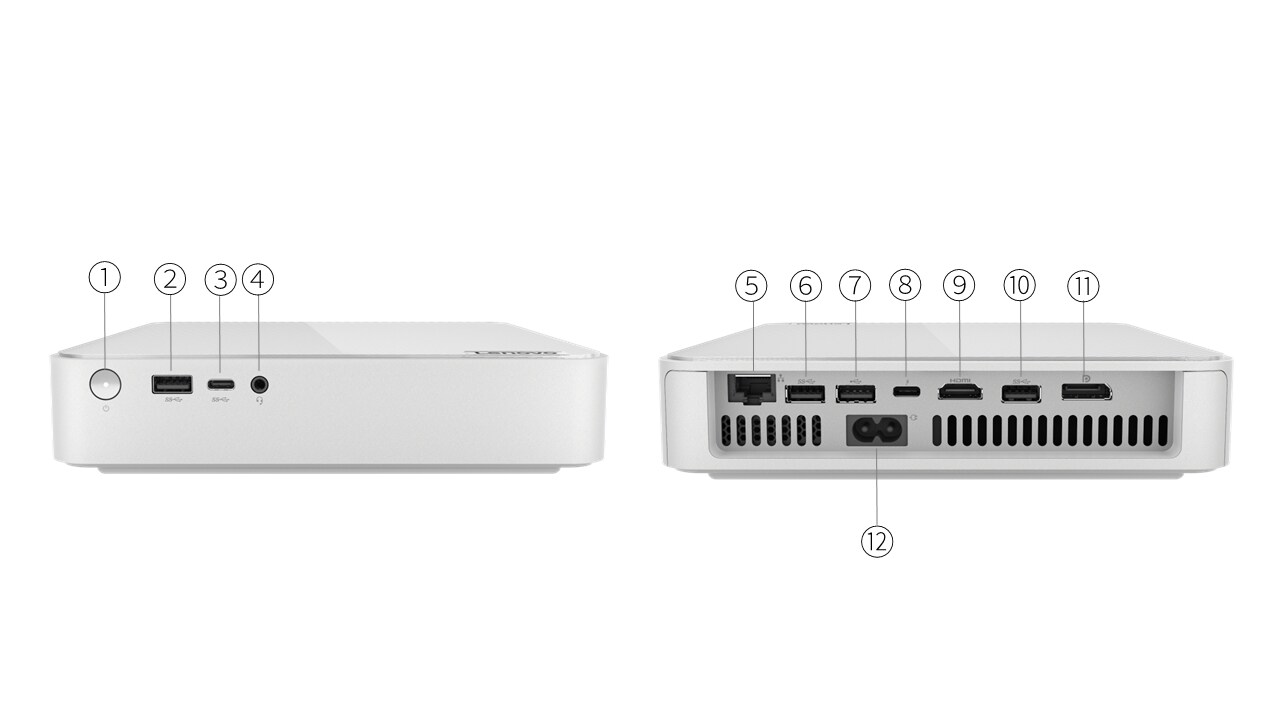

Overview
1. Power button | 7. USB 2.0 |
2. USB 3.2 Gen 2 (Always On) | 8. Thunderbolt 4 |
3. USB-C 3.2 Gen 2 | 9. HDMI 2.1 TMDS |
4. Headphone / microphone combo jack (3.5mm) | 10. USB 3.2 Gen 2 |
5. Ethernet (RJ-45) | 11. DisplayPort 1.4 |
6. USB 3.2 Gen 2 | 12. Power connector |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor
| Processor Name | Cores | Threads | Max Frequency | Cache | Memory Support | Processor Graphics |
| Core i5-13500H | 12 (4 P-core + 8 E-core) | 16 | P-core 4.7GHz / E-core 3.5GHz | 18MB | DDR4-3200 | Intel Iris® Xe Graphics |
| Core i7-13700H | 14 (6 P-core + 8 E-core) | 20 | P-core 5.0GHz / E-core 3.7GHz | 24MB | DDR4-3200 | Intel Iris Xe Graphics |
Operating System
Notes:
- Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, Human Presence Detection, etc.
Graphics
Graphics[1]
| Graphics | Type | Memory | Connector | Max Resolution | Key Features | Remark |
| Intel Iris Xe Graphics | Integrated | Shared | 1x HDMI® 2.1 TMDS 1x DP 1.4 1x Thunderbolt™ 4 | 3840x2160@60Hz(HDMI), 3840x2160@60Hz(DP), 3840x2160@60Hz(Thunderbolt) | DirectX® 12.1 | - |
| Intel UHD Graphics | Integrated | Shared | 1x HDMI 2.1 TMDS 1x DP 1.4 1x Thunderbolt 4 | 3840x2160@60Hz(HDMI), 3840x2160@60Hz(DP), 3840x2160@60Hz(Thunderbolt) | DirectX 12.1 | - |
Notes:
- The information of integrated graphics are not applicable for the models with processor which has no integrated graphics inside (for the details, please refer to processor section)
Monitor Support
Chipset
Memory
Notes:
- The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.
Storage
Notes:
- The storage capacity supported is based on the test results with current Lenovo storage offerings. The system may support larger storage as the technology develops.
Removable Storage
Multi-Media
Power Supply
Design
Input Device
Mechanical
Notes:
- The system dimensions may vary depending on configurations.
- The system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.
Connectivity
Network
Notes:
- Bluetooth 5.2 is hardware ready but may run at a lower version due to OS limitations.
Ports[1]
Rear Ports[2]
- 1x Thunderbolt 4 / USB4® 40Gbps (support data transfer, and DisplayPort™ 1.4)
- 1x HDMI 2.1 TMDS
- 1x DisplayPort 1.4
- 1x USB 2.0
- 1x USB 3.2 Gen 2
- 1x Ethernet (2.5GbE RJ-45)
- 1x power connector
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt 3/4: 40 Gbit/s
- For video ports on discrete graphics, please see graphics section
Security & Privacy
Manageability
Service
Warranty[1]
Base Warranty
- 1-year courier or carry-in service
- 1-year mail-in service
- 1-year limited onsite service
- 2-year courier or carry-in service
- 3-year courier or carry-in service
Notes:
- The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://pcsupport.lenovo.com/warranty.
Environmental
Certifications
Green Certifications[1]
Notes:
- The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
