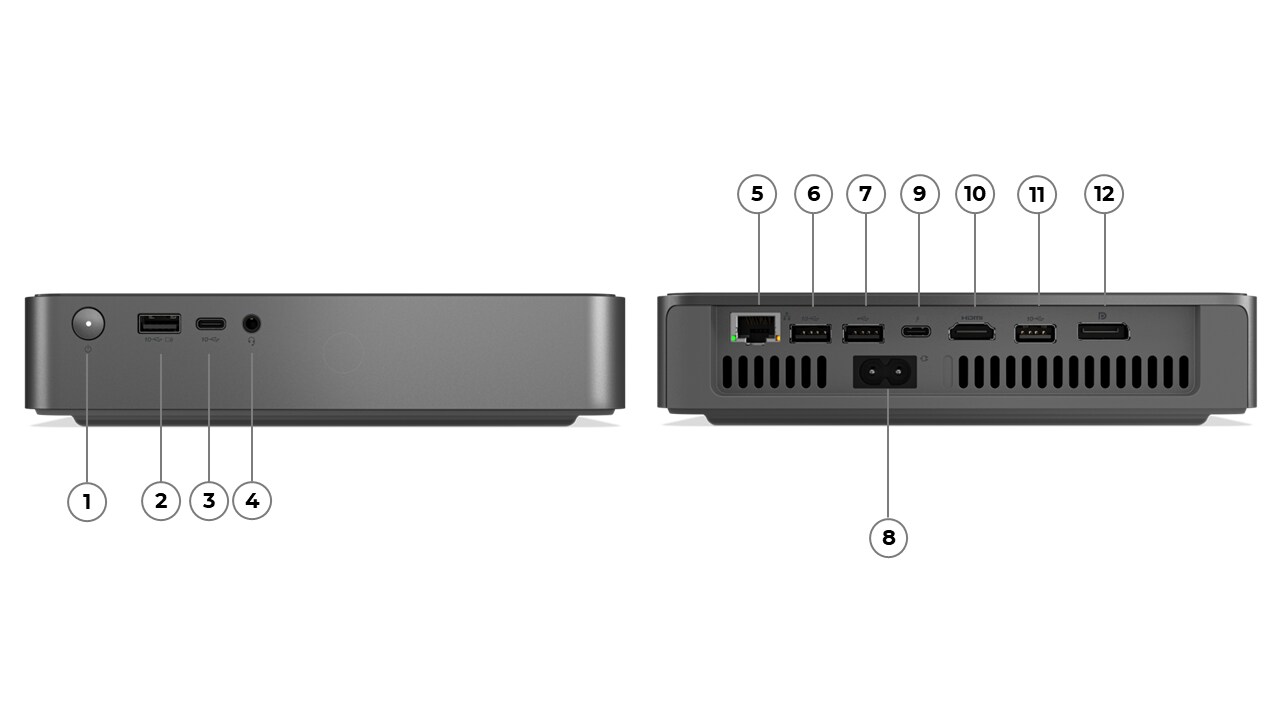

Overview
| 1. | Power button | 7. | 1x USB-A (Hi-Speed USB) |
| 2. | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On | 8. | Power connector |
| 3. | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2) | 9. | 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DP 1.4 |
| 4. | Headphone / microphone combo jack (3.5mm) | 10. | HDMI 2.1 TMDS |
| 5. | Ethernet (RJ-45) | 11. | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) |
| 6. | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) | 12. | 1x DisplayPort 1.4b |
Notes:
- Items with * are only available on selected models
Performance
Processor
Processor**
| Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Processor Graphics |
| Core 5 210H | 8 (4 P-core + 4 E-core) | 12 | P-core 2.2GHz / E-core 1.6GHz | P-core 4.8GHz / E-core 3.6GHz | 12MB | Intel® Graphics |
| Core 7 240H | 10 (6 P-core + 4 E-core) | 16 | P-core 2.5GHz / E-core 1.8GHz | P-core 5.2GHz / E-core 4.0GHz | 24MB | Intel® Graphics |
Operating System
Operating System**
- Windows® 11 Pro
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics
| Graphics | Type | Memory | Max Resolution | Connector | Key Features |
| Intel® Graphics | Integrated | Shared | 4096x2160@60Hz (HDMI®), 4096x2160@60Hz (DP), 4096x2160@60Hz (Thunderbolt™ 4) | 1x HDMI® 2.1 TMDS, 1x DP 1.4b, 1x Thunderbolt™ 4 | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 3 independent displays via onboard ports (DP, HDMI®, and Thunderbolt™)
Chipset
Memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Multi-Media
Power Supply
Design
Input Device
Mechanical
Packaging Dimensions (WxDxH)**
- 238 x 110 x 238 mm (9.37 x 4.33 x 9.37 inches)
- 255 x 102 x 305 mm (10 x 4 x 12 inches) (US, Canada models only)
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Connectivity
Network
WLAN + Bluetooth®
- Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Wi-Fi® 7, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4, M.2 card[1]
Notes:
| [1] The bandwidth of WiFi 7 adapter is 160 MHz. Wi-Fi® 7 operation is subject to the regulation rules in each country.FeatureValue |
Ports[1]
Front Ports
- 1x headphone / microphone combo jack (3.5mm)
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On
Rear Ports
- 1x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x power connector
- 1x DisplayPort™ 1.4b
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 1.4
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security & Privacy
Service
Warranty[1]
Base Warranty**
- 1-year mail-in service
- 1-year courier or carry-in service
- 1-year limited onsite service
- 2-year courier or carry-in service
- 3-year courier or carry-in service
Notes:
| [1] The warranty upgrades may be bundled with some models, please check the "Included upgrade" column in the specific model's configurations. For more service extensions, please go to https://smartfind.lenovo.com/. To learn more details of warranty policy, please access https://support.lenovo.com/warrantylookup/warrantypolicy.StructureLevel2 |
Operating Requirements
Certifications
Green Certifications[1]
Notes:
| [1] The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.StructureLevel2 |
- Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
- Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
- The specifications on this page may not be available in all regions, and may be changed or updated without notice.
